1998 Yamaha YZ80 (YZ80K1) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1998 Yamaha YZ80 (YZ80K1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

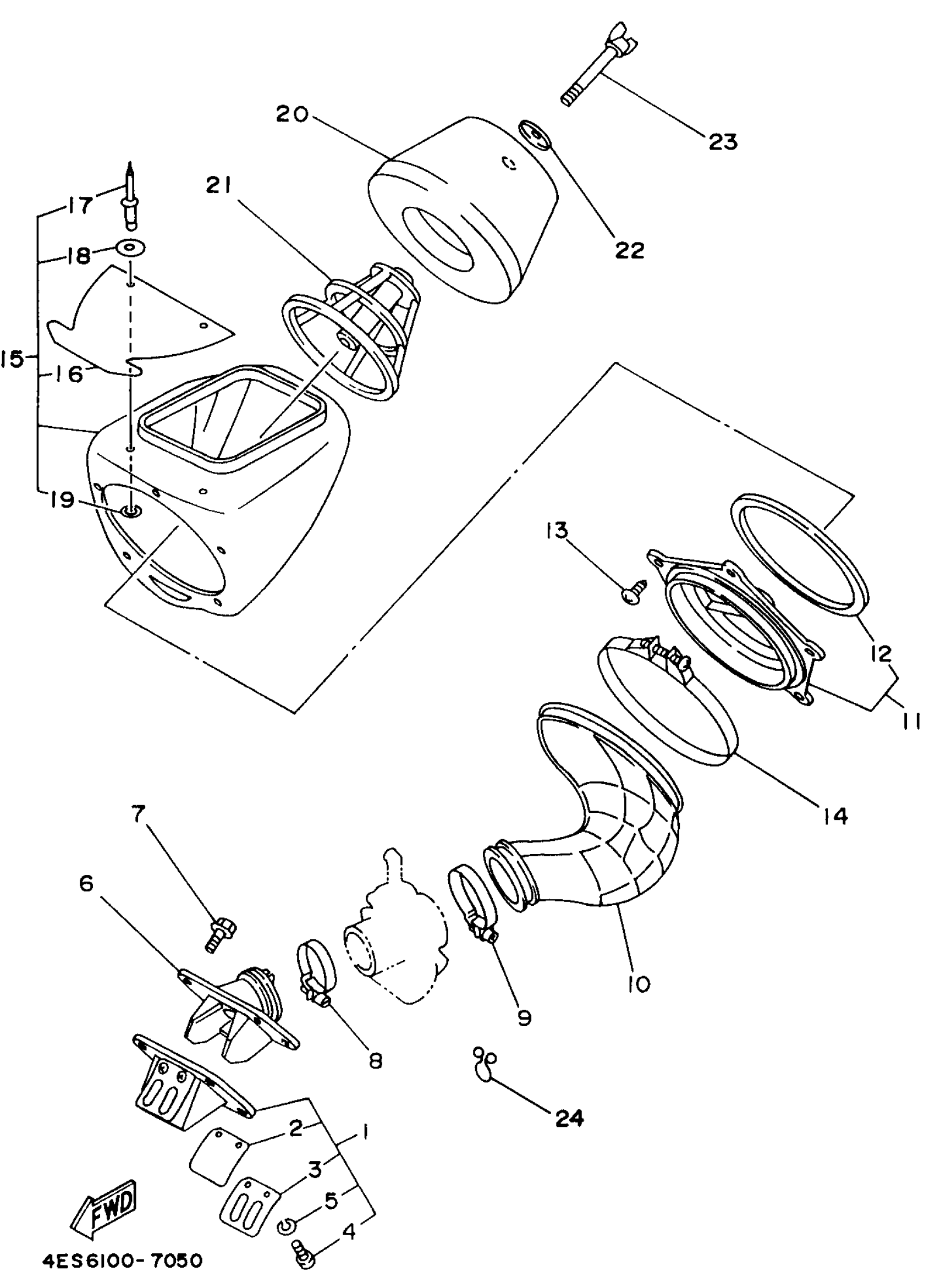

1998 Yamaha YZ80 (YZ80K1) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

4ES-13610-00-00

1
Out of stock

2

REED, VALVE

4ES-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

4ES-13616-00-00

1

$12.20

In stock

4

SCREW, PAN HEAD(3AC)

98517-03008-00

1

$2.74

In stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

JOINT, CARBURETOR

4ES-13565-00-00

1
Out of stock

7

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

8

HOSE CLAMP ASSY(10F)

90450-45075-00

1

$4.15

In stock

9

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

10

JOINT, AIR CLEANER 1

4ES-14453-00-00

1
Out of stock

11

HOLDER, GUIDE

4ES-14459-00-00

1
Out of stock

12

SEAL

4ES-14462-00-00

1

$11.18

In stock

13

SCREW, TRUSS TAP.

97707-50014-00

1

$6.18

In stock

14

HOSE CLAMP ASSY(4ES)

90450-99064-00

1
Out of stock

15

CASE,AIR CLEANER 1

4ES-14411-01-00

1
Out of stock

16

CASE,AIR CLEANER 1

4ES-14411-01-00

1
Out of stock

17

RIVET, BLIND (J10)

90267-40077-00

—
Out of stock

18

WASHER, PLATE (8M6)

90201-047A2-00

—
Out of stock

19

WASHER(JF2)

92907-04600-00

—

$1.23

In stock

20

ELEMENT, AIR CLEANER

4ES-14451-01-00

—
Out of stock

21

GUIDE

4ES-14458-00-00

1
Out of stock

22

WASHER (4H7)

90209-06096-00

—
Out of stock

23

BOLT, WING

90122-06038-00

1
Out of stock

24

CLAMP (3Y2)

90464-16039-00

—
Out of stock
