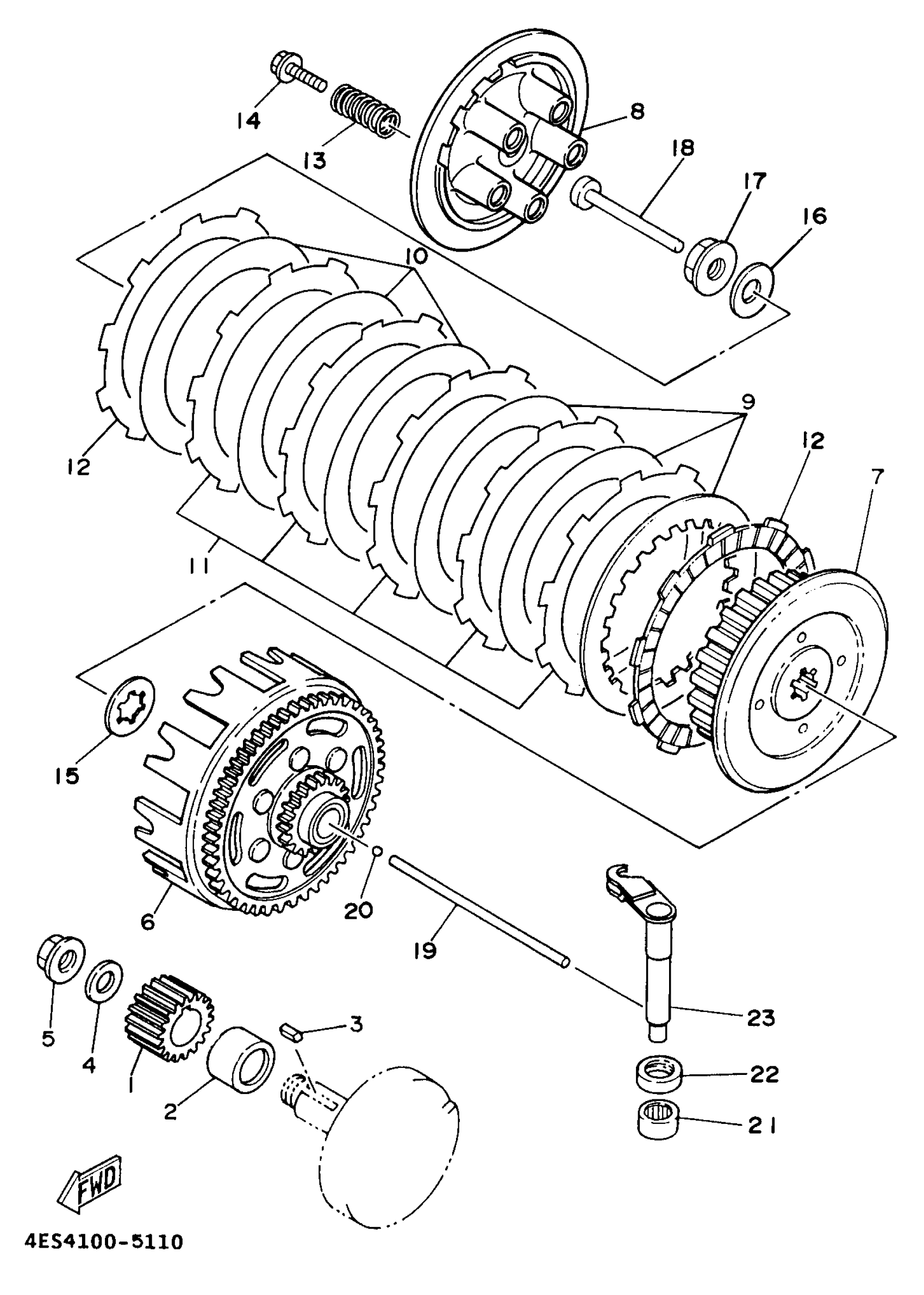

Yamaha YZ80K1 (YZ80) 1998 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

4ES-16111-00-00

Unavailable

2

COLLAR, DISTANCE (525)

90387-20488-00

$20.26

3

KEY, STRAIGHT

90282-05001-00

$7.24

4

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

5

NUT(1EE)

90179-12659-00

$5.02

6

PRIMARY DRIVEN GEAR

4ES-16150-11-00

Unavailable

7

BOSS, CLUTCH

37F-16371-01-00

$91.95

8

PLATE, PRESSURE 1

2TK-16351-00-00

$34.08

9

PLATE, CLUTCH 1

257-16324-10-00

Unavailable

10

PLATE, CLUTCH 1

131-16324-10-00

$17.70

11

PLATE, FRICTION

4ES-16321-00-00

$14.81

12

PLATE, FRICTION

3XP-16321-00-00

$16.14

13

SPRING, COMPRESSION (5G1)

90501-20735-00

$4.48

14

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$2.52

15

PLATE, THRUST 1

4V0-16154-00-00

$24.09

16

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

17

NUT(1EE)

90179-12659-00

$5.02

18

ROD, PUSH 1

4ES-16356-00-00

Unavailable

19

ROD, PUSH 2

2RA-16357-00-00

Unavailable

20

BALL

93503-16003-00

Unavailable

21

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

22

OIL SEAL (4G0)

93102-12224-00

Unavailable

23

PUSH LEVER COMP.

4ES-16381-00-00

Unavailable
