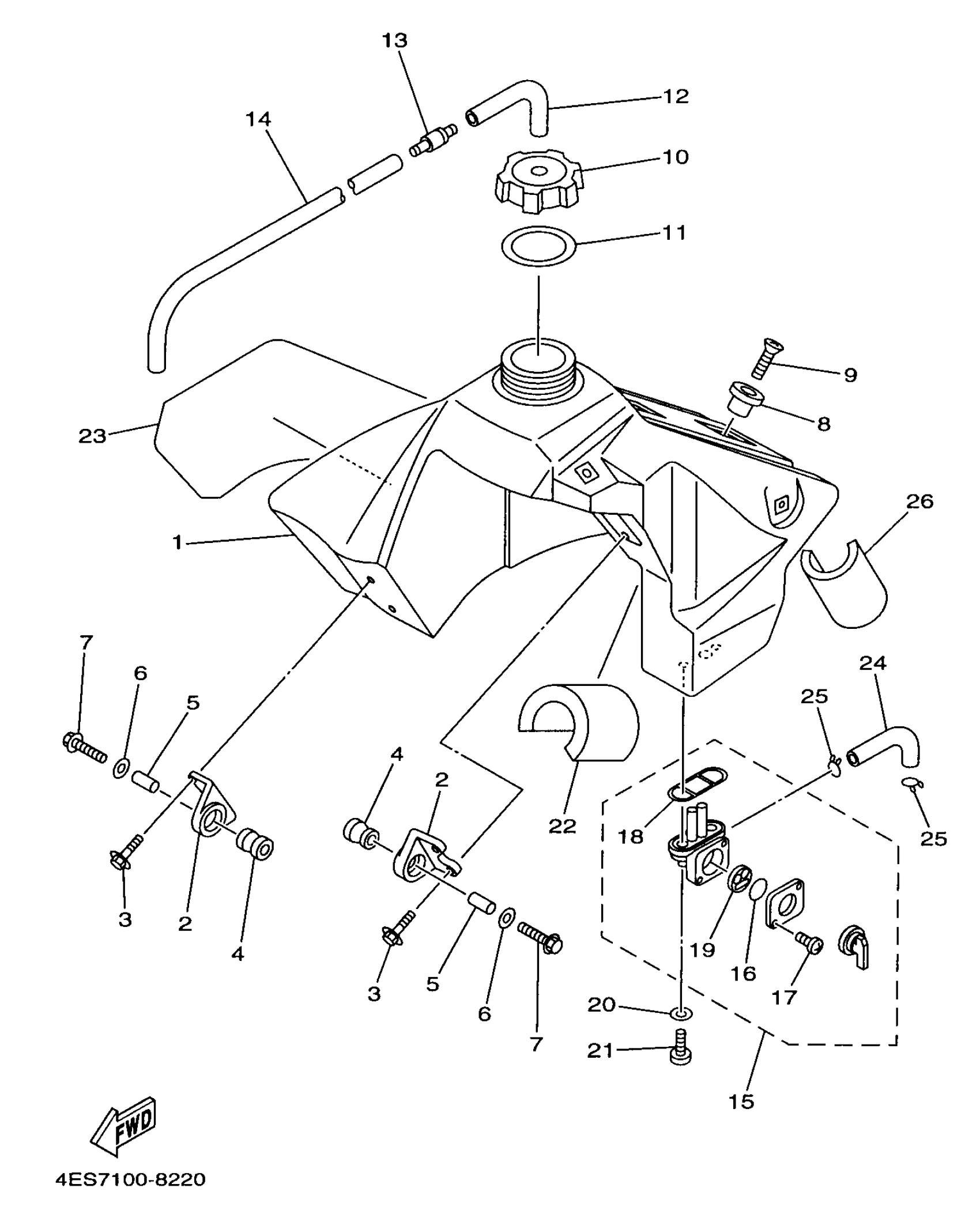

Yamaha YZ80K1 (YZ80) 1998 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

4ES-24110-21-00

Unavailable

2

HOLDER, DAMPER

5XE-24144-00-00

$23.99

3

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

4

GROMMET(4AA)

90480-18549-00

$10.49

5

COLLAR 849833160000

90387-06027-00

$8.49

6

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

7

BOLT, SMALL FLANGE

95027-06030-00

$3.98

8

BRACKET, SEAT

4EW-2412F-00-00

$14.49

9

SCREW, FLAT

98707-06025-00

$8.49

10

BODY, CAP

5X7-24611-01-00

Unavailable

11

PACKING, CAP

5X7-24612-00-00

Unavailable

12

HOSE (L420)

90445-092K1-00

$12.49

13

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

14

HOSE (L420)

90445-092K1-00

$12.49

15

FUEL COCK ASSY 1

4DP-24500-10-00

$91.99

16

SEAL, COCK

3AJ-24534-01-00

Unavailable

17

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

18

O-RING

4X8-24512-00-00

Unavailable

19

VALVE PACKING

3AC-24523-00-00

Unavailable

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

DAMPER, LOCATING 3

3Y0-24183-00-00

Unavailable

23

EMBLEM 1

4ES-24161-50-00

Unavailable

24

PIPE, FUEL 1

4ES-24311-10-00

Unavailable

25

CLIP

90467-100A1-00

Unavailable

26

DAMPER

51L-28371-00-00

Unavailable
