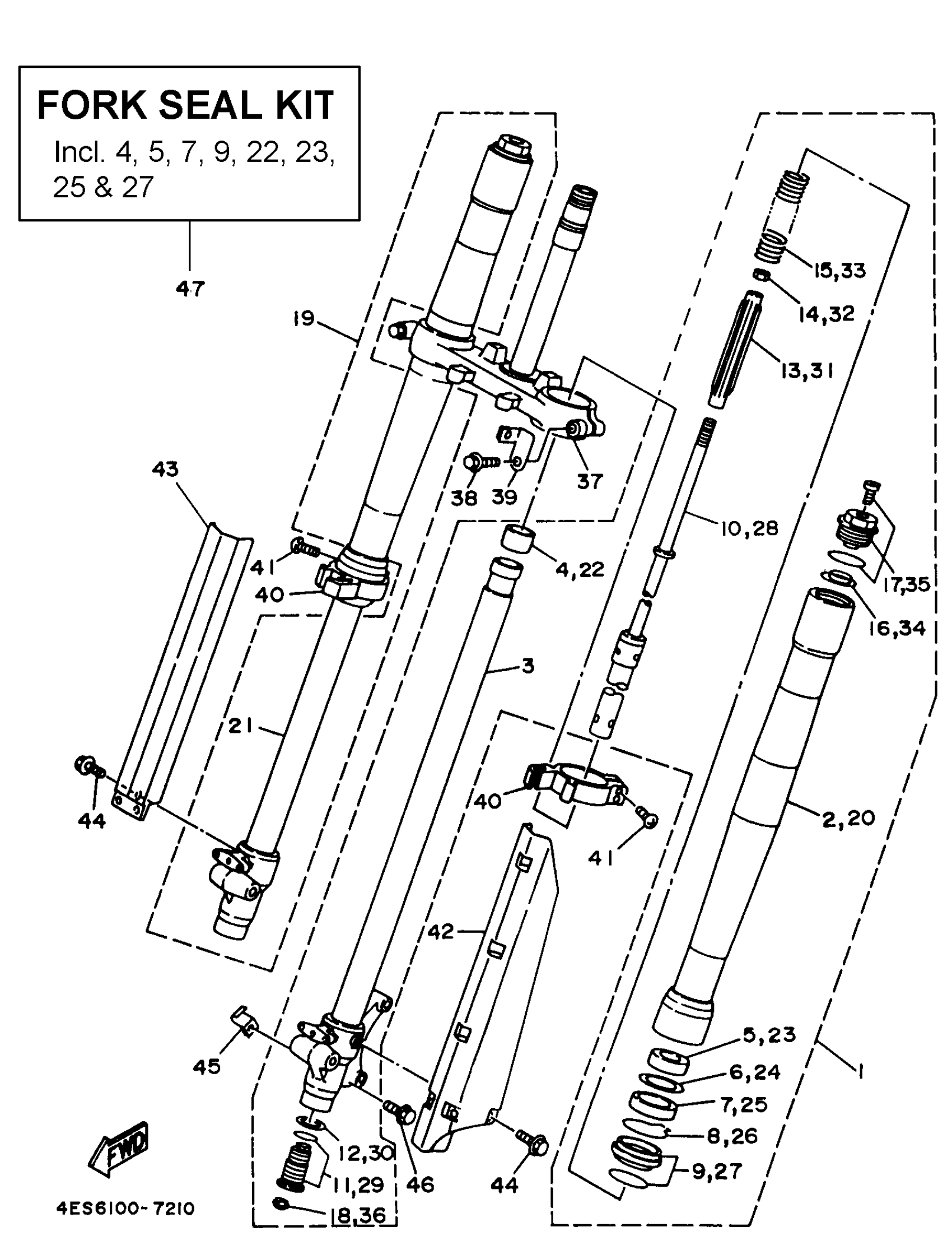

Yamaha YZ80K1 (YZ80) 1998 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

4ES-23102-20-00

Unavailable

2

. TUBE, OUTER (RIGHT)

4ES-23136-20-00

Unavailable

3

. INNER TUBE COMP 2

4ES-23120-00-00

Unavailable

4

. PISTON, FRONT FORK

4ES-23171-00-00

Unavailable

5

METAL, SLIDE 1

4ES-23125-00-00

$28.99

6

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

7

OIL SEAL

4ES-23145-00-00

$22.99

8

RING, SNAP

4A1-23156-00-00

$5.49

9

SEAL, DUST

4ES-23144-00-00

$24.99

10

. CYLINDER COMP, FRONT FORK

4ES-23170-10-00

Unavailable

11

. VALVE COMP

4ES-2316A-10-00

Unavailable

12

GASKET

2HH-23158-L0-00

$10.99

13

SEAT, SPRING UPPER

4ES-23142-00-00

Unavailable

14

NUT

3XJ-23357-L0-00

$1.04

15

SPRING, FRONT FORK

4ES-23141-80-00

Unavailable

16

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

17

BOLT, CAP

4ES-23111-10-00

Unavailable

18

PLUG

3JD-2312G-L0-00

Unavailable

19

FRONT FORK ASSY (R.H)

4ES-23103-20-00

Unavailable

20

. TUBE, OUTER (RIGHT)

4ES-23136-20-00

Unavailable

21

. INNER TUBE COMP 1

4ES-23110-00-00

Unavailable

22

. PISTON, FRONT FORK

4ES-23171-00-00

Unavailable

23

METAL, SLIDE 1

4ES-23125-00-00

$28.99

24

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

25

OIL SEAL

4ES-23145-00-00

$22.99

26

RING, SNAP

4A1-23156-00-00

$5.49

27

SEAL, DUST

4ES-23144-00-00

$24.99

28

. CYLINDER COMP, FRONT FORK

4ES-23170-10-00

Unavailable

29

. VALVE COMP

4ES-2316A-10-00

Unavailable

30

GASKET

2HH-23158-L0-00

$10.99

31

SEAT, SPRING UPPER

4ES-23142-00-00

Unavailable

32

NUT

3XJ-23357-L0-00

$1.04

33

SPRING, FRONT FORK

4ES-23141-80-00

Unavailable

34

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

35

BOLT, CAP

4ES-23111-10-00

Unavailable

36

PLUG

3JD-2312G-L0-00

Unavailable

37

UNDER BRACKET COMP.

4ES-23340-00-00

Unavailable

38

BOLT, SMALL FLANGE

95024-10040-00

Unavailable

39

GUIDE, CABLE

4ES-2331E-00-00

Unavailable

40

PROTECTER GUIDE COMP., 1

4ES-2314F-00-00

Unavailable

41

SCREW, PAN HEAD

98517-04025-00

Unavailable

42

PROTECTER COMP., 1

5PA-2314H-L0-00

Unavailable

43

PROTECTER COMP., 2

5PA-2314J-L0-00

Unavailable

44

BOLT, FLANGE(3BM)

95024-06008-00

Unavailable

45

HOLDER, CABLE 1

4ES-23318-00-00

Unavailable

46

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

47

FORK SEAL KIT (TWO FORKS)

4ES-W003B-00-00

Unavailable
