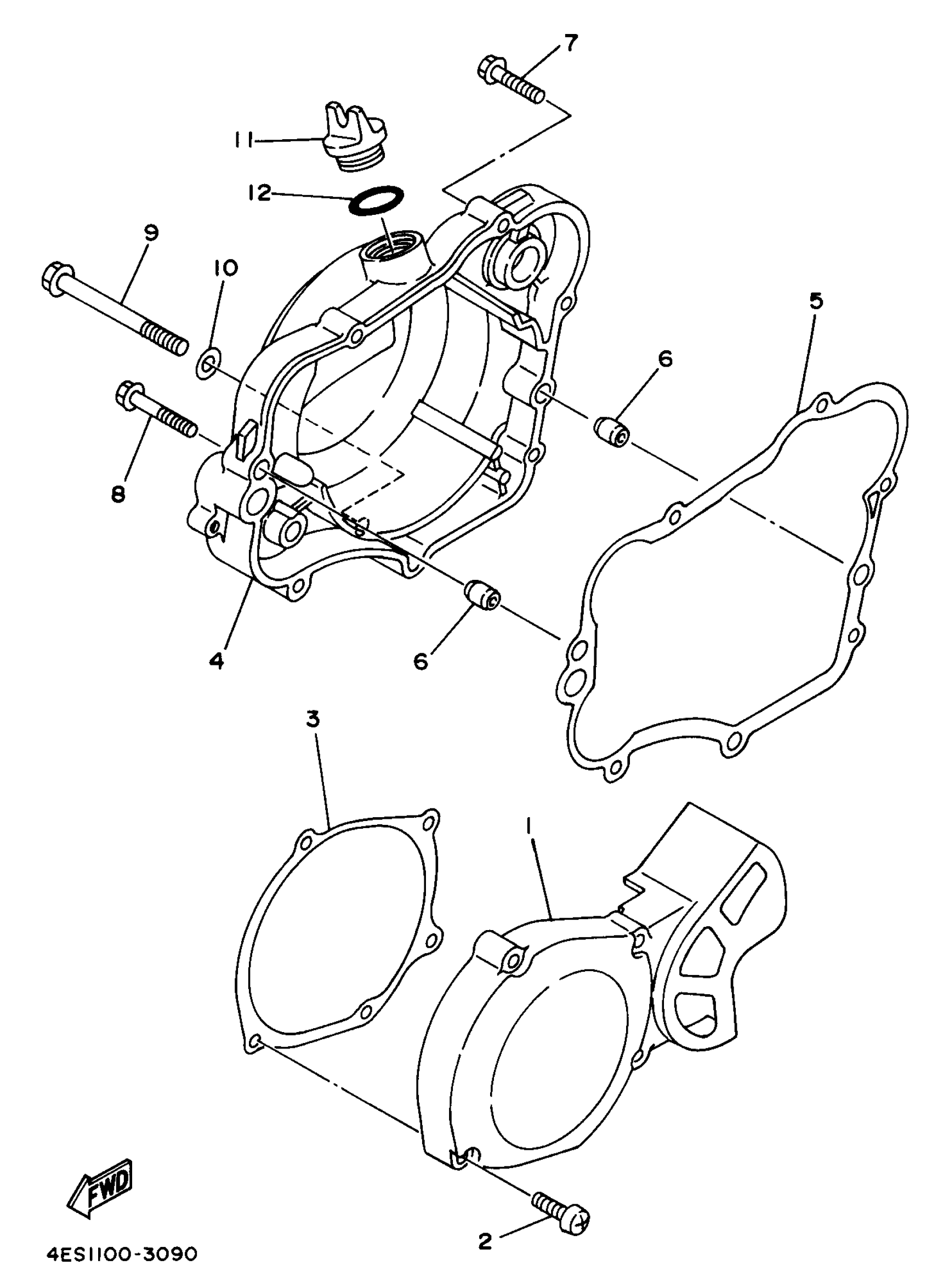

Yamaha YZ80K1 (YZ80) 1998 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4ES-15411-02-00

$12.08

2

SCREW, PAN

98517-06030-00

$2.88

3

GASKET, CRANKCASE COVER 1

4ES-15451-00-00

Unavailable

4

COVER,CRANKCASE R

4ES-15421-01-00

Unavailable

5

GASKET, CRANKCASE COVER 2

4ES-15461-00-00

$23.48

6

PIN, DOWEL(3VD)

99530-10114-00

$2.13

7

BOLT, SMALL FLANGE

95027-06030-00

$3.40

8

BOLT, SMALL FLANGE

95027-06040-00

$2.31

9

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

10

GASKET

90430-08119-00

Unavailable

11

PLUG, OIL

3Y1-15363-10-00

$15.94

12

O-RING (646)

93210-19123-00

Unavailable
