TRANSMISSION

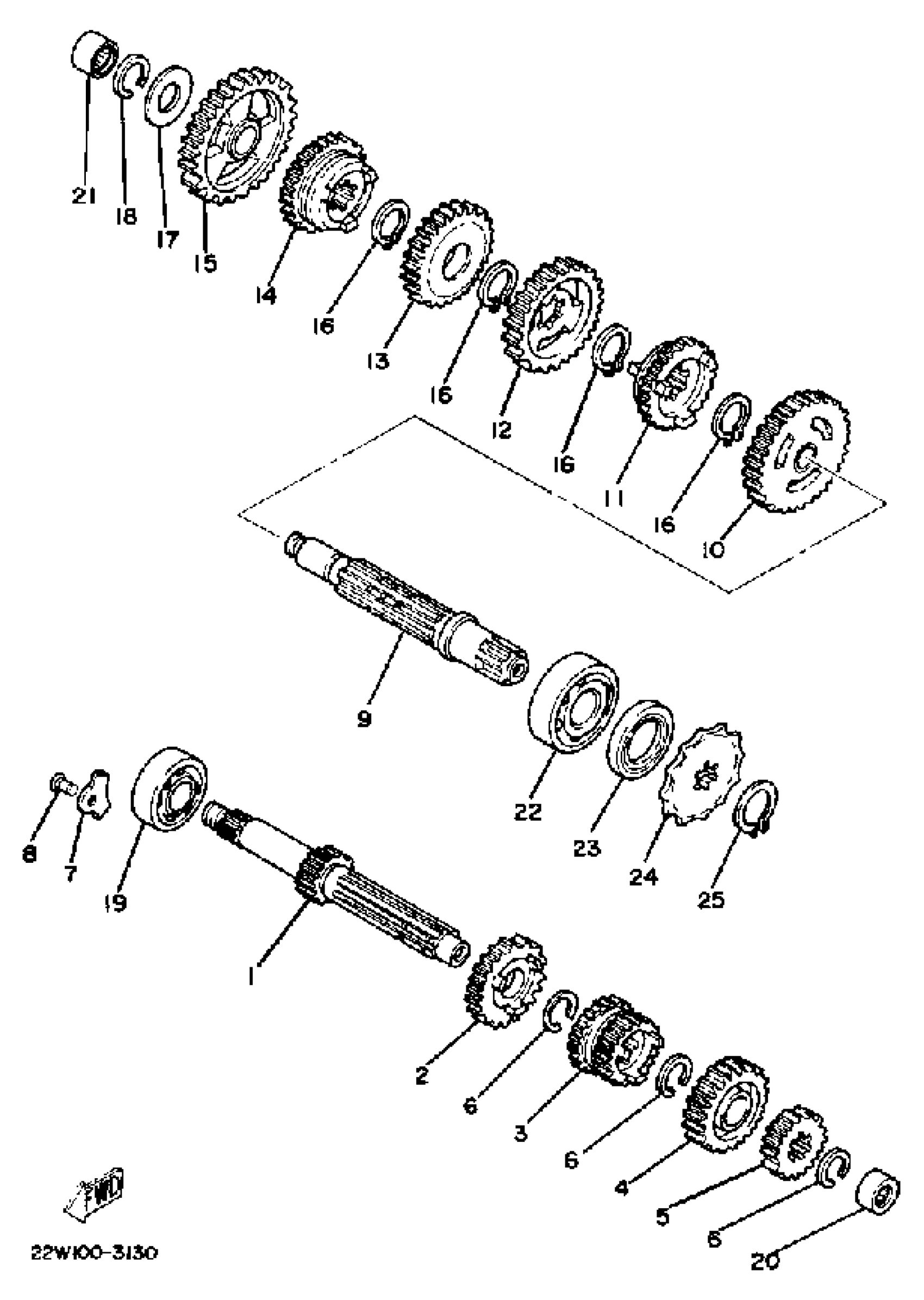

Yamaha YZ80K (YZ80) 1983 TRANSMISSION Diagram
#
Description
Price
1
AXLE, MAIN (4V0-17411-00) (13T)
4V0-17411-02-00
Unavailable
2
GEAR, 5TH PINION (20T)
4V0-17151-02-00
Unavailable
3
GEAR, 3RD PINION (19T, 21T)
4V0-17131-00-00
Unavailable
4
GEAR, 6TH PINION (24T)
4V0-17161-02-00
Unavailable
5
GEAR, 2ND PINION (16T)
4V0-17121-00-00
Unavailable
8
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
Unavailable
9
AXLE,DRIVE
4V0-17421-00-00
Unavailable
10
GEAR, 2ND WHEEL (33T)
4V0-17221-00-00
Unavailable
11
GEAR, 6TH WHEEL (25T)
4V0-17261-02-00
Unavailable
12
GEAR, 3RD WHEEL (31T)
4V0-17231-00-00
Unavailable
13
GEAR, 4TH WHEEL (28T)
4V0-17241-00-00
Unavailable
14
GEAR, 5TH WHEEL (23T)
4V0-17251-02-00
Unavailable
15
GEAR, 1ST WHEEL (36T)
4V0-17211-00-00
Unavailable
16
CIRCLIP (525)
93410-20038-00
Unavailable
17
SHIM, DRIVE AXLE
164-17427-00-06
Unavailable
18
CIRCLIP
93440-15012-00
Unavailable
19
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
20
BEARING, CYLINDER.#11
93311-31249-00
Unavailable
21
BRG,CYL-CAL ROLLER 16G TM
93315-31502-00
Unavailable
22
BEARING(1YW)
93306-20461-00
Unavailable
23
OIL SEAL (20X38X5-517)
93102-20143-00
Unavailable
24
DRIVE SPROCKET ASSY (12T)
3TU-17460-00-00
Unavailable
24
SPROCKET, DRIVE (13T)
93822-13213-00
Unavailable
24
SPROCKET,DRIVE 14T(5N01746141)
93822-14043-00
Unavailable
25
CIRCLIP(13H)
99009-18400-00
Unavailable
