Description

Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

SEAL, DUST

164-23462-00-00

$7.99

3

GUIDE, CABLE

22W-23389-00-00

Unavailable

4

RACE, BALL 2

B6E-23412-00-00

$13.49

5

BALL

93501-04011-00

$8.49

6

RACE, BALL 1

BP2-23411-00-00

$11.49

7

RACE, BALL 2

BP2-23412-00-00

$7.49

8

BALL

93503-16003-00

$2.72

9

COVER, BALL RACE

122-23416-00-00

$7.99

10

NUT

90179-25004-00

$24.99

11

BOLT (2A2)

90105-14102-00

$5.60

12

CROWN, HANDLE

22W-23435-00-98

Unavailable

13

BOLT, FLANGE

95817-08035-00

$9.49

14

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

15

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

16

PLATE, NUMBER

22W-23485-01-00

Unavailable

17

EMBLEM 5

22W-21785-00-00

Unavailable

18

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

19

CLAMP (3R0)

90462-14055-00

Unavailable

20

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

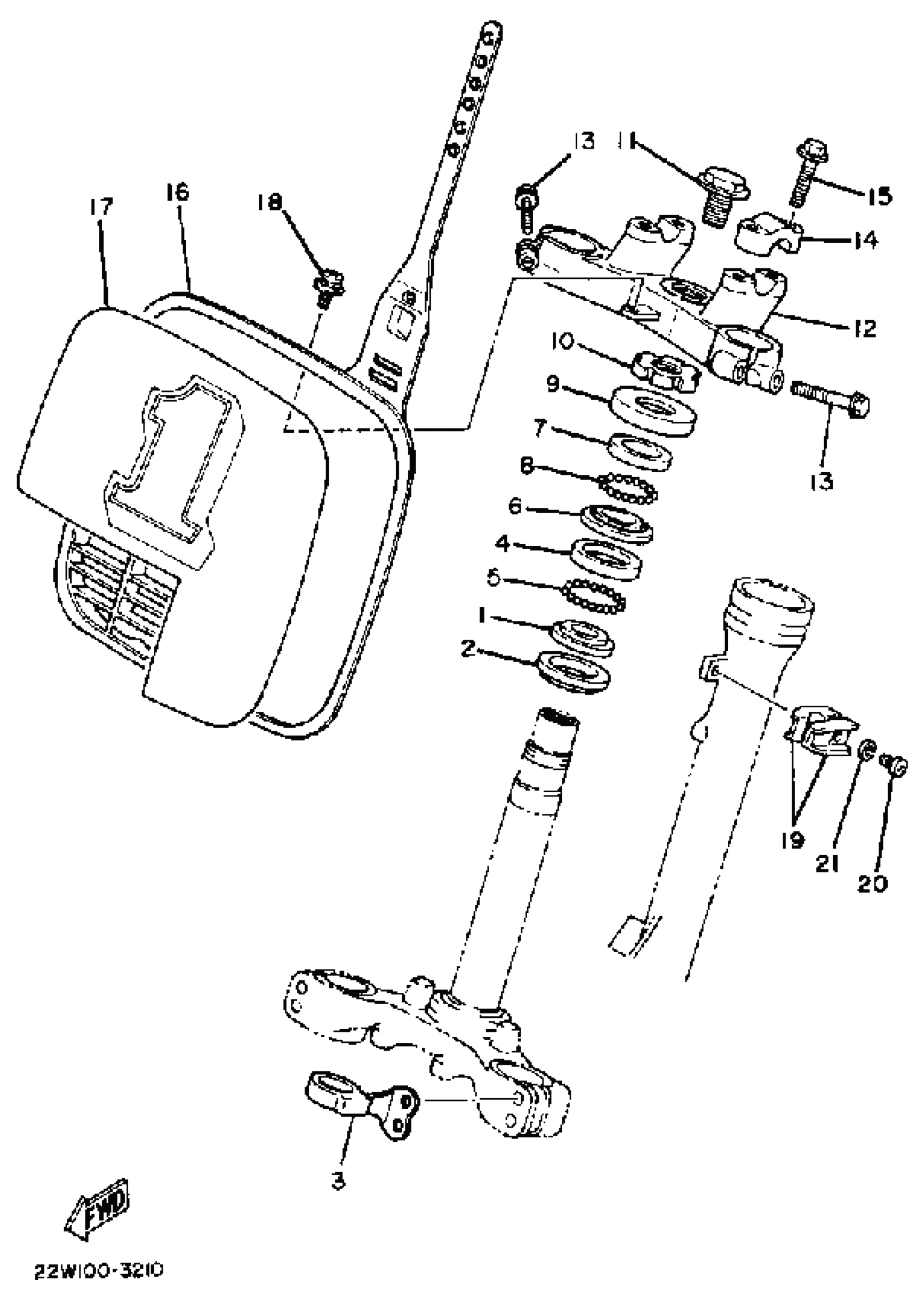

Yamaha YZ80K (YZ80) 1983 STEERING Diagram

RACE, BALL 1

SEAL, DUST

GUIDE, CABLE

RACE, BALL 2

BALL

RACE, BALL 1

RACE, BALL 2

BALL

COVER, BALL RACE

NUT

BOLT (2A2)

CROWN, HANDLE

BOLT, FLANGE

HOLDER, HANDLE UPPER

BOLT, FLANGE(6TA)

PLATE, NUMBER

EMBLEM 5

SCREW, W/WASHER (4L0)

CLAMP (3R0)

SCREW, PAN HEAD(62J)

WASHER, SPRING
