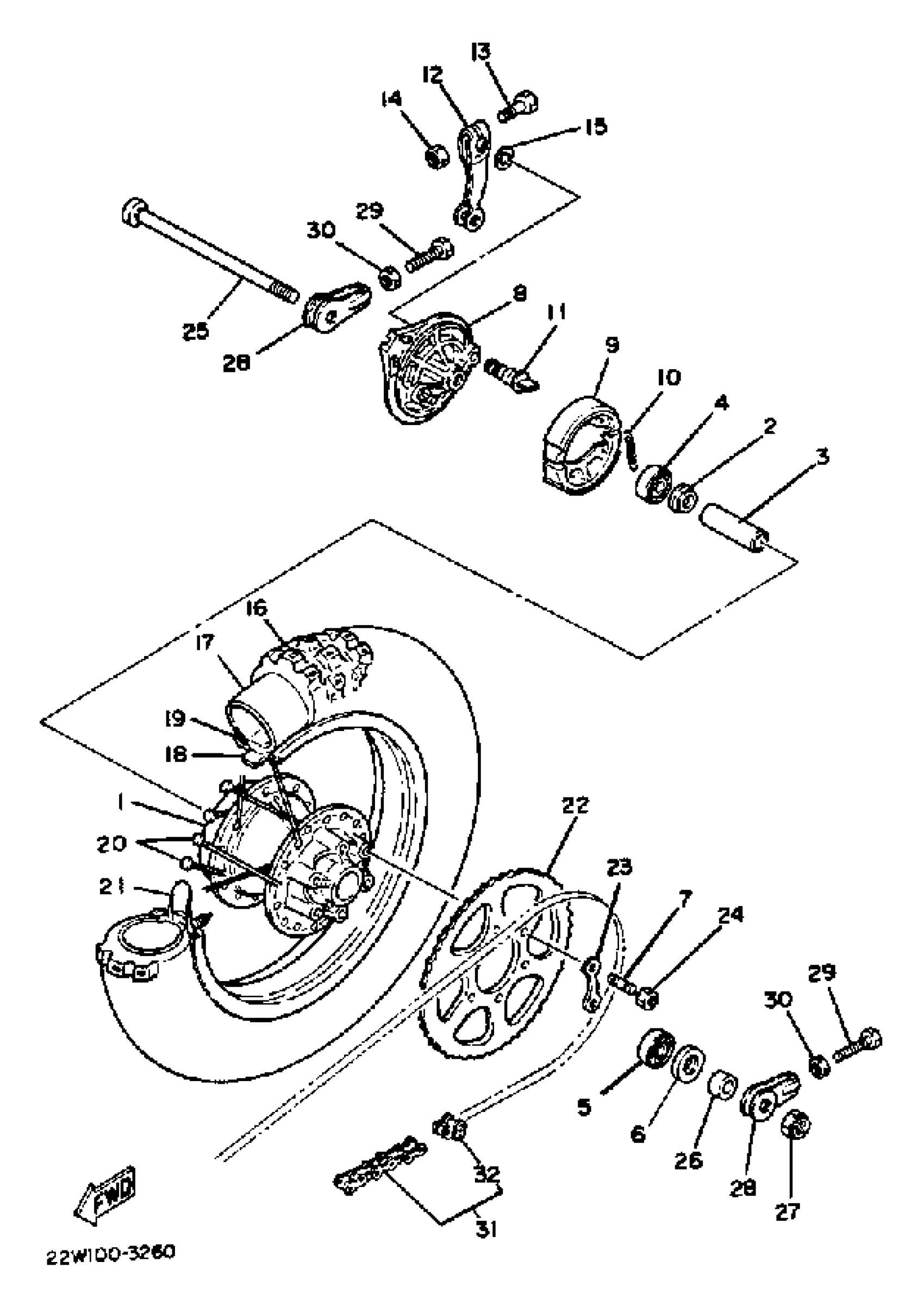

Yamaha YZ80K (YZ80) 1983 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5X2-25311-00-98

Unavailable

2

FLANGE, SPACER

146-25116-00-00

$8.99

3

SPACER, BEARING

5X2-25317-00-00

Unavailable

4

BEARING

93306-30212-00

$40.99

5

BEARING

93306-30212-00

$40.99

6

SEAL,OIL

93106-26005-00

$7.20

7

.. BOLT, STUD

90116-08247-00

Unavailable

8

PLATE, BRAKE SHOE

5X2-25321-00-98

Unavailable

9

BRAKESHOE SET-2PCS

451-W2535-00-00

Unavailable

10

SPRING TENSION 451251330000

90506-14081-00

$8.49

11

CAMSHAFT

4N0-25151-00-00

Unavailable

12

LEVER, CAMSHAFT

3R0-25355-11-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER PLATE 164185720000

90201-12166-00

$9.49

16

410-14 M22 TT

94141-14724-00

Unavailable

17

TUBE (80-90/100-14 TR4)(4ES)

94208-14285-00

Unavailable

18

BAND, RIM (1K8)

94327-14076-00

Unavailable

19

RIM 1.60X14 (1.60-14)

94416-14273-00

Unavailable

20

SPOKE SET, REAR

4V1-25304-00-00

Unavailable

21

SPACER, BEAD

5X2-25394-00-00

Unavailable

22

SPROCKET, DRIVEN (45T)

15A-25445-11-00

Unavailable

22

SPROCKET, DRIVN 40T

4V1-25440-10-33

Unavailable

22

SPROCKET, DRVN 42T (42T)

4V1-25442-10-00

Unavailable

22

SPROCKET, DRVN 44T (44T)

4V1-25444-10-00

Unavailable

23

WASHER, LOCK

22W-25412-00-00

Unavailable

24

NUT, HEXAGON (509)

90170-08158-00

Unavailable

25

AXLE, WHEEL

22W-25381-00-00

Unavailable

26

COLLAR

90387-15115-00

Unavailable

27

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

28

PULLER, CHAIN

248-25388-00-00

Unavailable

29

BOLT

90101-08060-00

Unavailable

30

. NUT

95380-08700-00

Unavailable

31

CHAIN, DRIVE

9Y580-24109-00

Unavailable

32

JOINT, CHAIN(3KX)

94681-64001-00

Unavailable
