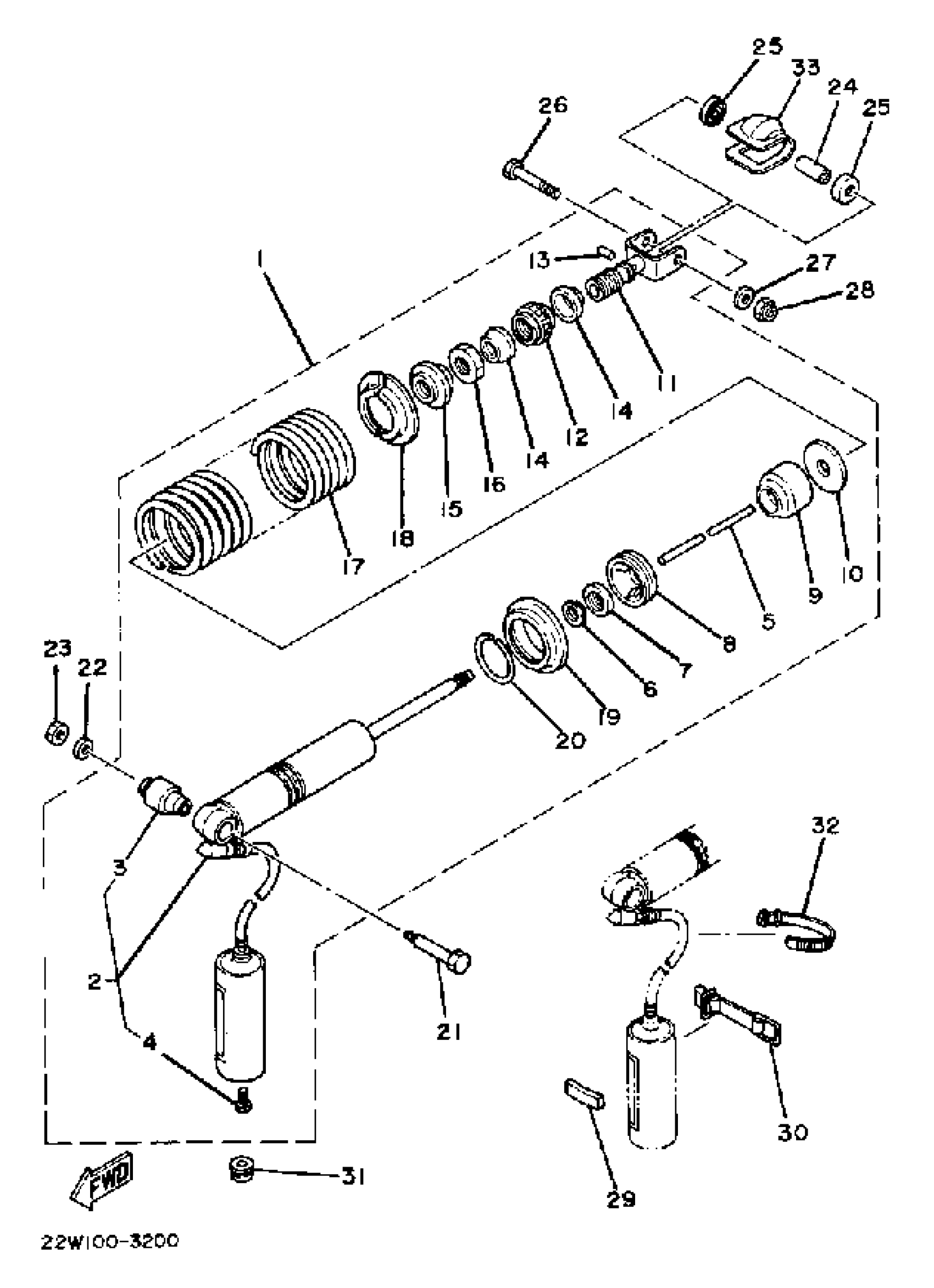

Yamaha YZ80K (YZ80) 1983 REAR SUSPENSION Diagram

#

Description
Price

1

. DAMPER SUB-ASSEMBLY

22W-22210-10-6W

Unavailable

2

. DAMPER SUB-ASSEMBLY

22W-22210-10-6W

Unavailable

3

.. BUSH, RR SHOCK ABS

2X6-22216-00-00

Unavailable

4

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

5

. ROD, PUSH

22W-22489-00-00

Unavailable

6

. SEAL, DUST

29L-22475-00-00

Unavailable

7

. SEAL, DUST

29L-22475-00-00

Unavailable

8

. CAP, CASE

38W-22472-01-00

Unavailable

9

. BUMP, STOP

5X2-22493-00-00

Unavailable

10

. SUPPORT, BUMP STOP

5X2-22228-00-00

Unavailable

11

UPPER BRACKET SUB ASSEMBLY

(22W-22409-00-00)

Unavailable

12

. NUT, ADJUSTING

5X3-22497-00-00

Unavailable

13

. PIN, DOWEL

93604-26132-00

Unavailable

14

. COVER

3R4-22221-01-00

Unavailable

15

. SEAT, SPRING UPPER

3R4-22213-00-00

Unavailable

16

NUT, HEXAGON (29L)

90170-20320-00

Unavailable

17

. SPRING

22W-22212-00-26

Unavailable

17

SPRING, MXS HARD 83

22W-22212-20-26

Unavailable

18

GUIDE, SPRING 1

3P6-22214-10-00

Unavailable

19

. SEAT, SPRING LOWER

22W-22223-00-00

Unavailable

20

CIRCLIP (5X2)

93440-42101-00

Unavailable

21

BOLT (22W)

90109-10729-00

Unavailable

22

WASHER, PLATE

92990-10600-00

Unavailable

23

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

24

COLLAR (22W)

90387-106G0-00

Unavailable

25

COVER, THRUST 2

22W-22129-00-00

Unavailable

26

BOLT (22W)

90109-10689-00

Unavailable

27

WASHER, PLATE

92990-10600-00

Unavailable

28

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

29

DAMPER, SUB TANK

22W-22261-02-00

Unavailable

30

HOLDER, SUB TANK

22W-22262-00-00

Unavailable

31

GROMMET

90480-17359-00

Unavailable

32

BAND, SWITCH CORD

437-83936-11-00

Unavailable

33

BOOT, RUBBER

22W-22189-00-00

Unavailable
