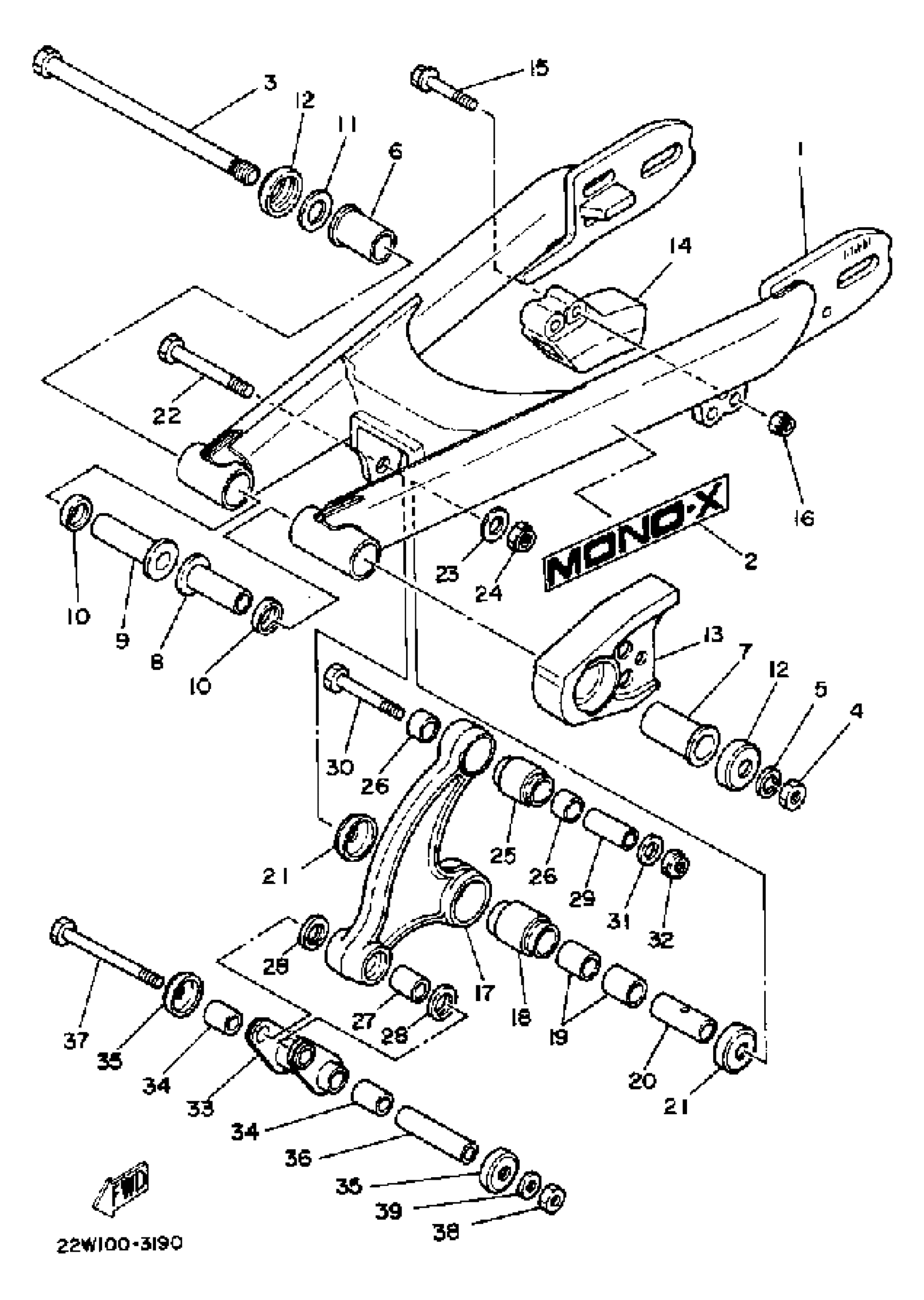

Yamaha YZ80K (YZ80) 1983 REAR ARM Diagram

#

Description
Price

1

REAR ARM

(22W-22110-00-35)

Unavailable

2

EMBLEM, REAR ARM

5X6-2218A-00-00

Unavailable

3

SHAFT, PIVOT

4V1-22141-00-00

Unavailable

4

NUT, HEXAGON SMALL

95317-12700-00

$8.49

5

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

6

BUSH

90386-18099-00

Unavailable

7

BUSH(3DM)

90386-18163-00

$13.99

8

COLLAR

90387-121F6-00

Unavailable

9

COLLAR

90387-121F7-00

Unavailable

10

OIL SEAL (2J5)

93109-18020-00

$13.49

11

SHIM

401-22127-00-00

$7.99

12

COVER, THRUST 1

401-22128-01-00

$29.99

13

SEAL, GUARD

22W-22151-00-00

Unavailable

14

SUPPORT, CHAIN

22W-22199-00-00

Unavailable

15

BOLT, FLANGE

95814-08040-00

$4.72

16

NUT, U

95617-08100-00

Unavailable

17

ARM, RELAY

(22W-2217A-00-00)

Unavailable

18

BUSH 1

22W-22123-00-00

Unavailable

19

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

Unavailable

20

BUSHING, REAR ARM INNER

2J5-22124-00-00

Unavailable

21

COVER, THRUST 2

5X6-22129-00-00

Unavailable

22

BOLT (1M1)

90109-10453-00

Unavailable

23

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

24

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

25

BUSH 2

22W-22124-00-00

Unavailable

26

BUSH, SOLID (22W)

90380-16109-00

Unavailable

27

BUSH, FORMED (22W)

90383-16023-00

Unavailable

28

OIL SEAL (22W)

93109-16035-00

Unavailable

29

COLLAR (22W)

90387-106G0-00

Unavailable

30

BOLT (22W)

90109-10689-00

Unavailable

31

WASHER, PLATE

92990-10600-00

Unavailable

32

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

33

ROD, CONNECTING 1

22W-2217F-00-00

Unavailable

34

BUSH, FORMED (22W)

90383-16023-00

Unavailable

35

COVER, THRUST 2

22W-22129-00-00

Unavailable

36

COLLAR (22W)

90387-105G9-00

Unavailable

37

BOLT

90109-10688-00

Unavailable

38

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

39

WASHER, PLATE

92990-10600-00

Unavailable
