Description

Price

1

RADIATOR ASSEMBLY

22W-12460-00-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$62.99

3

PIPE, BREATHER

22W-12463-00-00

$20.99

4

CLIP, PIPE 6162435600

90467-08004-00

$8.49

5

PIPE 1

22W-12481-00-00

Unavailable

6

PIPE 2

22W-12482-00-00

Unavailable

7

BAND

90460-27219-00

Unavailable

8

JOINT

(22W-12446-01-00)

Unavailable

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

10

. O-RING

93210-16275-00

Unavailable

11

SEAL, PIPE 1

4V2-12494-00-00

Unavailable

12

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

$10.49

13

BOLT, WITH WASHER

90119-06080-00

Unavailable

14

GROMMET(663)

90480-15064-00

$9.49

15

COLLAR(2UJ)

90387-061V1-00

$8.49

16

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

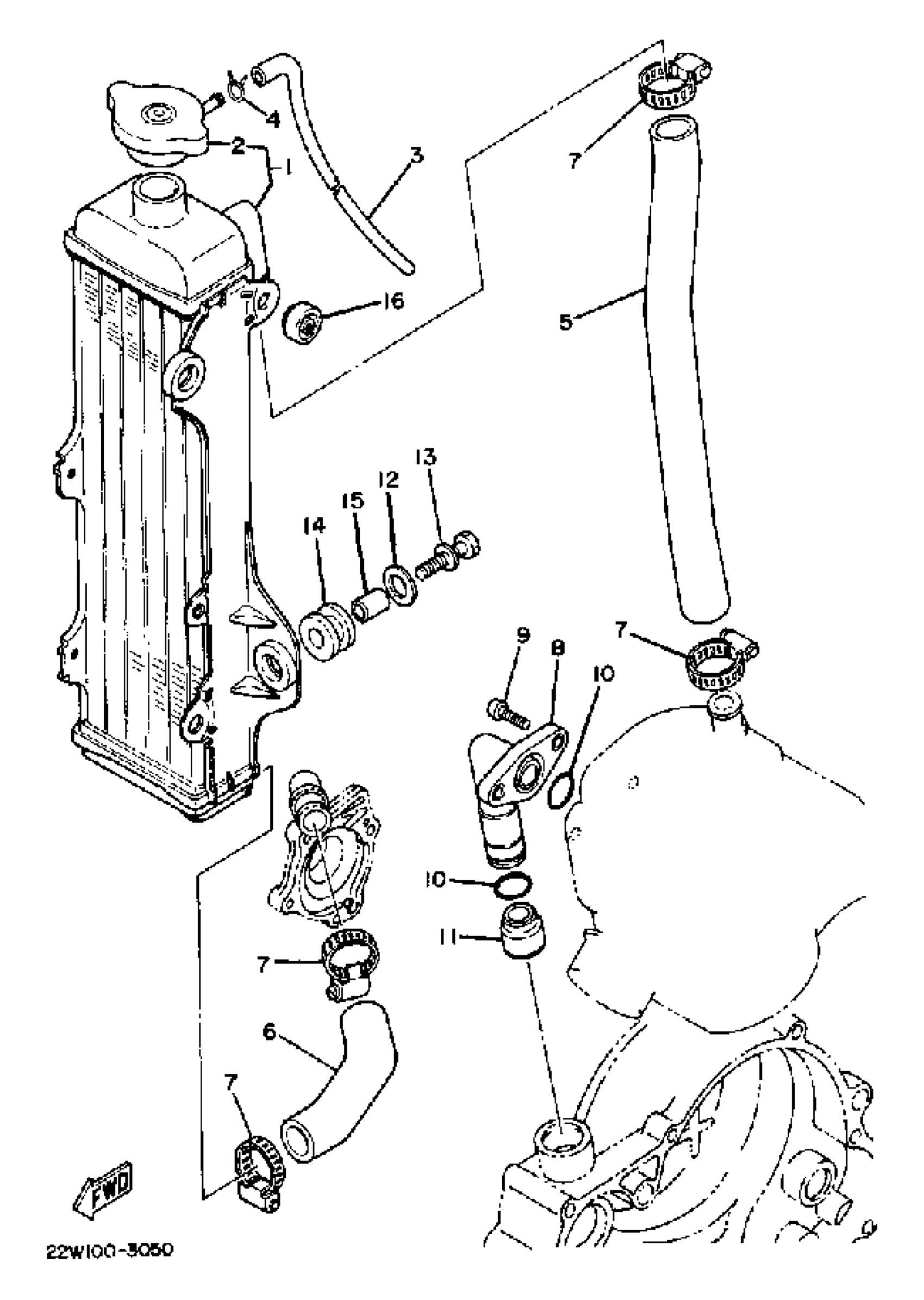

Yamaha YZ80K (YZ80) 1983 RADIATOR HOSE Diagram

RADIATOR ASSEMBLY

CAP, RADIATOR

PIPE, BREATHER

CLIP, PIPE 6162435600

PIPE 1

PIPE 2

BAND

JOINT

SCREW, PAN HEAD(3TJ)

. O-RING

SEAL, PIPE 1

WASHER, PLATE (583 FUEL TANK)

BOLT, WITH WASHER

GROMMET(663)

COLLAR(2UJ)

DAMPER, LOCATING 1
