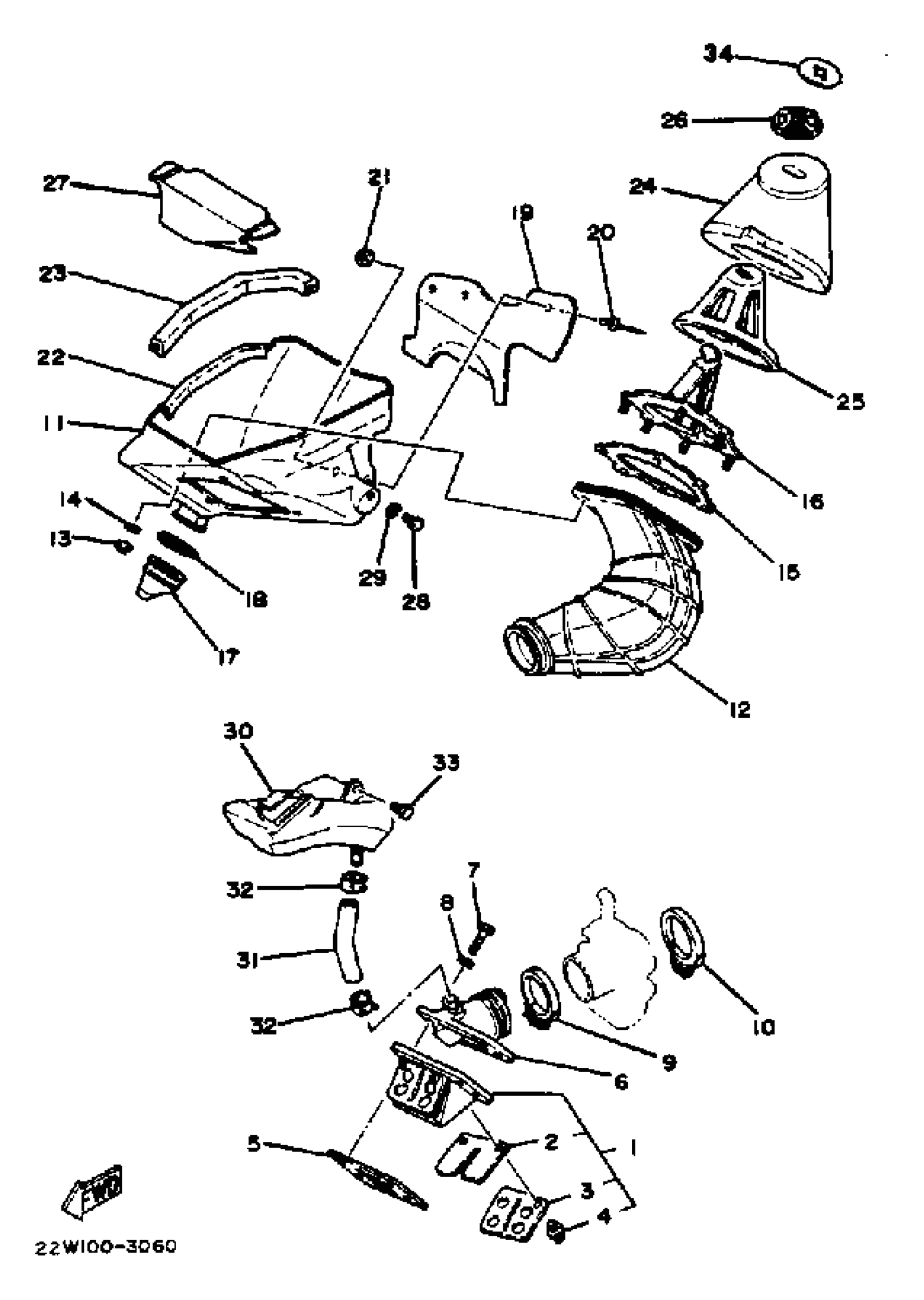

Yamaha YZ80K (YZ80) 1983 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

10V-13610-01-00

$163.99

2

REED VALVE 1

10V-13613-01-00

$29.99

3

STOPPER, REED VALVE

(10V-13616-00-00)

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

GASKET, VALVE SEAT

3TT-13621-00-00

$19.49

6

JOINT, CARBURETOR

22W-13565-00-00

Unavailable

7

UNAVAILABLE IN PRICE BOOK

97901-06025-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

10

CLAMP HOSE 304144550000

90460-51059-00

$16.99

11

CASE, AIR CLEANER 1

22W-14411-00-00

Unavailable

12

JOINT, AIR CLNR 1

22W-14453-00-00

Unavailable

13

NUT, U

95617-05100-00

$9.49

14

. WASHER, PLAIN

92990-05200-00

Unavailable

15

SEAL

(22W-14462-00-00)

Unavailable

16

HOLDER, GUIDE

22W-14459-01-00

Unavailable

17

SEAL

22W-14457-00-00

Unavailable

18

SPRING, COMPRESSION

90504-03033-00

Unavailable

19

GUARD, FLAP

22W-21642-00-00

Unavailable

20

RIVET,BLIND

90267-40080-00

Unavailable

21

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

22

DAMPER 1

(22W-14425-00-00)

Unavailable

23

DAMPER 2

(22W-14426-00-00)

Unavailable

24

ELEMENT, AIR CLNR

22W-W1442-00-00

Unavailable

25

GUIDE, ELEMENT

22W-14458-01-00

Unavailable

26

PLATE, ELEMENT FITTING

3J0-14468-00-00

Unavailable

27

CAP, CLEANER CASE 1

22W-14412-00-00

Unavailable

28

BOLT (661)

97013-06012-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

CHAMBER, AIR

22W-13581-00-00

Unavailable

31

HOSE

90445-16673-00

Unavailable

32

CLIP

90467-16181-00

Unavailable

33

BOLT (661)

97013-06012-00

Unavailable

34

PLATE, ELEMENT

(22W-14472-00-00)

Unavailable
