Description

Price

1

HUB, FRONT

462-25111-01-98

Unavailable

2

SPACER

90560-12138-00

Unavailable

3

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

4

BEARING (32N)

93306-00108-00

$33.99

5

OIL SEAL (18X28X8-462)

93106-18013-00

$11.49

6

FLANGE, SPACER 1

462-25115-00-00

Unavailable

7

PLATE, BRAKE SHOE

2J5-25121-00-98

Unavailable

8

BRAKE SHOE KIT

3EC-W253A-00-00

$32.99

9

SPRING TENSION 451251330000

90506-14081-00

$8.49

10

CAMSHAFT

1YT-25351-00-00

Unavailable

11

LEVER, CAM SHAFT

451-25155-00-00

Unavailable

12

BOLT, HEXAGON (462)

90101-06291-00

$8.49

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

70/100-17 M37 BS (70/100-17)

94107-177H6-00

Unavailable

15

TUBE (1E2)

94227-17106-00

$21.99

16

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

17

RIM 1.40X17 (1.40-17)

94414-17303-00

Unavailable

18

SPOKE SET, FRONT

4V1-25104-00-00

Unavailable

19

SPACER, BEAD

1T1-25194-00-00

Unavailable

20

AXLE, WHEEL

22W-25181-01-00

Unavailable

21

NUT, SELF-LOCKING(1KH)

90185-12134-00

Unavailable

22

COLLAR (12T)

90387-126F8-00

Unavailable

23

COVER, HUB DUST

462-25118-00-00

Unavailable

24

WASHER, PLATE

90201-12047-00

Unavailable

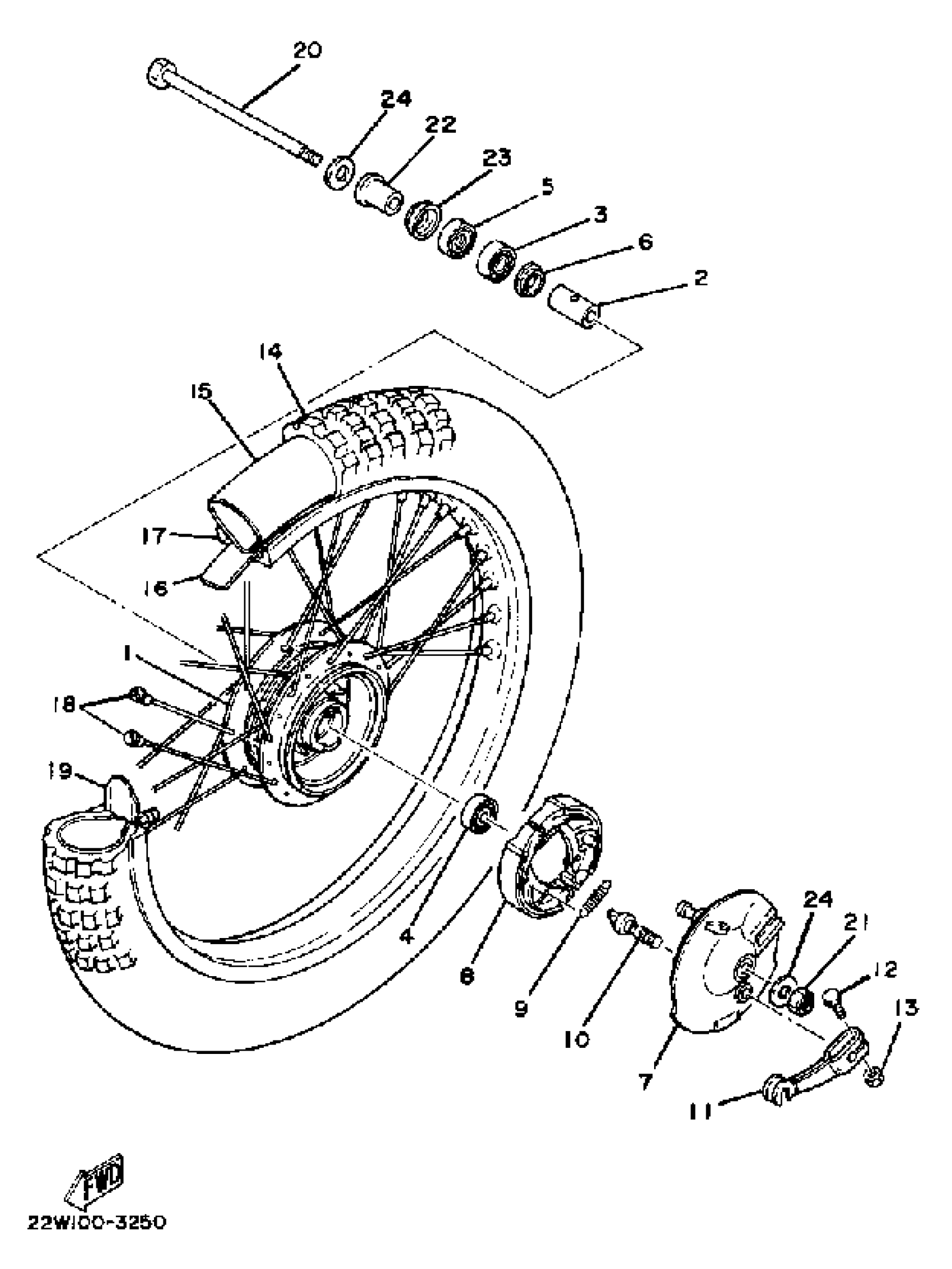

Yamaha YZ80K (YZ80) 1983 FRONT WHEEL Diagram

HUB, FRONT

SPACER

BRG,R-B 6001 28MM 28G KY

BEARING (32N)

OIL SEAL (18X28X8-462)

FLANGE, SPACER 1

PLATE, BRAKE SHOE

BRAKE SHOE KIT

SPRING TENSION 451251330000

CAMSHAFT

LEVER, CAM SHAFT

BOLT, HEXAGON (462)

NUT, HEXAGON

70/100-17 M37 BS (70/100-17)

TUBE (1E2)

BAND, RIM (3.25-17) (3Y0)

RIM 1.40X17 (1.40-17)

SPOKE SET, FRONT

SPACER, BEAD

AXLE, WHEEL

NUT, SELF-LOCKING(1KH)

COLLAR (12T)

COVER, HUB DUST

WASHER, PLATE
