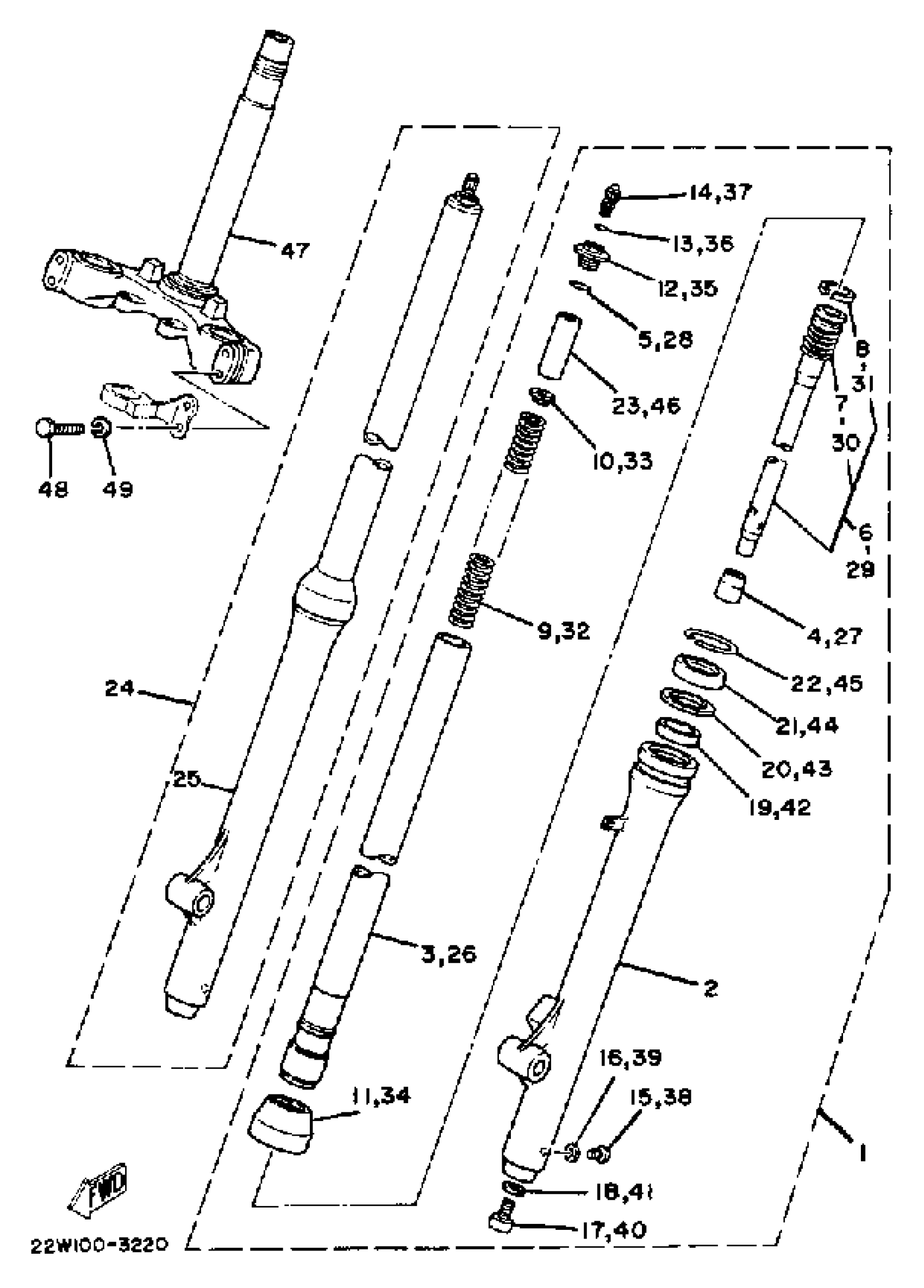

Yamaha YZ80K (YZ80) 1983 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(22W-23102-L0-00)

Unavailable

2

TUBE, OUTER 1

(22W-23126-L0-00)

Unavailable

3

. INNER TUBE 1

58T-23110-L0-00

Unavailable

4

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

5

O-RING

3J2-23114-00-00

$8.99

6

. CYLINDER, FRTFRK

22W-23170-L0-00

Unavailable

7

.. SPRING, REBOUND

509-23151-L0-00

Unavailable

8

.. RING, PISTON FRONT FORK

22W-23157-L0-00

Unavailable

9

SPRING, FRTFRK HARD

22W-23141-20-00

Unavailable

9

SPRING, FRONT FORK

(22W-23141-L0-00)

Unavailable

10

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

11

. SEAL, DUST

22W-23144-L0-00

Unavailable

12

. BOLT, CAP

22W-23111-L0-00

Unavailable

13

O-RING

3J2-23147-00-00

$9.99

14

AIR VALVE COMP.

23X-23190-L0-00

$67.99

15

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

16

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

17

BOLT, STUD (278)

90116-08261-00

Unavailable

18

GASKET

509-23158-L0-00

Unavailable

19

METAL, SLIDE 1

4HC-23125-20-00

Unavailable

20

WASHER, OIL SEAL

22W-23146-L0-00

Unavailable

21

OIL SEAL

22W-23145-L0-00

Unavailable

22

RING, SNAP

22W-23153-L0-00

Unavailable

23

SPACER

11H-23118-00-00

Unavailable

24

FRONT FORK ASSEMBLY R

(22W-23103-L0-00)

Unavailable

25

TUBE, OUTER 2

(22W-23136-L0-00)

Unavailable

26

. INNER TUBE 1

58T-23110-L0-00

Unavailable

27

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

28

O-RING

3J2-23114-00-00

$8.99

29

. CYLINDER, FRTFRK

22W-23170-L0-00

Unavailable

30

.. SPRING, REBOUND

509-23151-L0-00

Unavailable

31

.. RING, PISTON FRONT FORK

22W-23157-L0-00

Unavailable

32

SPRING, FRTFRK HARD

22W-23141-20-00

Unavailable

32

SPRING, FRONT FORK

(22W-23141-L0-00)

Unavailable

33

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

34

. SEAL, DUST

22W-23144-L0-00

Unavailable

35

. BOLT, CAP

22W-23111-L0-00

Unavailable

36

O-RING

3J2-23147-00-00

$9.99

37

AIR VALVE COMP.

23X-23190-L0-00

$67.99

38

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

39

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

40

BOLT, STUD (278)

90116-08261-00

Unavailable

41

GASKET

509-23158-L0-00

Unavailable

42

METAL, SLIDE 1

4HC-23125-20-00

Unavailable

43

WASHER, OIL SEAL

22W-23146-L0-00

Unavailable

44

OIL SEAL

22W-23145-L0-00

Unavailable

45

RING, SNAP

22W-23153-L0-00

Unavailable

46

SPACER

11H-23118-00-00

Unavailable

47

UNDER BRACKET

22W-23340-L0-33

Unavailable

48

BOLT

97013-08035-00

Unavailable

49

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
