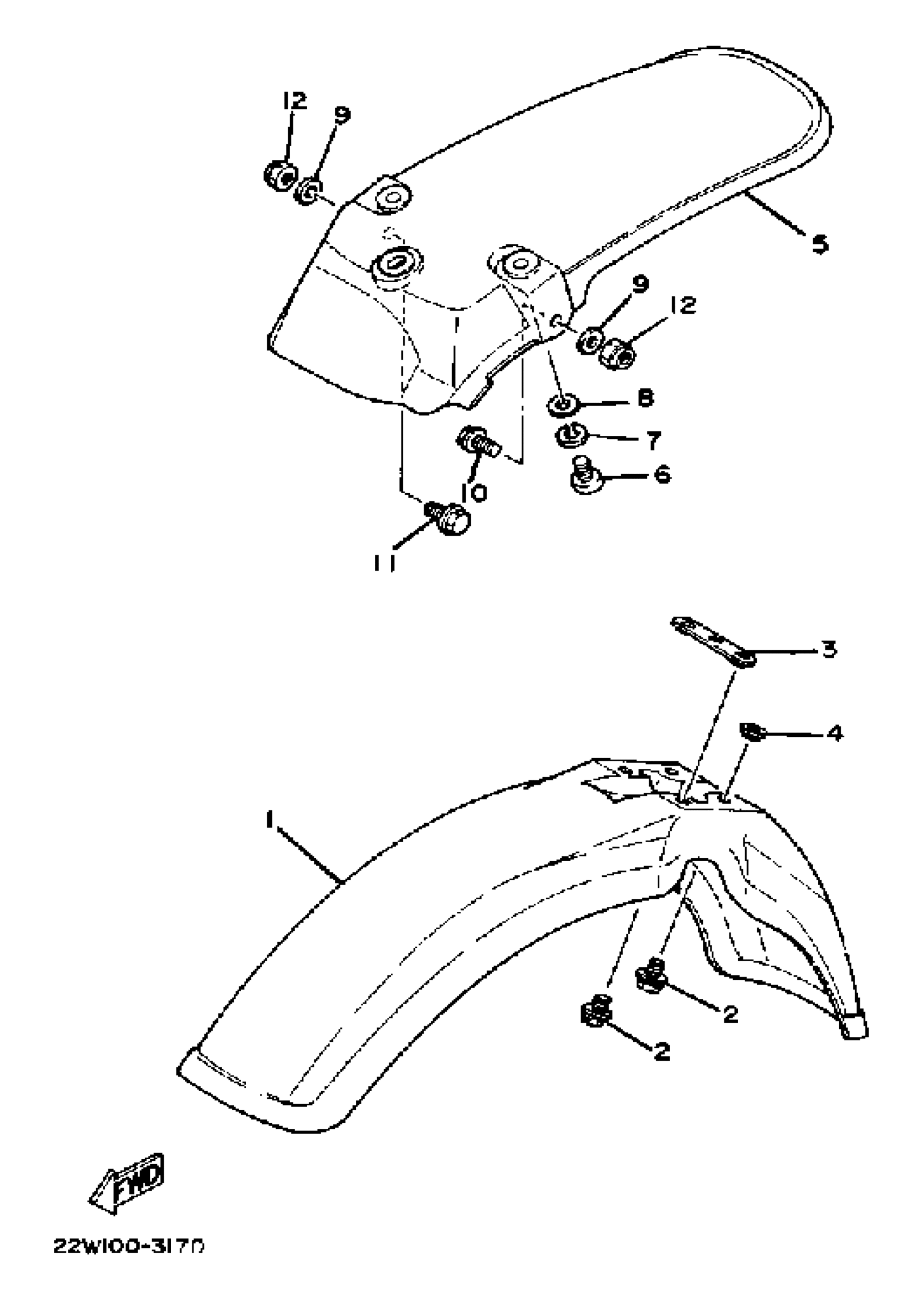

Yamaha YZ80K (YZ80) 1983 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5X2-21511-00-00

Unavailable

2

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

3

PLATE 1

22W-21523-00-00

Unavailable

4

WASHER (3R8)

90209-06187-00

$5.76

5

FENDER, REAR

22W-21611-00-00

Unavailable

6

SCREW, PAN

98507-06014-00

$5.76

7

WASHER, SPRING

92995-06100-00

$2.95

8

WASHER, PLATE

90201-06020-00

$5.86

9

WASHER, PLATE (12X)

90201-087F0-00

$3.46

10

BOLT, FLANGE(4LN)

95817-08025-00

$5.75

11

BOLT, FLANGE(8AB)

95817-08020-00

$6.52

12

NUT, SELF-LOCKING

90185-08169-00

$6.62
