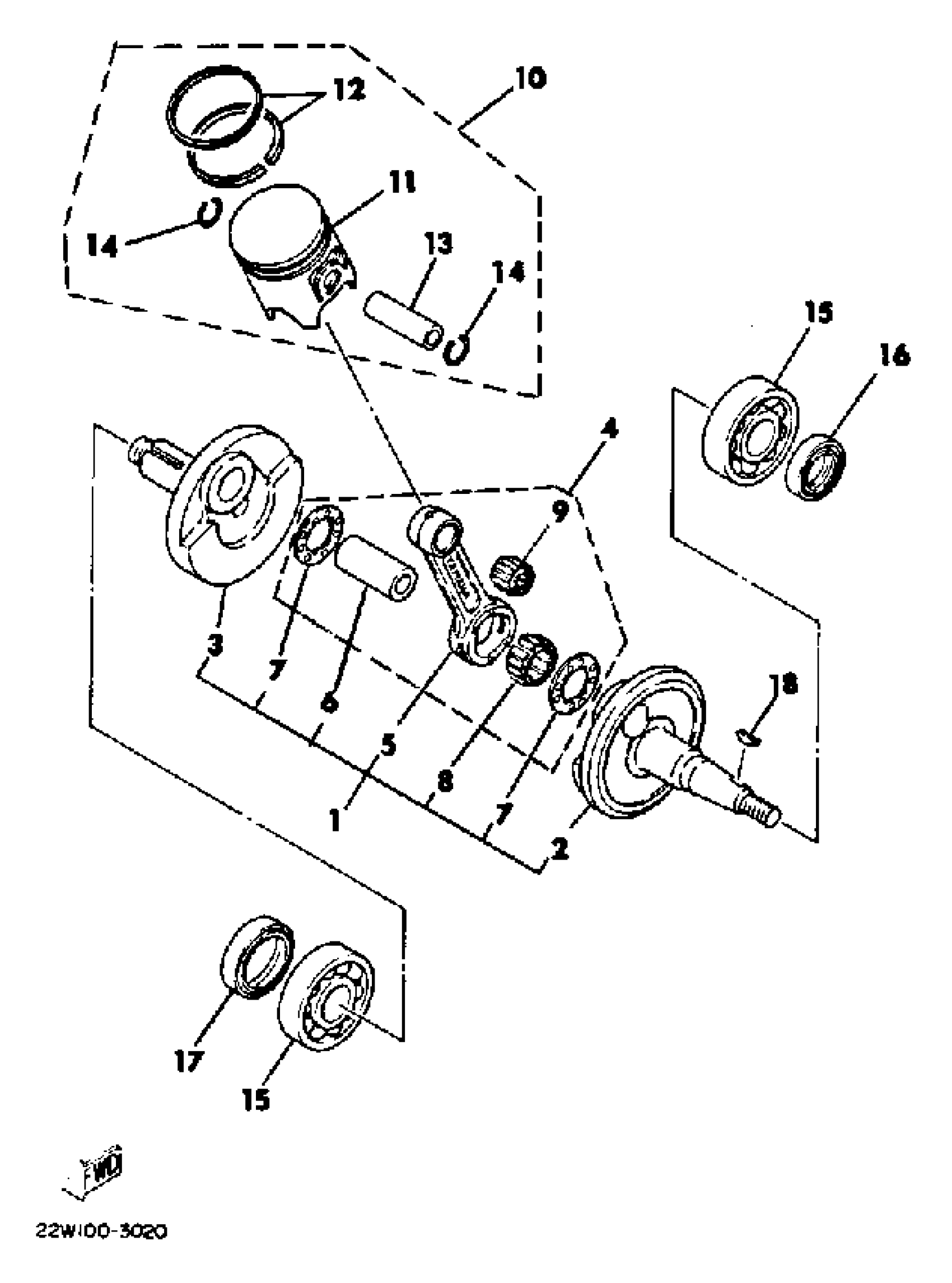

Yamaha YZ80K (YZ80) 1983 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSEMBLY (5X2-11400-00)

22W-11400-00-00

Unavailable

. CRANK 1 (5X2-11412-00)

5X2-11412-01-00

Unavailable

. CRANK 2 (5X2-11422-00)

5X2-11422-01-00

Unavailable

. CONNECTING ROD ASSEMBLY (5X2-11650-00)

22W-11650-00-00

Unavailable

.. ROD, CONNECTING

5X2-11651-00-00

Unavailable

. PIN, CRANK 1

4V0-11681-00-00

Unavailable

WASHER 132116850000

90209-18112-00

$10.49

BEARING, CYLINDRICAL(43K)

93310-418M6-00

Unavailable

. BEARING, CYLINDER#10

93310-212K8-00

Unavailable

PISTON KIT STD

22W-11630-01-00

Unavailable

. PISTON STD (22W-11631-00-94)

22W-11631-01-94

Unavailable

. PISTON RINGSET STD

22W-11601-00-00

Unavailable

PIN, PISTON

527-11633-00-00

$17.49

CIRCLIP(1NM)

93450-13130-00

$8.49

BEARING(4ED)

93306-20468-00

$43.99

OIL SEAL(4BA)

93102-20447-00

Unavailable

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

PISTON RINGSET 1ST

22W-11601-10-00

Unavailable

PISTON RINGSET 2ND

22W-11601-20-00

Unavailable

PISTON RINGSET 3RD

22W-11601-30-00

Unavailable

PISTON RINGSET 4TH

22W-11601-40-00

Unavailable

PISTON KIT 1ST

22W-11630-11-00

Unavailable

PISTON KIT

22W-11630-21-00

Unavailable

PISTON KIT 3RD

22W-11630-31-00

Unavailable

PISTON KIT 4TH

22W-11630-41-00

Unavailable

PISTON 1 O/S 0.25 (22W-11635-00)

22W-11635-01-00

Unavailable

PISTON 2 O/S 0.50 (22W-11636-00)

22W-11636-01-00

Unavailable

PISTON 3 O/S 0.75 (22W-11637-00)

22W-11637-01-00

Unavailable

PISTON 4 O/S 1.00 (22W-11638-00)

22W-11638-01-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
