1997 Yamaha YZ80 (YZ80J1) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1997 Yamaha YZ80 (YZ80J1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

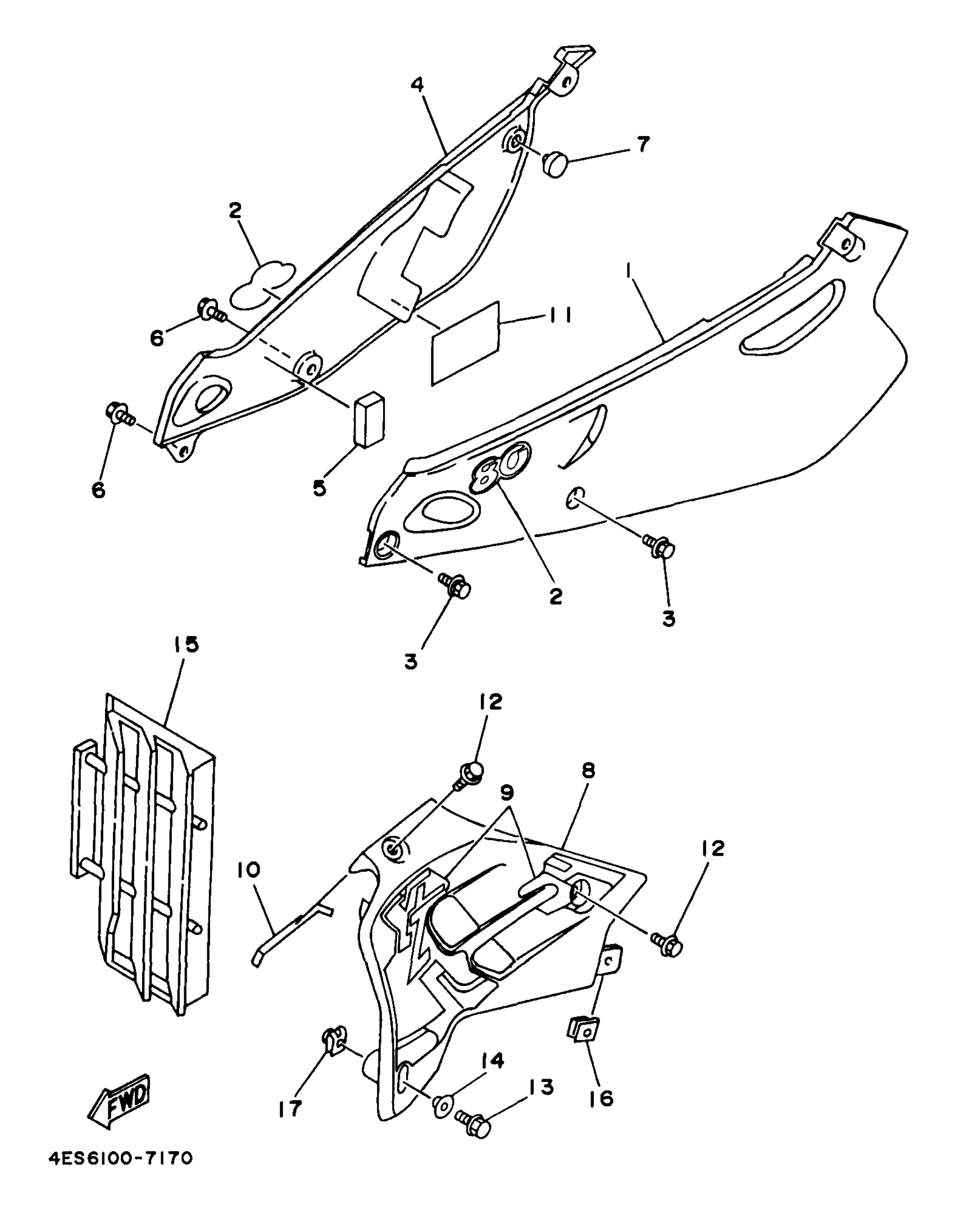

1997 Yamaha YZ80 (YZ80J1) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

4ES-21711-00-00

1
Out of stock

2

GRAPHIC 1

4ES-21781-00-00

1
Out of stock

3

BOLT, WITH WASHER(4ES)

90119-06217-00

1

$5.10

In stock

4

COVER, SIDE 2

4ES-21721-00-00

1
Out of stock

5

SEAL 2

4ES-21735-00-00

1
Out of stock

6

BOLT, WITH WASHER(4ES)

90119-06217-00

1

$5.10

In stock

7

DAMPER, LOCATING 1

22W-24181-00-00

1
Out of stock

8

COVER, SIDE 3

4ES-21731-10-00

1
Out of stock

9

EMBLEM SET

4ES-21790-00-00

1
Out of stock

10

SEAL 1

4ES-21732-00-00

1
Out of stock

11

INSULATOR, SIDE COVER

4DJ-2174A-00-00

1
Out of stock

12

BOLT(4EW)

90109-067F4-00

1

$6.57

In stock

13

BOLT, WASHER BASED(JA9)

90105-06696-00

1

$6.29

In stock

14

C0LLAR

90387-062M9-00

1
Out of stock

15

PANEL 1

4EW-2172A-10-00

1
Out of stock

16

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

17

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock
