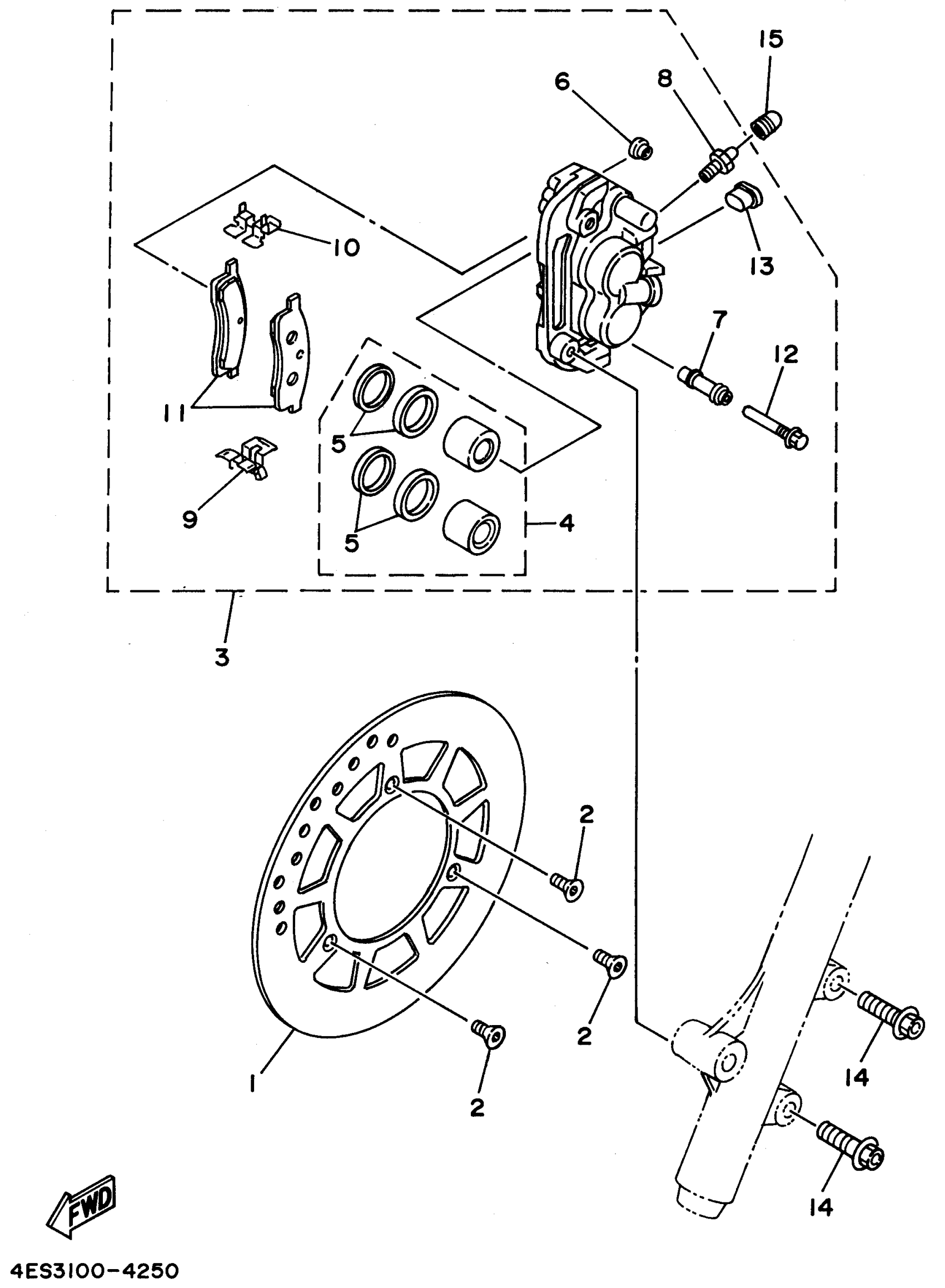

Yamaha YZ80H1 (YZ80H1) 1996 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

4ES-2582T-00-00

Unavailable

2

SCREW, COUNTERSUNK

90151-06080-00

$2.18

3

CALIPER ASSY (LEFT

4ES-2580T-20-00

Unavailable

4

PISTON ASSY, CALIPER

4ES-W0057-10-00

$111.99

5

CALIPER SEAL KIT

4ES-25803-10-00

$61.99

6

BOOT 2

5R2-25937-00-00

$37.99

7

BOOT 2

56A-25937-00-00

$23.99

8

SCREW, BLEED

47X-25824-01-00

$14.49

9

SUPPORT, PAD

56A-25919-00-00

$35.99

10

SUPPORT, PAD

56A-25919-10-00

$32.99

11

BRAKE PAD KIT

4ES-W0045-00-00

Unavailable

12

BOLT

56A-25926-00-00

$14.49

13

CAP, INDICATOR

34X-25845-00-00

$16.49

14

BOLT, WASHER BASED (11H)

90105-08211-00

$3.23

15

CAP

1D7-25825-00-00

$7.99
