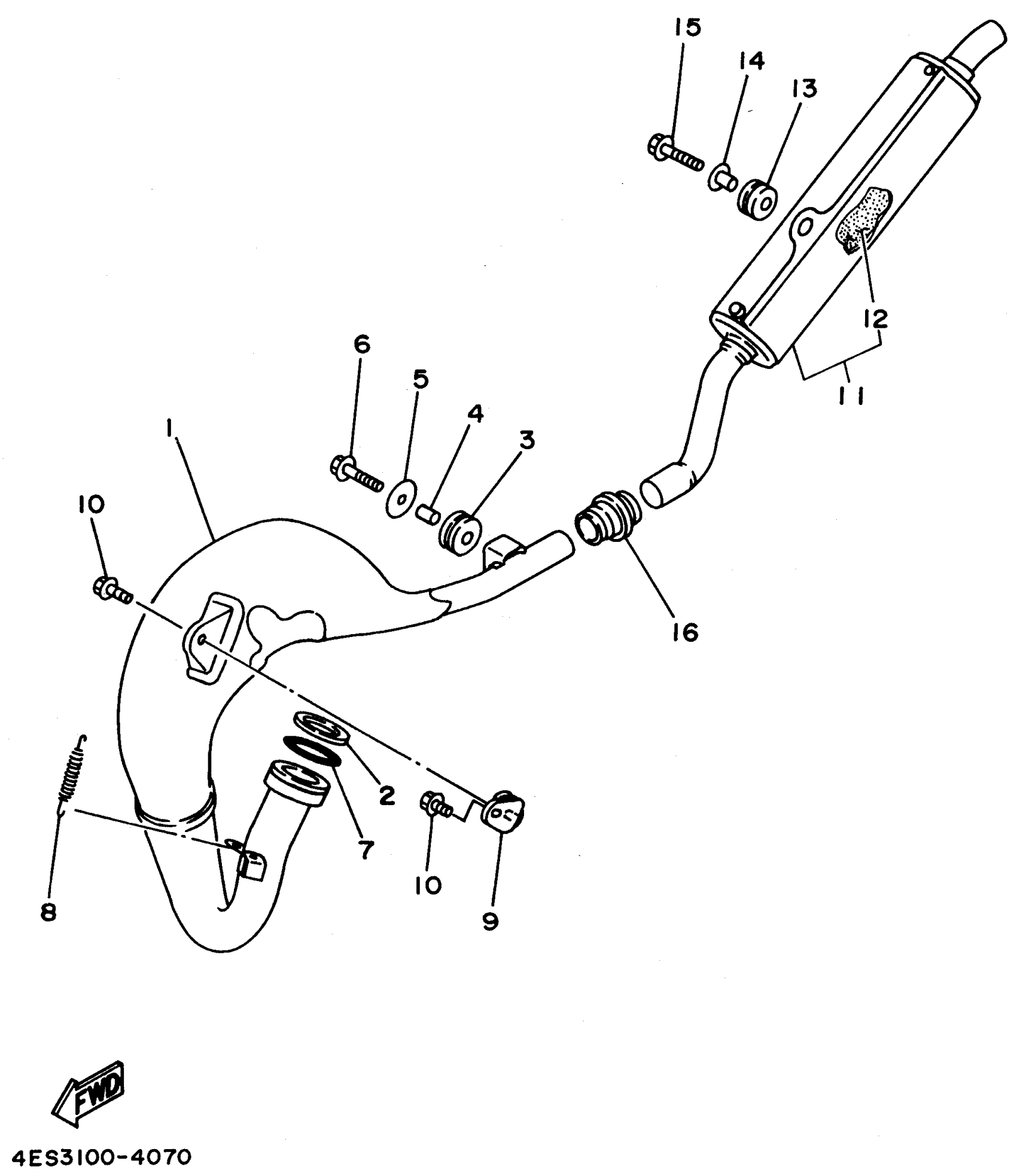

Yamaha YZ80H1 (YZ80H1) 1996 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

4ES-14610-00-00

Unavailable

2

WASHER (8H0)

90201-34683-00

$8.68

3

GROMMET

90480-18411-00

$8.94

4

COLLAR(34X)

90387-105L0-00

$7.46

5

WASHER, PLATE

90201-06086-00

$5.86

6

BOLT, SMALL FLANGE

95027-06025-00

$3.16

7

O-RING(4ES)

93210-371A9-00

$6.55

8

SPRING, TENSION (1W4)

90507-20030-00

$12.53

9

STAY, MUFFLER 1

565-14771-01-00

$16.33

10

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

11

SILENCER, EXHAUST

4ES-14753-30-00

Unavailable

12

FIBER

4ES-1469A-00-00

Unavailable

13

GROMMET(4EW)

90480-16561-00

$14.05

14

COLLAR(52E)

90387-063G3-00

$6.29

15

BOLT, SMALL FLANGE

95027-06025-00

$3.16

16

JOINT, EXHAUST 1

17W-14615-00-00

Unavailable
