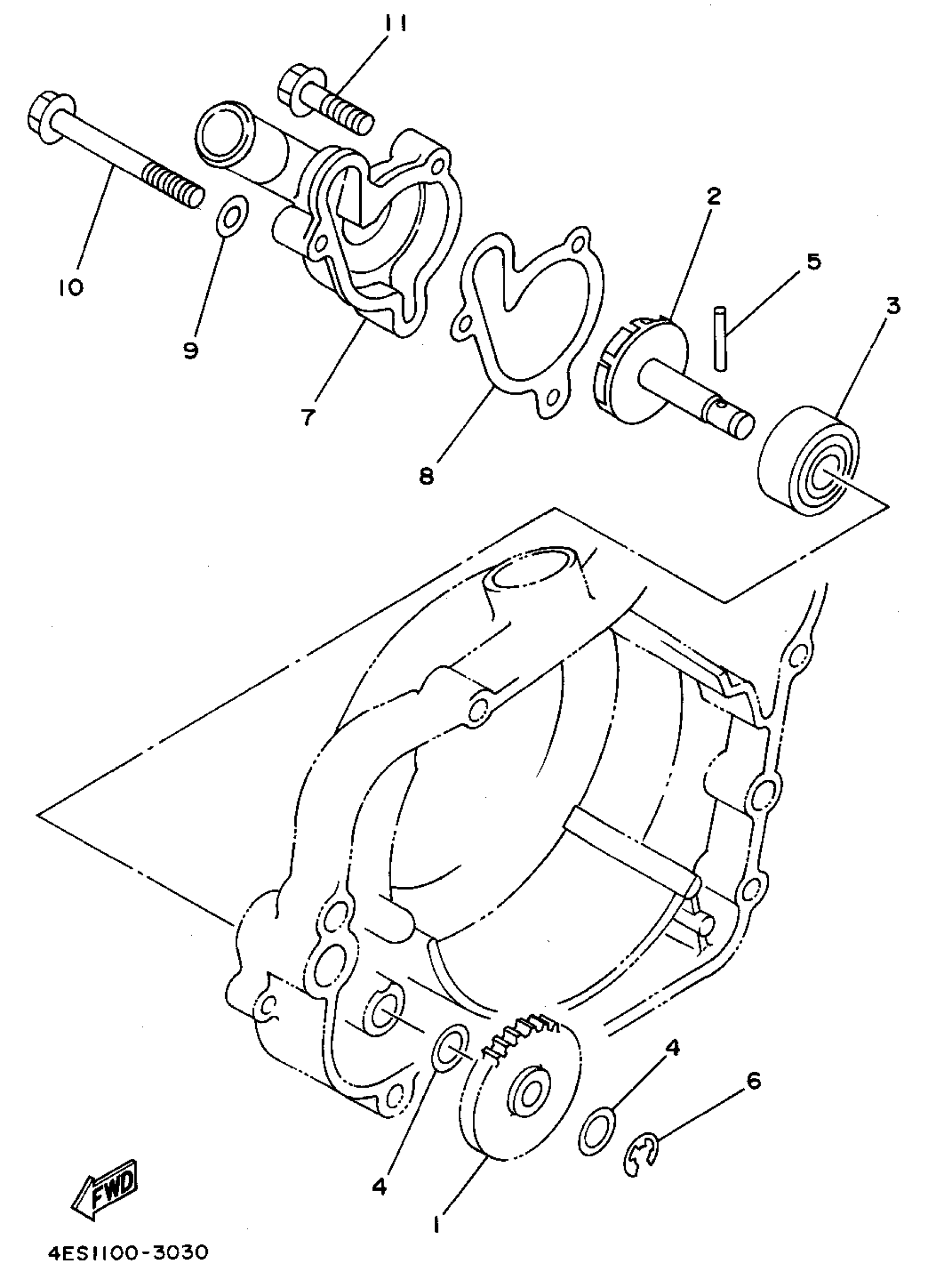

Yamaha YZ80G1 (YZ80G1) 1995 WATER PUMP Diagram

#

Description
Price

1

GEAR, IMPELLER SHAFT

4ES-12459-00-00

Unavailable

2

IMPELLER SHAFT ASSY

36F-12450-00-00

Unavailable

3

OIL SEAL

93103-10011-00

$37.49

4

WASHER, PLATE (5F7)

90201-08512-00

$5.75

5

PIN,DOWEL (137)

93603-22028-00

$2.04

6

CIRCLIP

99080-07600-00

$2.82

7

COVER, HOUSING

4BA-12422-00-00

$87.76

8

GASKET, HOUSING COVER 2

4BA-12428-00-00

$6.29

9

GASKET (4V2)

90430-06166-00

$3.22

10

BOLT, FLANGE

95817-06060-00

$2.60

11

BOLT, SMALL FLANGE

95027-06025-00

$2.95
