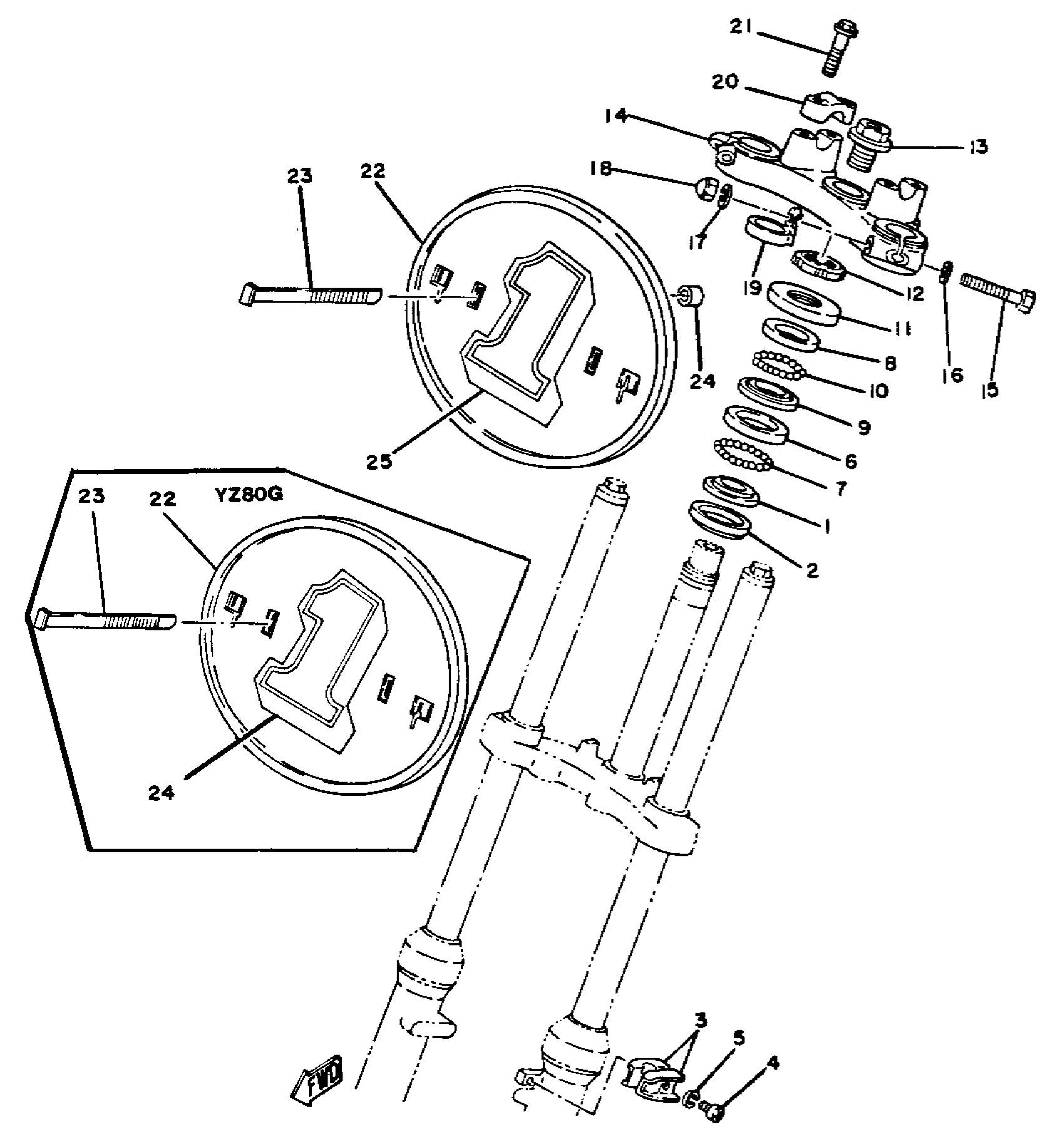

Yamaha YZ80G (YZ80G_H_J) 1980 STEERING YZ80G H Diagram

#

Description
Price

1

RACE, BALL 1

B6E-23411-00-00

$6.54

2

SEAL, DUST

164-23462-00-00

$5.98

3

CLAMP (3R0)

90462-14055-00

$7.77

4

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

5

WASHER, SPRING

92995-06100-00

$2.95

6

RACE, BALL 2

B6E-23412-00-00

$9.05

7

BALL

93501-04011-00

$5.84

8

RACE, BALL 1

BP2-23411-00-00

$7.83

9

RACE, BALL 2

BP2-23412-00-00

$5.33

10

BALL

93503-16003-00

$1.96

11

COVER, BALL RACE

122-23416-00-00

$5.98

12

NUT

90179-25004-00

$19.41

13

BOLT (2A2)

90105-14102-00

$4.81

14

CROWN, HANDLE

(3R1-23435-00-98)

Unavailable

15

BOLT, HEXAGON

97013-08050-00

Unavailable

16

.. WASHER, PLATE

92990-08600-00

$2.17

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

NUT, CROWN

95303-08800-00

Unavailable

19

HOLDER, CABLE

3R1-23317-00-00

Unavailable

20

HOLDER, HANDLE UPPER

1E6-23441-00-00

Unavailable

21

BOLT, FLANGE

95817-08035-00

Unavailable

22

. PLATE, NUMBER

3R0-23485-00-00

Unavailable

23

. BAND

2X4-23489-00-00

Unavailable

24

HOSE

(90446-09158-00)

Unavailable

25

EMBLEM 2

3R1-21782-00-00

Unavailable
