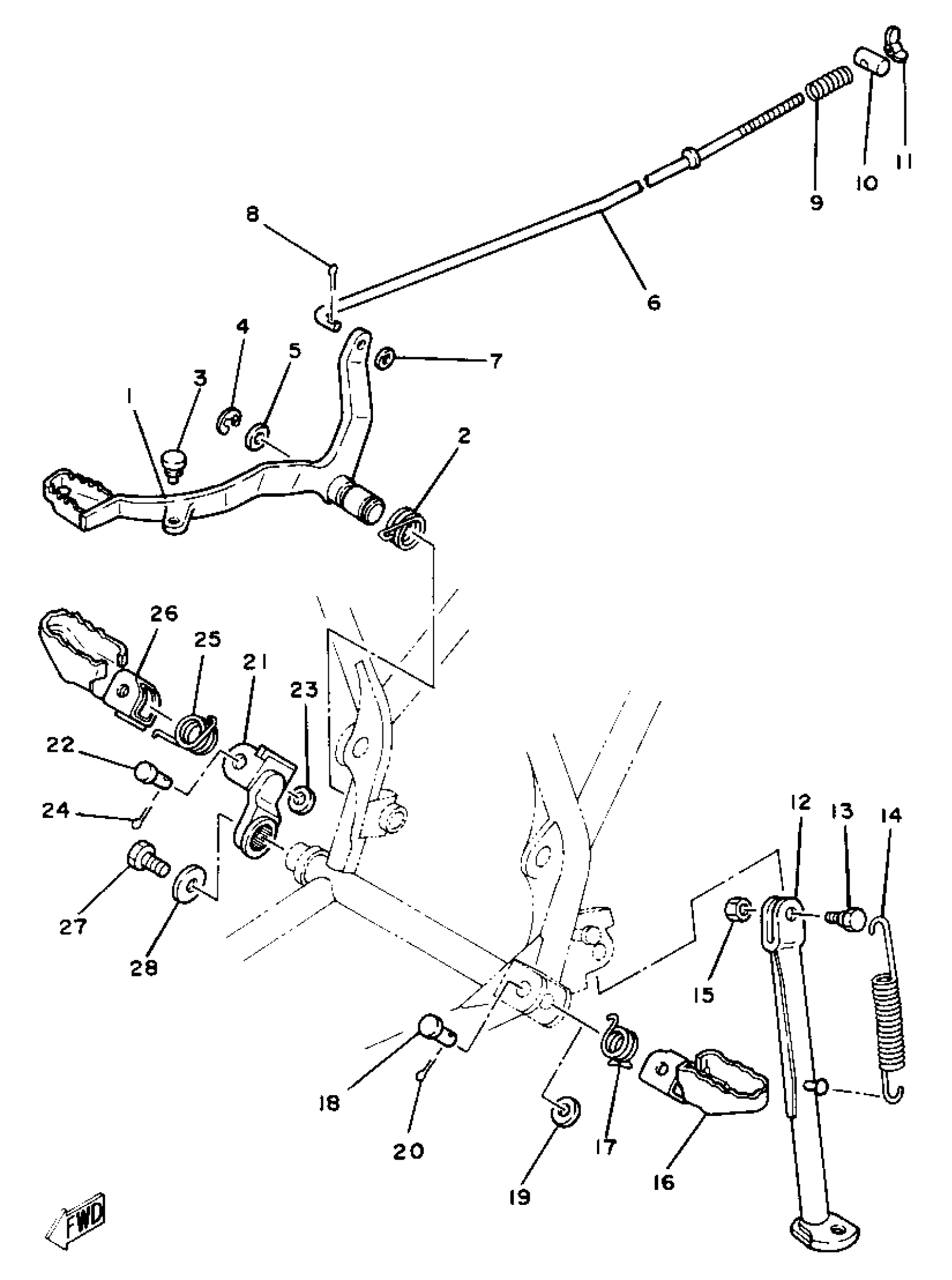

Yamaha YZ80G (YZ80G_H_J) 1980 STAND FOOTREST YZ80H Diagram

#

Description
Price

1

PEDAL, BRAKE

4V1-27211-00-00

Unavailable

2

SPRING, TORSION

90508-32468-00

Unavailable

3

GROMMET

90480-15215-00

Unavailable

4

CIRCLIP(J51)

99080-09600-00

$2.55

5

WASHER, PLATE(663)

92990-12600-00

$8.49

6

ROD, BRAKE (4V1-27231-00)

4V1-27231-01-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, (180-27236-00)

90501-10245-00

$8.49

10

PIN 1562723700

90249-12008-00

$8.49

11

NUT (25K)

90179-06411-00

$8.49

12

STAND, SIDE

4V1-27311-00-R4

Unavailable

13

BOLT 1092537300

90109-08063-00

$10.49

14

SPRING, TENSION (1L9)

90506-26270-00

$15.99

15

. NUT

95380-08700-00

Unavailable

16

FOOTREST 1

22W-27411-01-90

Unavailable

17

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

18

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

Unavailable

20

PIN, COTTER

91490-25020-00

Unavailable

21

BRACKET, FOOTREST 2

4V0-27422-00-33

Unavailable

22

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

26

FOOTREST 2

22W-27421-01-90

Unavailable

27

BOLT,HEXAGON

97017-10016-00

Unavailable

28

WASHER, PLATE

90201-10144-00

Unavailable
