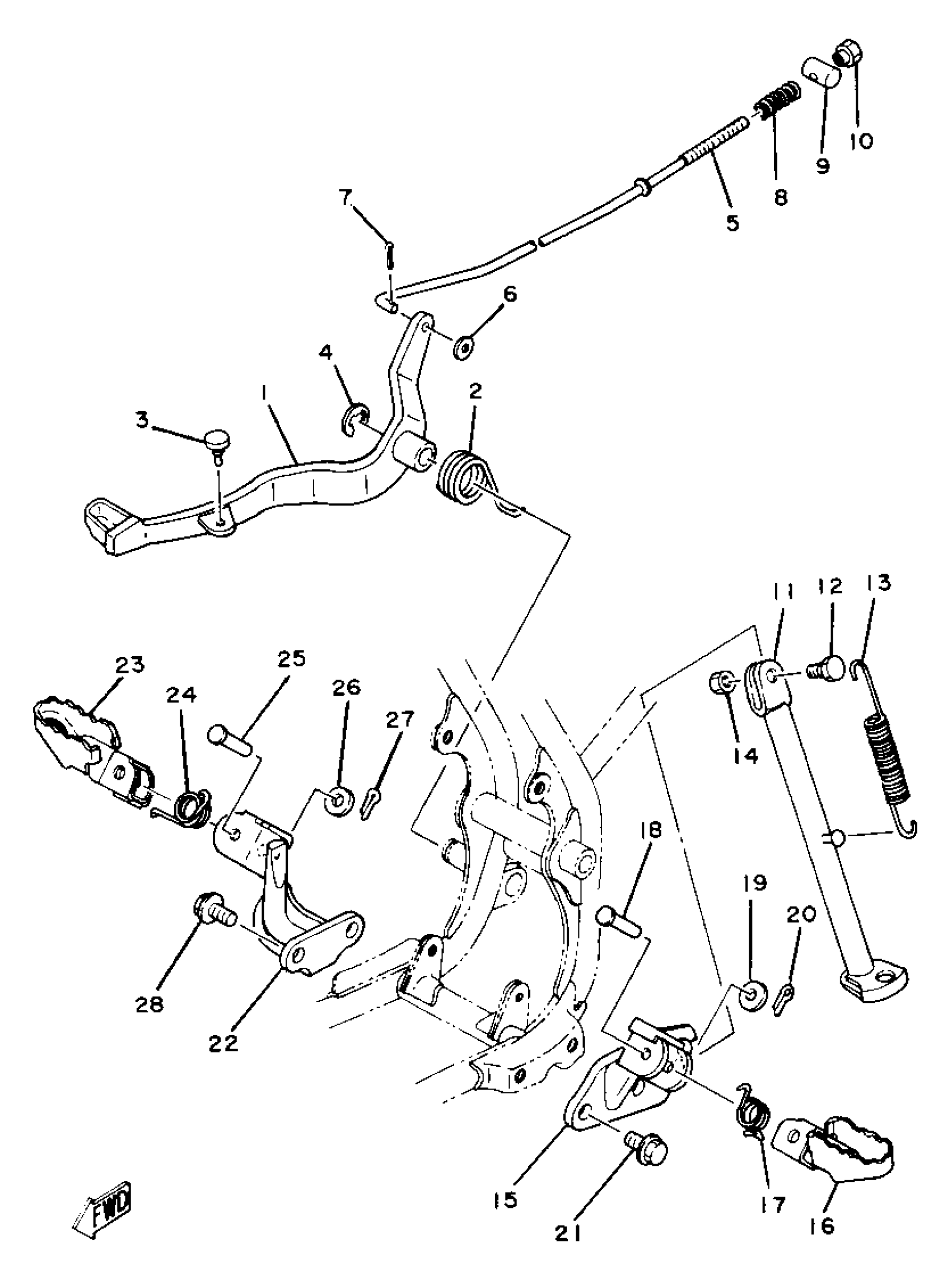

Yamaha YZ80G (YZ80G_H_J) 1980 STAND FOOTREST YZ80G Diagram

#

Description
Price

1

PEDAL, BRAKE

(3R1-27211-00-00)

Unavailable

2

SPRING, TORSION

90508-32417-00

Unavailable

3

GROMMET

90480-15215-00

Unavailable

4

CIRCLIP (122)

93430-12008-00

$8.49

5

ROD, BRAKE (3R1-27231-00)

3R1-27231-01-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

PIN, COTTER

91490-20025-00

$1.99

8

SPRING, (180-27236-00)

90501-10245-00

$8.49

9

PIN 1562723700

90249-12008-00

$8.49

10

NUT (25K)

90179-06411-00

$8.49

11

STAND, SIDE

2J5-27311-00-00

Unavailable

12

BOLT 1092537300

90109-08063-00

$10.49

13

SPRING, TENSION (1L9)

90506-26270-00

$15.99

14

. NUT

95380-08700-00

Unavailable

15

BRACKET, FOOTREST 1

3R1-27412-00-R4

Unavailable

16

FOOTREST 1

22W-27411-01-90

Unavailable

17

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

18

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

Unavailable

20

PIN, COTTER

91490-25020-00

Unavailable

21

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

22

BRACKET, FOOTREST 2

(3R1-27422-01-R4)

Unavailable

23

FOOTREST 2

22W-27421-01-90

Unavailable

24

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

25

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable
