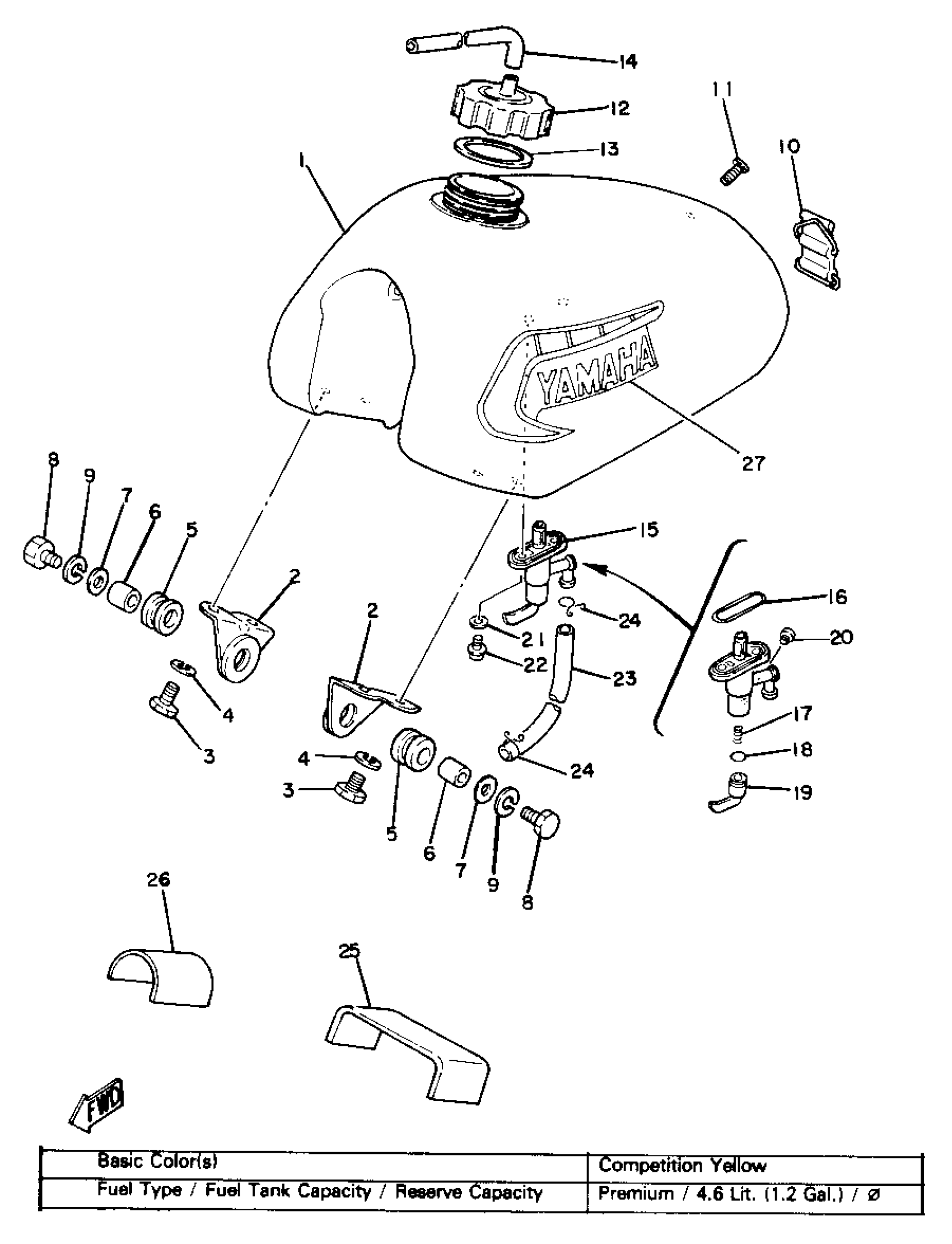

Yamaha YZ80G (YZ80G_H_J) 1980 FUEL TANK YZ80H Diagram

#

Description
Price

1

FUEL TANK

(4V1-24110-00-00)

Unavailable

2

STAY, FUEL TANK 1

(4V1-24157-01-00)

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

WASHER, SPRING

92995-06100-00

Unavailable

5

GROMMET (4V1)

90480-18290-00

$8.49

6

COLLAR (1T2)

90387-07598-00

$5.60

7

WASHER PLATE 137241870000

90201-06072-00

$9.49

8

BOLT, HEXAGON

97017-06030-00

$3.61

9

WASHER, SPRING

92995-06100-00

Unavailable

10

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

11

SCREW, BIND (705)

98980-06016-00

$8.49

12

BODY, CAP

1W1-24611-00-00

Unavailable

13

PACKING, CAP

1W1-24612-00-00

$9.99

14

HOSE (L420)

90445-092K1-00

$12.49

15

FUEL COCK ASSY

2K5-24500-00-00

$86.99

16

GASKET, BODY

214-24512-00-00

Unavailable

17

. SPRING

1A0-24529-01-00

Unavailable

18

O-RING

1A0-24512-00-00

Unavailable

19

. LEVER, COCK

1A0-24524-01-00

Unavailable

20

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

21

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

22

SCREW 256241430000

90149-06011-00

Unavailable

23

HOSE (L370)

90445-112E1-00

Unavailable

24

CLIP

90467-100A1-00

Unavailable

25

DAMPER, LOCATING 1

(3R1-24181-00-00)

Unavailable

26

DAMPER, SIDE COVER

26H-21746-00-00

Unavailable

27

GRAPHIC SET

(4V1-24240-09-00)

Unavailable
