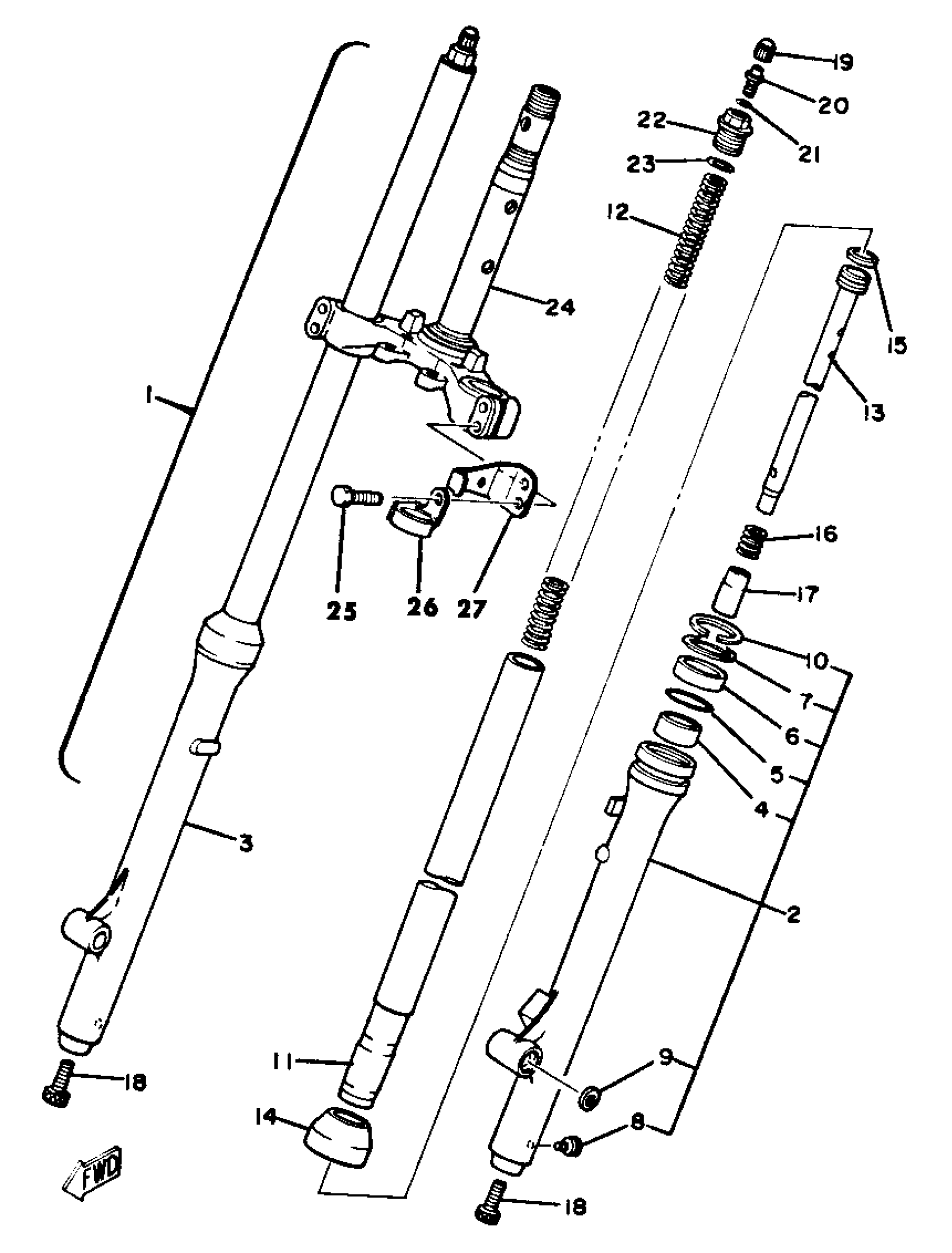

Yamaha YZ80G (YZ80G_H_J) 1980 FRONT FORK YZ80J Diagram

#

Description

Price

1

UNAVAILABLE IN PRICE BOOK

[5X-22310-1L-00

Unavailable

2

FORK UNIT ASSEMBLY

(4V1-23130-L0-00)

Unavailable

3

. FORK UNIT ASSEMBLY 2

4V1-23140-L0-00

Unavailable

4

.. METAL, SLIDE 2

4V1-23135-L0-00

Unavailable

5

.. O-RING

4V1-23147-L0-00

Unavailable

6

OIL SEAL (10W)

93110-30013-00

Unavailable

7

.. WASHER, OIL SEAL

4V1-23146-L0-00

Unavailable

8

PLUG, DRAIN

2A6-23119-00-00

$8.99

9

. WASHER, SPECIAL

462-23392-02-00

Unavailable

10

.. CLIP, OIL SEAL

1E7-23156-00-00

Unavailable

11

. INNER TUBE 1

4V1-23110-L0-93

Unavailable

12

SPRING

(4V1-23351-L0-00)

Unavailable

12

SPRING, FRTFRK HARD

(5X2-23351-10-00)

Unavailable

13

PISTON, FRONT FORK

(5X2-23171-L0-00)

Unavailable

14

. SEAL, DUST

4V1-23144-L0-00

Unavailable

15

RING, PISTON FRONT FORK

1E7-23157-00-00

Unavailable

16

SPRING, REBOUND

(2X6-23151-00-00)

Unavailable

17

. SPACER, OIL LOCK

1L9-23166-00-00

Unavailable

18

BOLT

3M7-23181-00-00

Unavailable

19

CAP, AIR VALVE

4V1-23184-L0-00

Unavailable

20

. AIR VALVE

5K7-23190-00-00

Unavailable

21

O-RING (26H)

93210-06632-00

Unavailable

22

. BOLT, CAP

4V1-23111-L0-00

Unavailable

23

. GASKET

1E7-23114-00-00

Unavailable

24

. UNDER BRACKET

5X2-23340-L0-90

Unavailable

25

BOLT, FLANGE(3EF)

95024-08035-00

Unavailable

26

. HOLDER, CABLE

5X2-23317-00-00

Unavailable

27

. STAY

5X2-2317E-00-00

Unavailable
