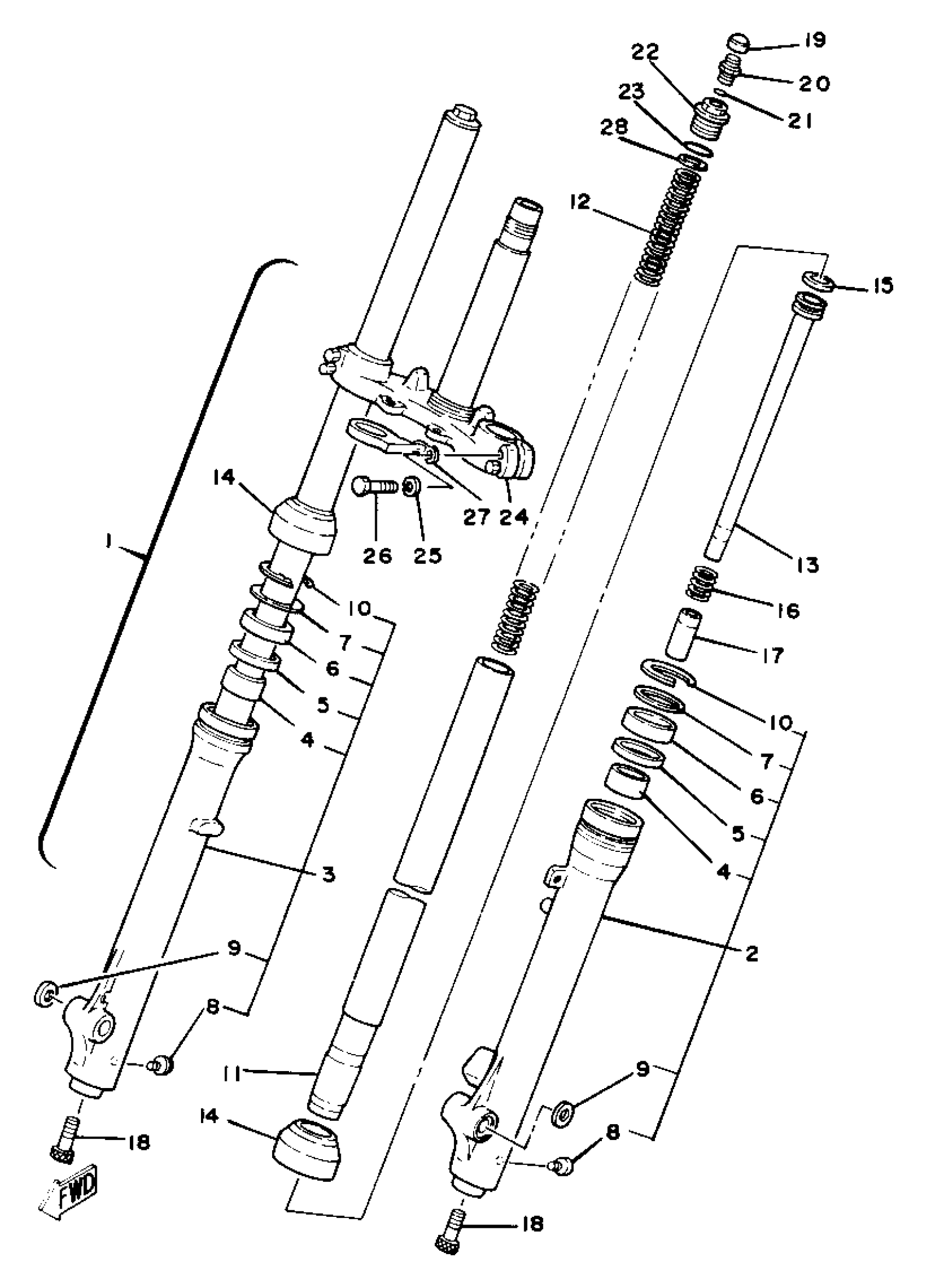

Yamaha YZ80G (YZ80G_H_J) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(4V1-23101-L0-00)

Unavailable

2

FORK UNIT ASSEMBLY

(4V1-23130-L0-00)

Unavailable

3

. FORK UNIT ASSEMBLY 2

4V1-23140-L0-00

Unavailable

4

.. METAL, SLIDE 2

4V1-23135-L0-00

Unavailable

5

.. O-RING

4V1-23147-L0-00

Unavailable

6

OIL SEAL (10W)

93110-30013-00

Unavailable

7

.. WASHER, OIL SEAL

4V1-23146-L0-00

Unavailable

8

PLUG, DRAIN

2A6-23119-00-00

$8.99

9

. WASHER, SPECIAL

462-23392-02-00

Unavailable

10

.. CLIP, OIL SEAL

1E7-23156-00-00

Unavailable

11

. INNER TUBE 1

4V1-23110-L0-93

Unavailable

12

SPRING

(4V1-23351-L0-00)

Unavailable

13

SEAT, SPRING LOWER

(4V1-23143-L0-00)

Unavailable

14

. SEAL, DUST

4V1-23144-L0-00

Unavailable

15

RING, PISTON FRONT FORK

1E7-23157-00-00

$6.99

16

SPRING, REBOUND

(2X6-23151-00-00)

Unavailable

17

. SPACER, OIL LOCK

1L9-23166-00-00

Unavailable

18

BOLT

3M7-23181-00-00

Unavailable

19

CAP, AIR VALVE

4V1-23184-L0-00

Unavailable

20

. AIR VALVE

5K7-23190-00-00

Unavailable

21

O-RING (26H)

93210-06632-00

Unavailable

22

. BOLT, CAP

4V1-23111-L0-00

Unavailable

23

. GASKET

1E7-23114-00-00

Unavailable

24

UNDER BRACKET

(3R1-23340-00-90)

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

26

BOLT(3JP)

97024-08035-00

Unavailable

27

. HOLDER, CABLE

4V1-23317-00-00

Unavailable

28

COLLAR

(4V1-23113-00-00)

Unavailable
