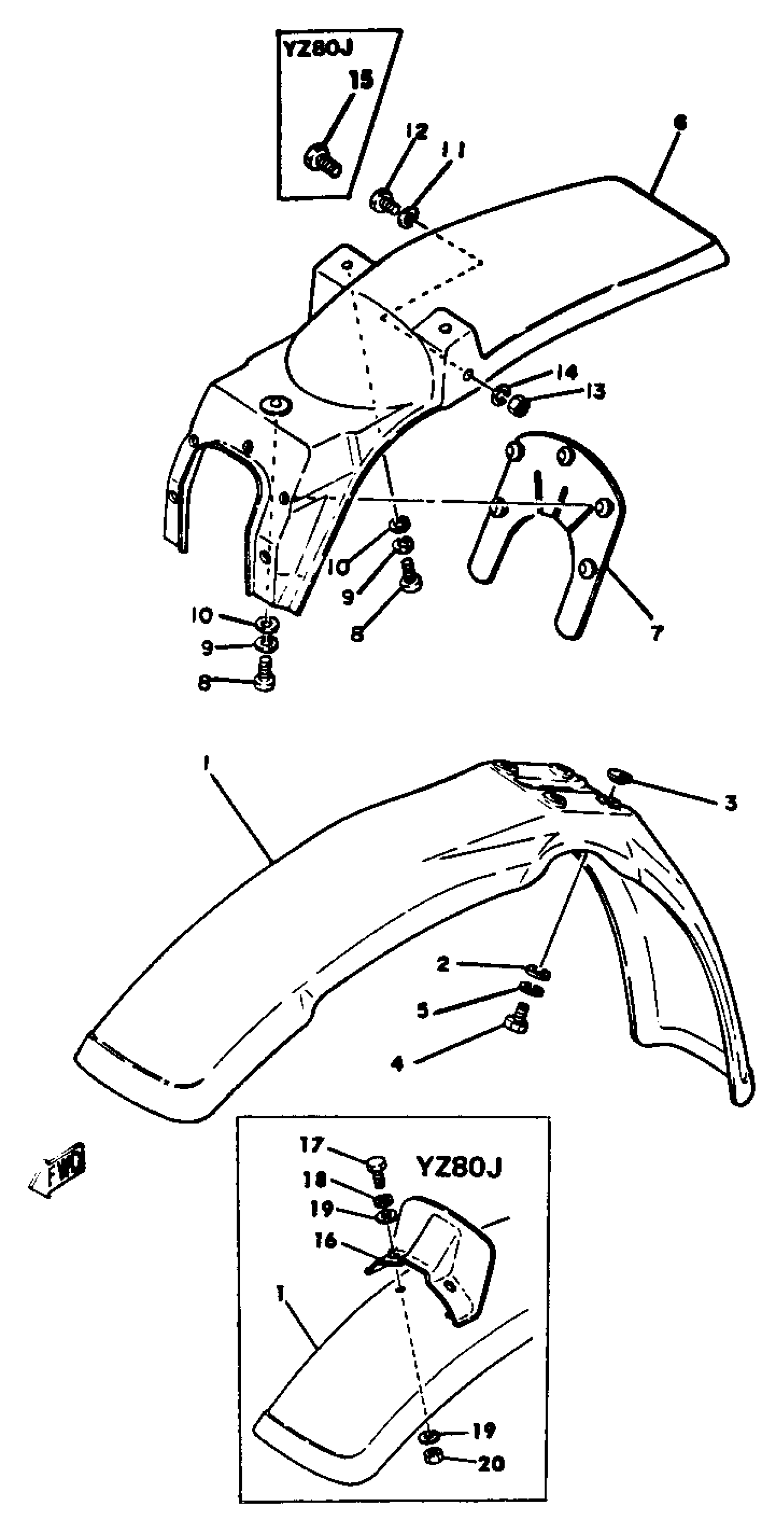

Yamaha YZ80G (YZ80G_H_J) 1980 FRONT FENDER REAR FENDR YZ80H J Diagram

#

Description
Price

1

FENDER, FRONT

3R1-21511-00-00

Unavailable

1

FENDER, FRONT

5X2-21511-00-00

Unavailable

2

WASHER, PLATE

90201-06020-00

$5.86

3

WASHER (3R8)

90209-06187-00

$5.76

4

BOLT(3DM)

97024-06020-00

$5.75

5

WASHER, SPRING

92995-06100-00

$2.95

6

FENDER, REAR

4V1-21611-00-00

Unavailable

7

FLAP

4V1-21621-00-00

Unavailable

8

SCREW, PAN

98507-06014-00

$5.76

9

WASHER, SPRING

92995-06100-00

$2.95

10

WASHER, PLATE

90201-06380-00

$0.54

10

WASHER, PLATE

90201-06020-00

$5.86

11

WASHER, PLATE (5J0)

90201-085E6-00

$5.77

11

WASHER, PLATE (12X)

90201-087F0-00

$3.46

12

BOLT, HEXAGON

97013-08020-00

$1.43

12

BOLT, HEXAGON

97013-08020-00

$1.43

13

NUT, CROWN

95303-08800-00

Unavailable

13

NUT(6L2)

95333-08600-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

15

BOLT, HEXAGON

97301-08022-00

Unavailable

16

PLATE 1

5X2-21543-00-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, SPRING

92995-06100-00

$2.95

19

WASHER, PLATE

90201-06M08-00

$2.16

20

NUT, SELF-LOCKING

95617-06100-00

Unavailable
