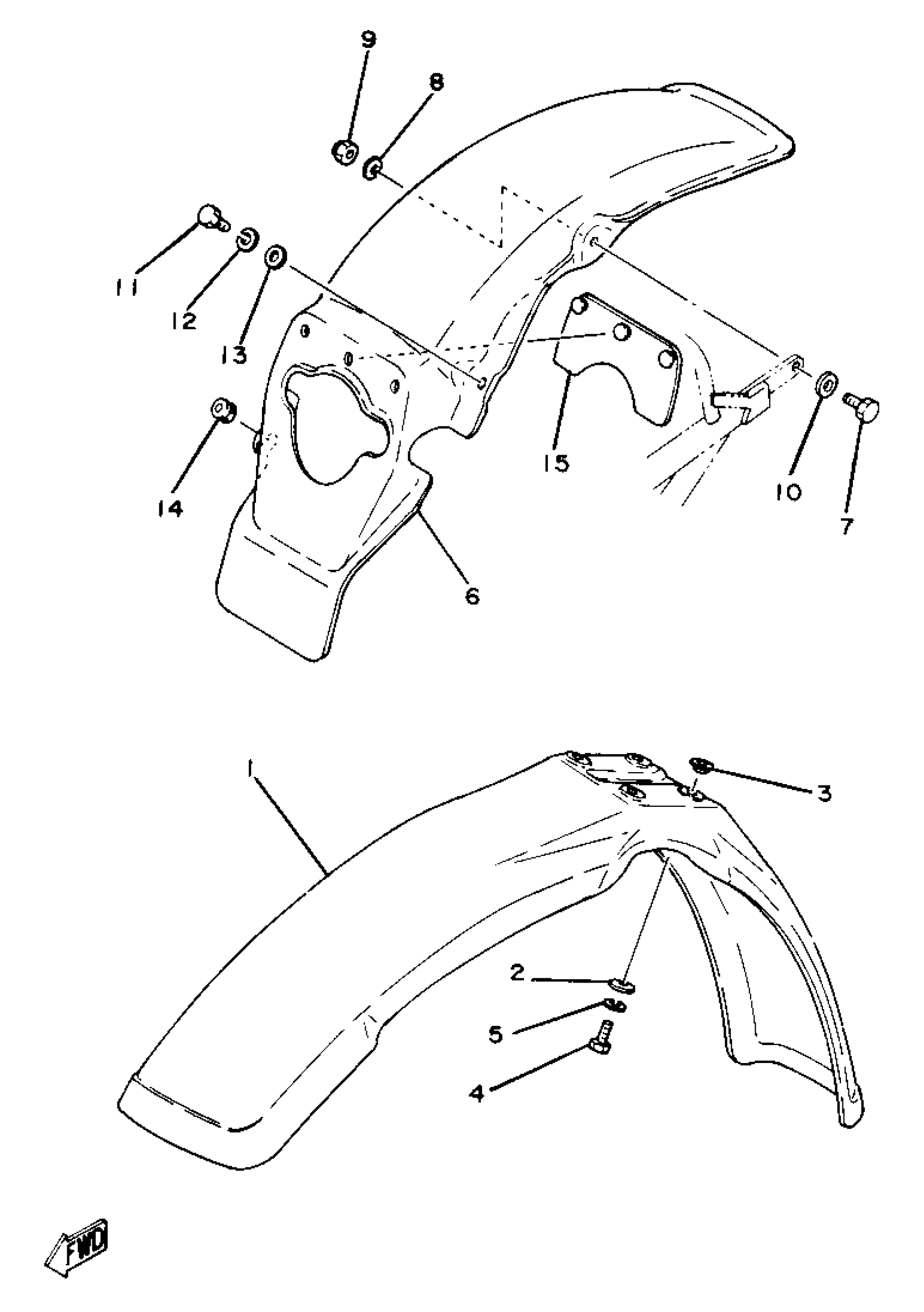

Yamaha YZ80G (YZ80G_H_J) 1980 FRONT FENDER REAR FENDER YZ80G Diagram

#

Description
Price

1

FENDER, FRONT

3R1-21511-00-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.60

3

WASHER (3R8)

90209-06187-00

$8.49

4

BOLT(3DM)

97024-06020-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

FENDER, REAR

3R1-21611-00-00

Unavailable

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

WASHER, PLATE

90201-06380-00

$0.60

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLATE

90201-06380-00

$0.60

14

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

15

GUARD, MUD

(2X6-21629-00-00)

Unavailable
