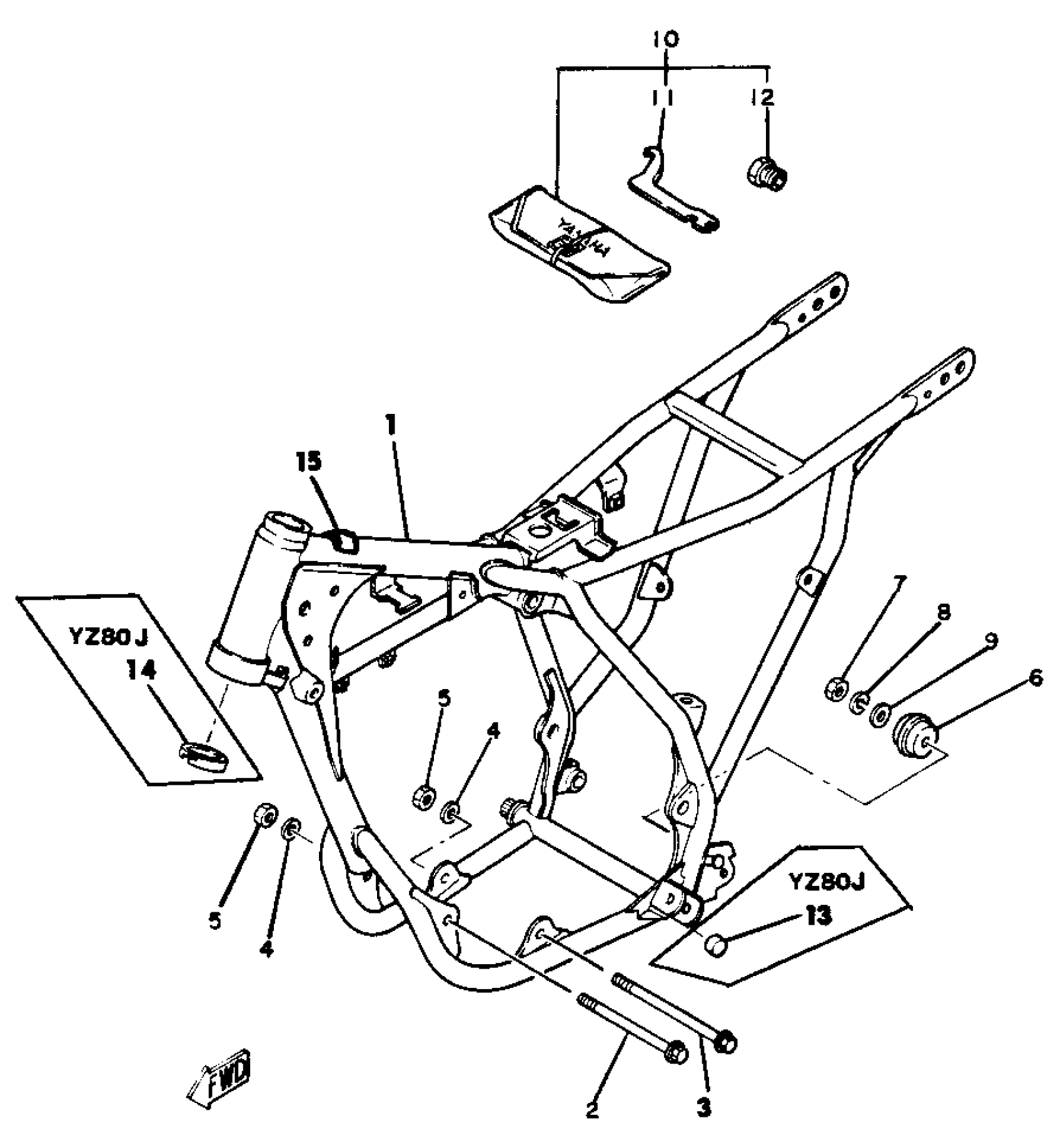

Yamaha YZ80G (YZ80G_H_J) 1980 FRAME TOOL YZ80H J Diagram

#

Description
Price

1

FRAME

(4V1-21110-01-33)

Unavailable

1

FRAME

(5X2-21110-00-33)

Unavailable

2

BOLT

90105-08024-00

$7.49

3

BOLT, WASHER BASED

90105-08189-00

Unavailable

4

WASHER, PLAIN

92990-08200-00

Unavailable

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

6

TENSIONER

2K6-22178-00-00

Unavailable

6

TENSIONER

2X6-22178-00-00

Unavailable

7

NUT(6L2)

95333-08600-00

$2.49

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE

90201-06M08-00

Unavailable

9

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

10

TOOL KIT

5X2-28100-00-00

Unavailable

11

SPANNER, SPECIAL

10V-28135-00-00

Unavailable

12

PULLER, ROTOR

(2K7-85555-00-00)

Unavailable

13

PLUG

90339-11001-00

Unavailable

14

SEAL, STEERING (5X2-23462-00)

5X2-23462-01-00

Unavailable

15

DAMPER, LOCATING 4

5X2-24184-00-00

Unavailable
