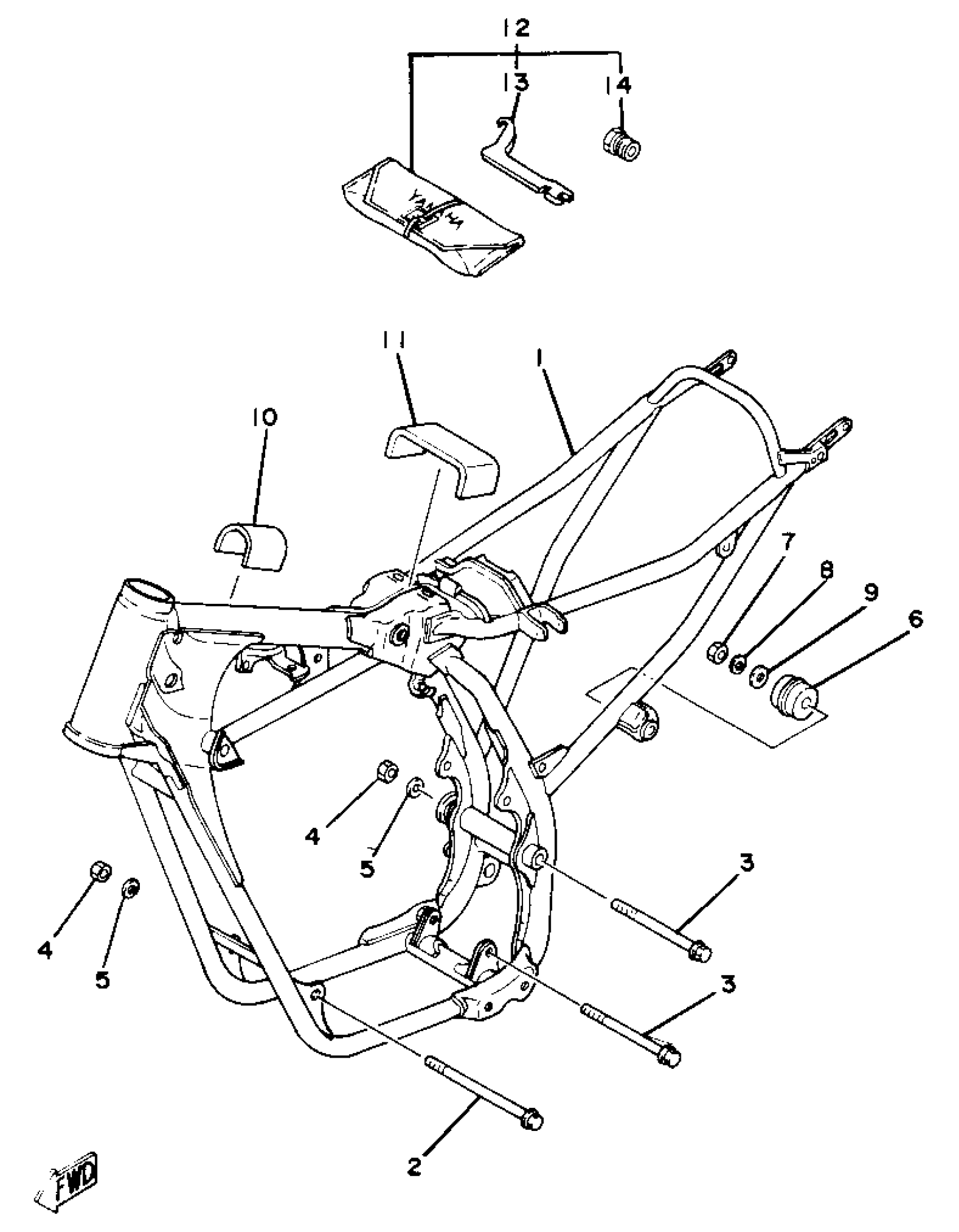

Yamaha YZ80G (YZ80G_H_J) 1980 FRAME TOOL YZ80G Diagram

#

Description

Price

1

FRAME

(3R1-21110-00-33)

Unavailable

2

BOLT, FLANGE

95817-08125-00

$9.49

3

BOLT,WASHER BASED

90105-08100-00

Unavailable

4

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

TENSIONER

2X6-22178-00-00

Unavailable

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE

90201-06M08-00

Unavailable

10

DAMPER, LOCATING 3

(3R1-24183-00-00)

Unavailable

11

DAMPER, LOCATING 1

(3R1-24181-00-00)

Unavailable

12

TOOL KIT

(2X6-28100-10-00)

Unavailable

13

SPRING SEAT WRENCH

(1M1-28137-00-00)

Unavailable

14

PULLER, ROTOR

(2K7-85555-00-00)

Unavailable
