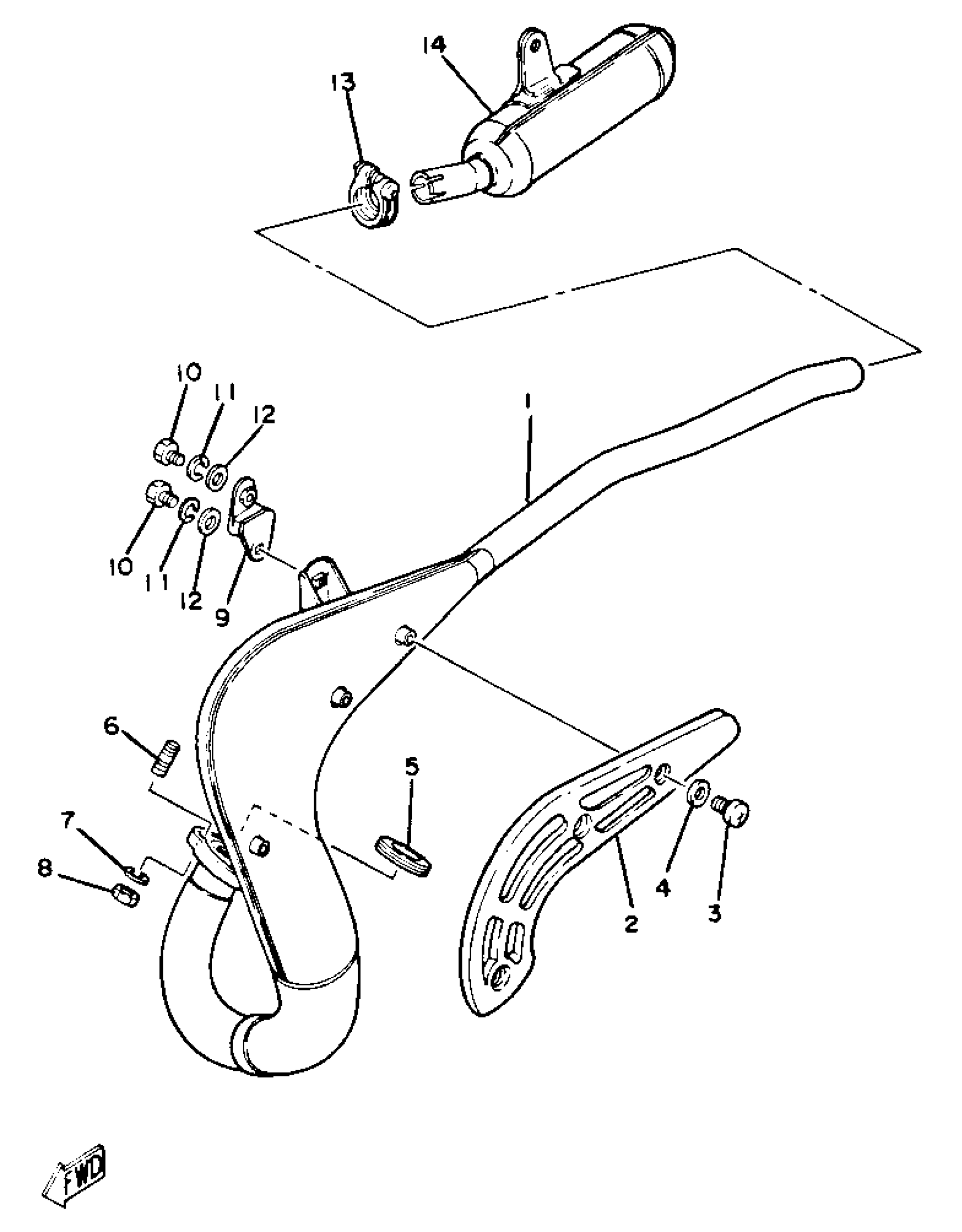

Yamaha YZ80G (YZ80G_H_J) 1980 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

5X2-14610-00-00

Unavailable

2

PROTECTOR, MUFF 1

5X2-14718-00-00

Unavailable

3

SCREW, BIND(2TV)

98980-06008-00

$0.58

4

WASHER, PLATE(3MB)

90202-05187-00

$1.01

5

GASKET, EXHAUST PIPE

3PA-14613-10-00

$12.08

6

BOLT, STUD (17W)

90116-08408-00

Unavailable

7

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

8

NUT(6L2)

95333-08600-00

$2.98

9

STAY, MUFFLER 1

565-14771-01-00

$15.57

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

11

WASHER, SPRING

92995-06100-00

$2.95

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

BAND, SILENCER

3R0-14788-00-00

Unavailable

14

SILENCER, EXHAUST

5X2-14753-00-00

Unavailable
