CRANKSHAFT PISTON YZ80G

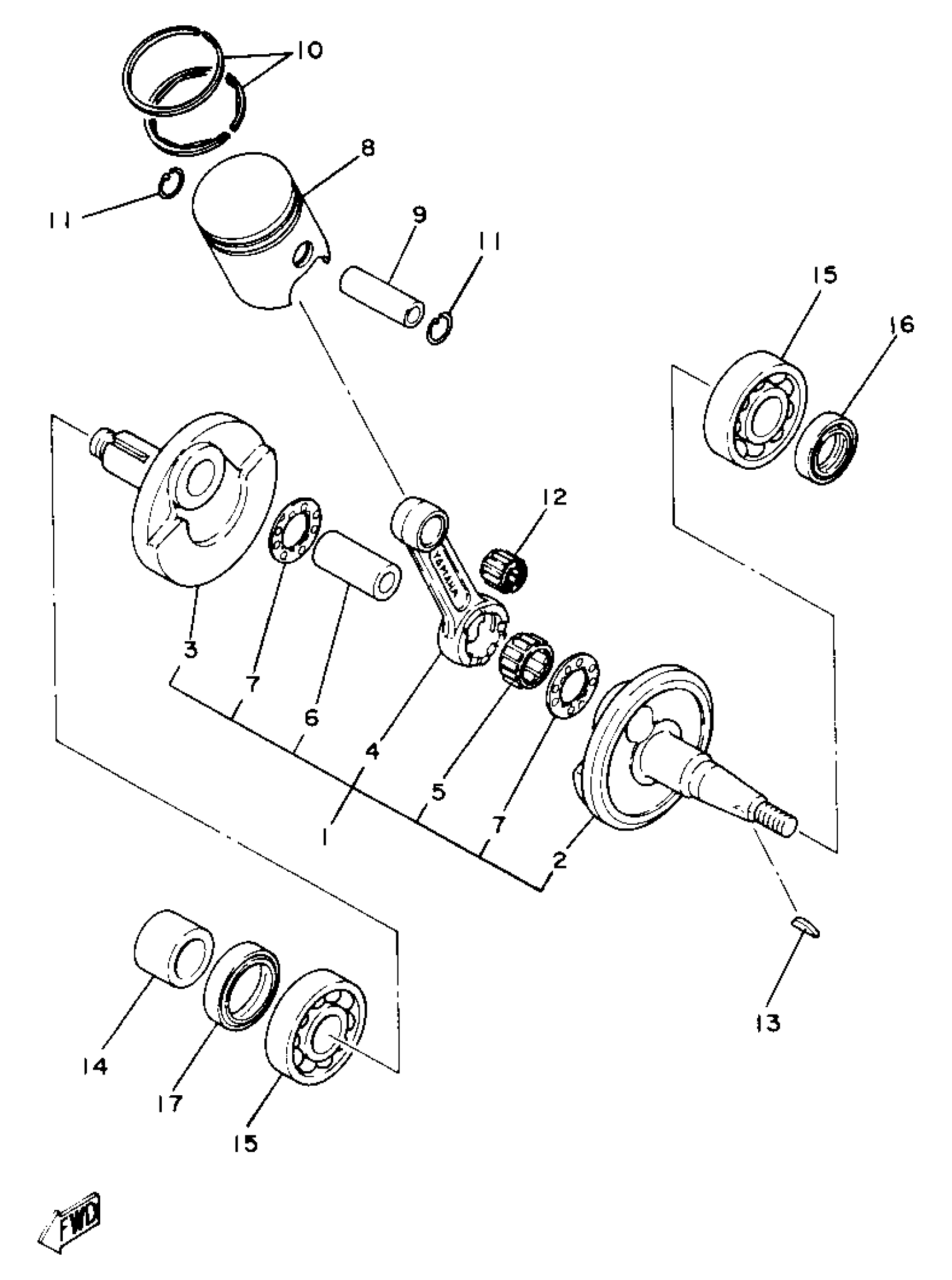

Yamaha YZ80G (YZ80G_H_J) 1980 CRANKSHAFT PISTON YZ80G Diagram
#
1
CRANKSHAFT ASSEMBLY
3R1-11400-00-00
Unavailable
1
CONNECTING ROD ASSEMBLY
3R1-11650-00-00
Unavailable
2
. CRANK 1
3R1-11412-00-00
Unavailable
3
. CRANK 2
3R1-11422-00-00
Unavailable
6
. PIN, CRANK 1
3R1-11681-00-00
Unavailable
8
PISTON KIT STD
(3R1-11630-02-00)
Unavailable
8
PISTON KIT 1ST
(3R1-11630-12-00)
Unavailable
8
PISTON KIT 2ND (3R1-11630-20) (2ND O/S)
3R1-11630-22-00
Unavailable
8
PISTON KIT 3RD
(3R1-11630-32-00)
Unavailable
8
PISTON STD (STD)
3R1-11631-02-97
Unavailable
8
PISTON 1 O/S 0.25 (1ST O/S 0.25MM)
3R1-11635-02-00
Unavailable
8
PISTON 2 O/S 0.50YZ80G (2ND O/S 0.50MM)
3R1-11636-02-00
Unavailable
8
PISTON 3 O/S 0.75 (3RD O/S 0.75MM)
3R1-11637-02-00
Unavailable
8
PISTON 4 O/S 1.00 (4TH O/S)
3R1-11638-02-00
Unavailable
8
PISTON 4 O/S 1.00 (4TH O/S)
3R1-11638-02-00
Unavailable
9
PIN, PISTON
527-11633-00-00
Unavailable
10
PISTON RINGSET STD
5T8-11603-00-00
Unavailable
10
PISTON,RINGSET 1ST
5T8-11604-00-00
Unavailable
10
PISTON RINGSET 2ND
5T8-11605-00-00
Unavailable
10
PISTON RINGSET 3RD
5T8-11606-00-00
Unavailable
10
PISTON RINGSET 4TH
5T8-11607-00-00
Unavailable
11
CIRCLIP 132116340000
93450-13022-00
Unavailable
12
BRG,CYL-CAL ROLLER 5G TM
93310-11268-00
Unavailable
13
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
14
COLLAR
2X6-11478-00-00
Unavailable
15
BEARING(1GJ)
93306-20458-00
Unavailable
16
OIL SEAL (20X35X7-136)
93102-20009-00
Unavailable
17
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
