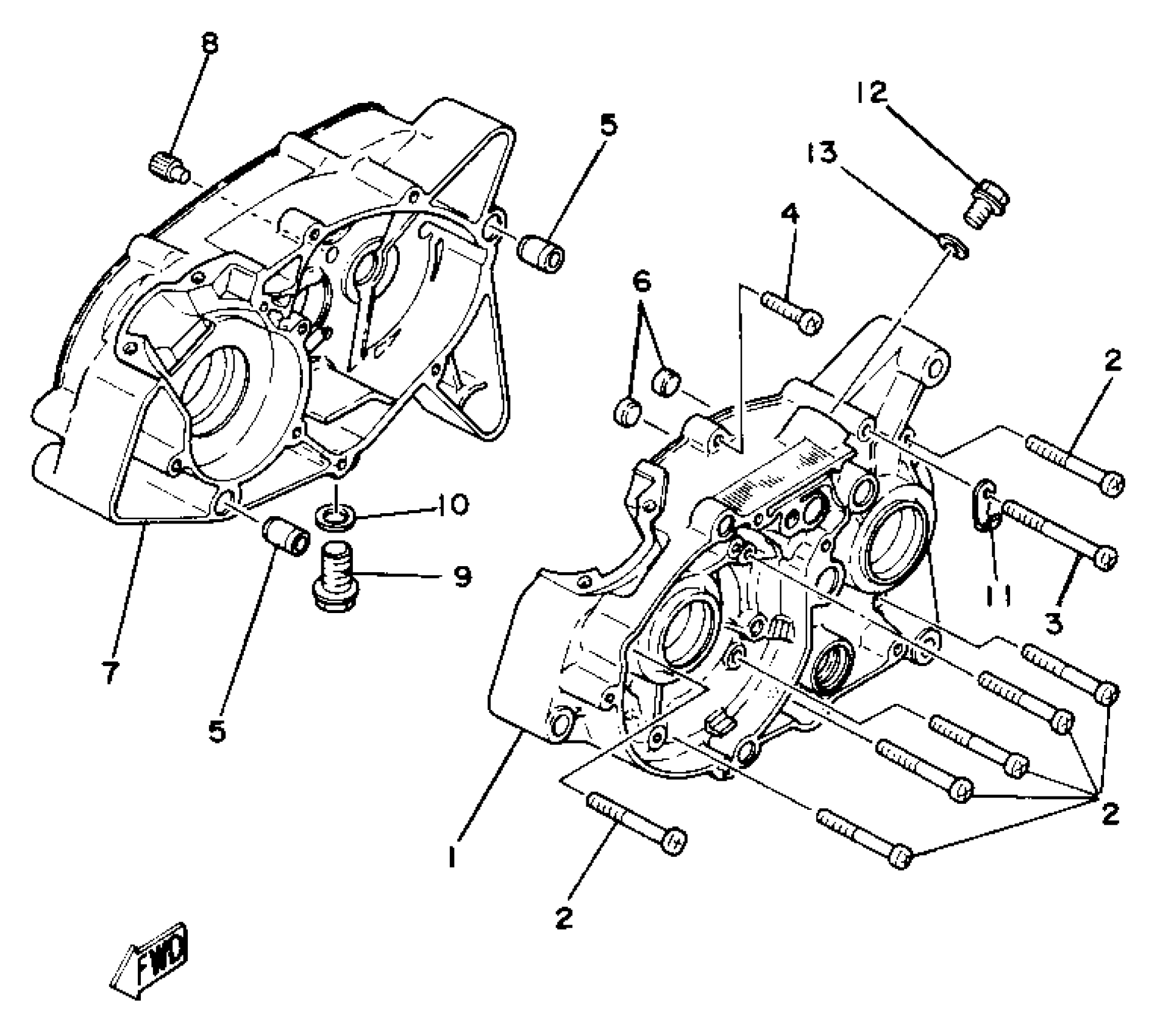

Yamaha YZ80G (YZ80G_H_J) 1980 CRANKCASE YZ80G Diagram

#

Description
Price

1

CRANKCASE 1

3R1-15111-00-00

Unavailable

2

SCREW PAN HEAD

98580-06550-00

$5.75

3

SCREW, PANHED (GC2)

98580-06555-00

$4.75

4

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

5

PIN, DOWEL

99530-12016-00

$3.85

6

PLUG, STRAIGHT

90334-12009-00

Unavailable

7

CRANKCASE 2

(2X6-15121-00-00)

Unavailable

8

STOPPER

492-15387-00-00

Unavailable

9

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$6.26

10

GASKET (3JD1)

90430-12207-00

$6.32

11

CLAMP 2

(2X6-15484-00-00)

Unavailable

12

PLUG STRAIGTSCREW 367185880000

90340-10003-00

$7.90

13

GASKET (5R6)

90430-10171-00

$2.52
