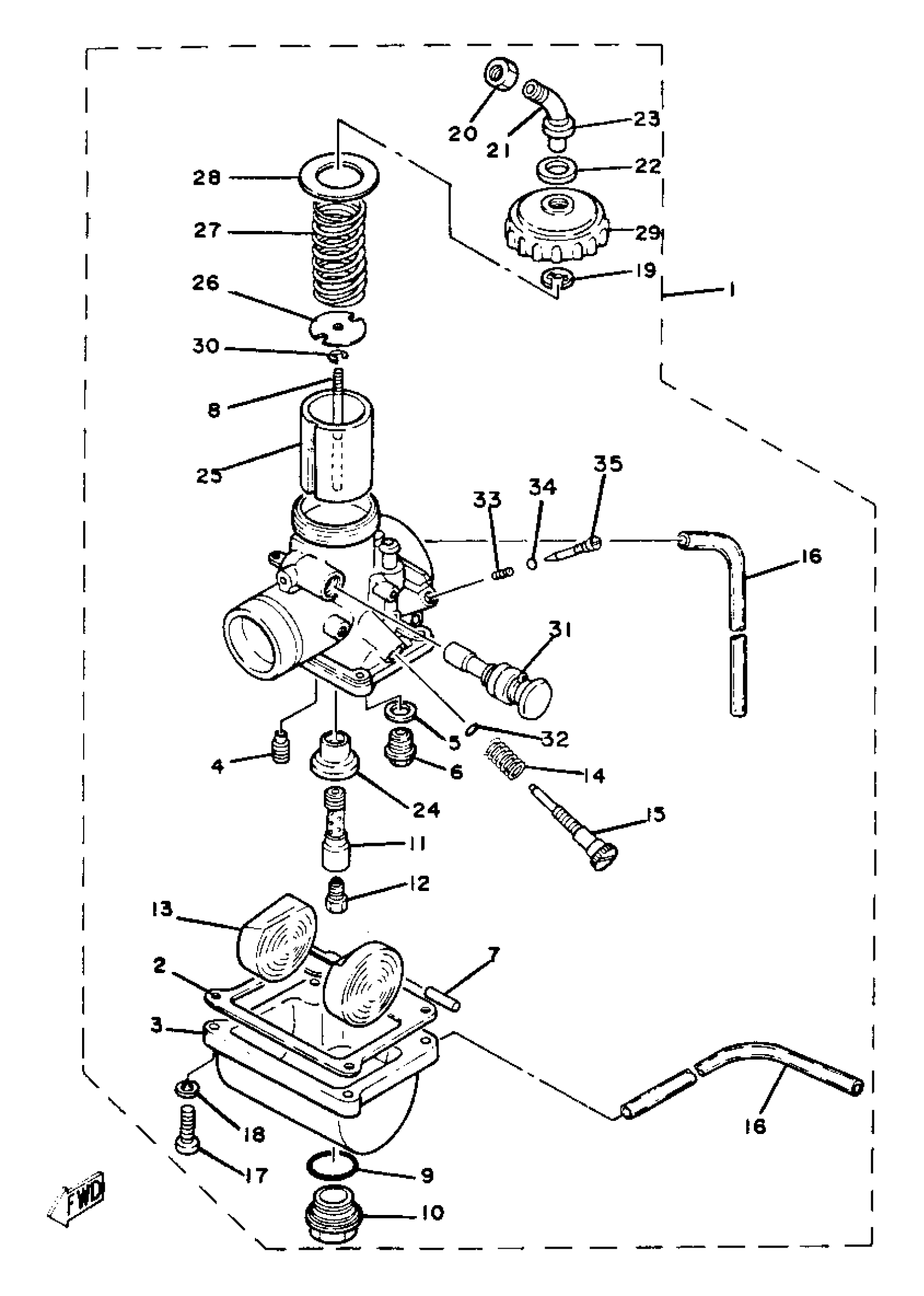

Yamaha YZ80G (YZ80G_H_J) 1980 CARBURETOR YZ80J Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

5X2-14101-00-00

Unavailable

2

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

3

. BODY, FLOAT CHMBR 1

539-14181-08-00

Unavailable

4

JET, PILOT (# 35)

260-14142-35-00

$9.99

5

WASHER, VALVE SEAT

214-14195-00-00

$7.99

6

NEEDLE VALVE SET

23L-14107-25-00

$42.99

7

PIN, FLOAT

127-14186-00-00

$6.65

8

NEEDLE

166-14116-13-00

$22.99

9

O-RING

3JE-14561-00-00

$16.49

10

. PLUG, SCREW

3R1-14115-00-00

Unavailable

11

. NOZZLE, MAIN

3R1-14141-30-00

Unavailable

12

JET, MAIN #200

137-14143-40-A1

$13.49

12

JET, MAIN #210

137-14143-42-A1

Unavailable

12

JET, MAIN #220

137-14143-44-A1

$11.99

13

FLOAT

314-14185-00-00

$66.99

14

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

15

. SCREW, THROTTLE

493-14122-00-00

Unavailable

16

PIPE

23F-14197-00-00

Unavailable

17

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

18

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

19

CLIP

363-14137-00-00

Unavailable

20

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

21

CABLE ADJUST SCREW SET

10X-14106-00-00

Unavailable

22

GASKET

509-14198-00-00

Unavailable

23

CAP

3X3-14169-00-00

Unavailable

24

WASHER, MAIN JET

(3R1-14153-00-00)

Unavailable

25

. VALVE, THROTTLE 1

2X6-14112-20-00

Unavailable

26

. STOPPER, CABLE

246-14132-00-00

Unavailable

27

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

28

GASKET

2A6-14126-00-00

Unavailable

29

. TOP, MIXING CHAMBER

2A6-14158-00-00

Unavailable

30

CLIP

3FA-14137-00-00

Unavailable

31

PLUNGER, STARTER

4U5-14171-00-00

Unavailable

32

O-RING

214-14147-00-00

Unavailable

33

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

34

O-RING (493-CARB.)

354-14147-00-00

Unavailable

35

AIR SCREW SET

10W-14104-00-00

Unavailable
