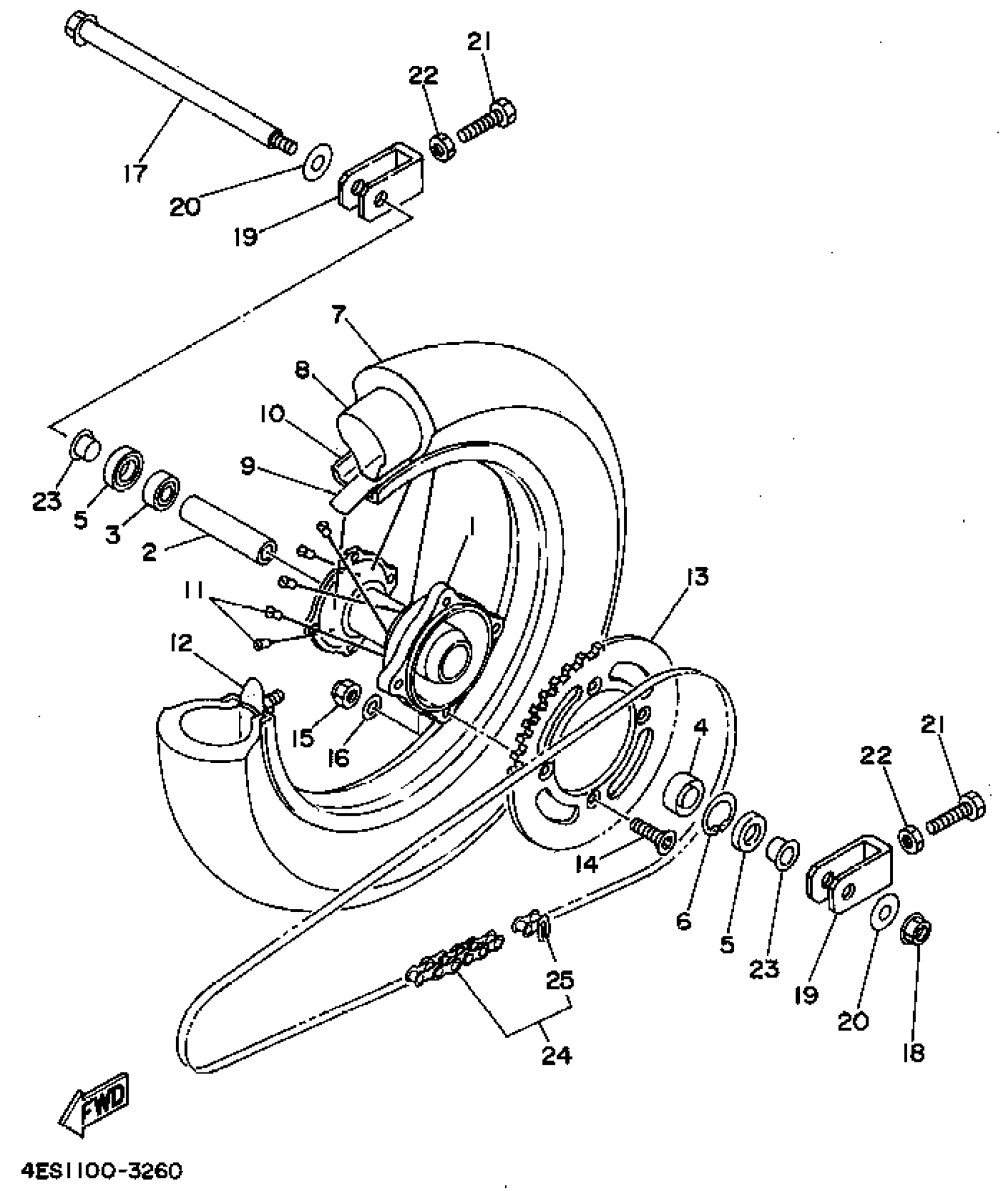

Yamaha YZ80F1 (YZ80F1) 1994 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

4ES-25311-00-00

$302.99

2

COLLAR, WHEEL

4ES-25383-00-00

$27.99

3

BRG,R-B 6002RS 32MM 30G KY

93306-00201-00

$37.99

4

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

5

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

6

CIRCLIP(47Y)

99009-35500-00

$8.49

7

TIRE (90/100-14 49M K695) (94109-147Y6-00 )

94190-141K5-00

Unavailable

8

TUBE (80-90/100-14 TR4)(4ES)

94208-14285-00

$25.99

9

BAND, RIM (1K8)

94327-14076-00

$10.49

10

RIM (1.60-14)(4ES)

94416-14529-00

Unavailable

11

SPOKE SET, REAR

4ES-25304-20-00

$92.99

12

SPACER, BEAD

5X2-25394-00-00

$39.99

13

SPROCKET, DRIVEN (46T)

4ES-25446-00-XX

Unavailable

13

SPROCKET, DRIVEN (47T)

4ES-25447-00-XX

Unavailable

13

SPROCKET, DRIVEN (48T)

4ES-25448-00-XX

Unavailable

13

SPROCKET, DRIVEN (49T)

4ES-25449-00-XX

Unavailable

13

SPROCKET, DRIVEN (50T)

4ES-25450-00-XX

Unavailable

14

BOLT(1TJ)

90109-081G2-00

Unavailable

15

NUT, U

95617-08100-00

Unavailable

16

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

17

AXLE, WHEEL

4ES-25381-01-00

Unavailable

18

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

19

PULLER, CHAIN 1

5PA-25388-00-00

Unavailable

20

WASHER, PLATE

90201-161R1-00

Unavailable

21

BOLT

90101-08060-00

Unavailable

22

. NUT

95380-08700-00

Unavailable

23

COLLAR, WHEEL

4ES-25383-10-00

Unavailable

24

CHAIN(DID428G-118)

9Y581-58117-00

Unavailable

25

JOINT, CHAIN

94682-00001-00

Unavailable
