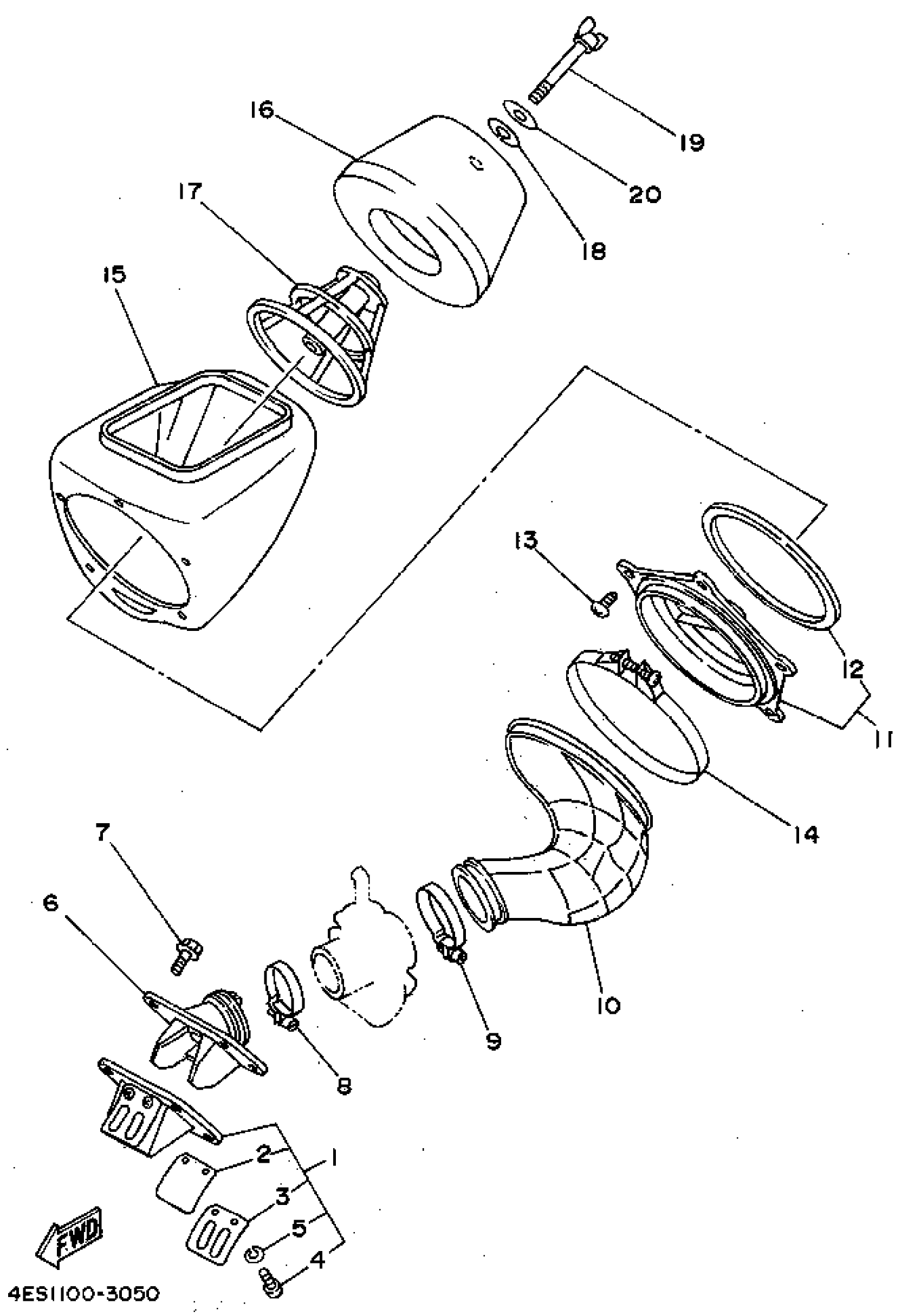

Yamaha YZ80F1 (YZ80F1) 1994 INTAKE Diagram

REED VALVE ASSY

4ES-13610-00-00

$178.99

REED, VALVE

4ES-13613-00-00

$20.99

STOPPER, REED VALVE

4ES-13616-00-00

$13.49

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

WASHER, SPRING

92990-03100-00

$8.49

JOINT, CARBURETOR

4ES-13565-00-00

Unavailable

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

CLAMP HOSE 304144550000

90460-51059-00

$16.99

JOINT, AIR CLEANER 1

4ES-14453-00-00

Unavailable

HOLDER, GUIDE

4ES-14459-00-00

Unavailable

SEAL

4ES-14462-00-00

$13.49

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

HOSE CLAMP ASSY(4ES)

90450-99064-00

$42.99

CASE,AIR CLEANER 1

4ES-14411-01-00

Unavailable

ELEMENT, AIR CLEANER

4ES-14451-01-00

Unavailable

GUIDE

4ES-14458-00-00

Unavailable

WASHER (4H7)

90209-06096-00

Unavailable

BOLT, WING

90122-06038-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable
