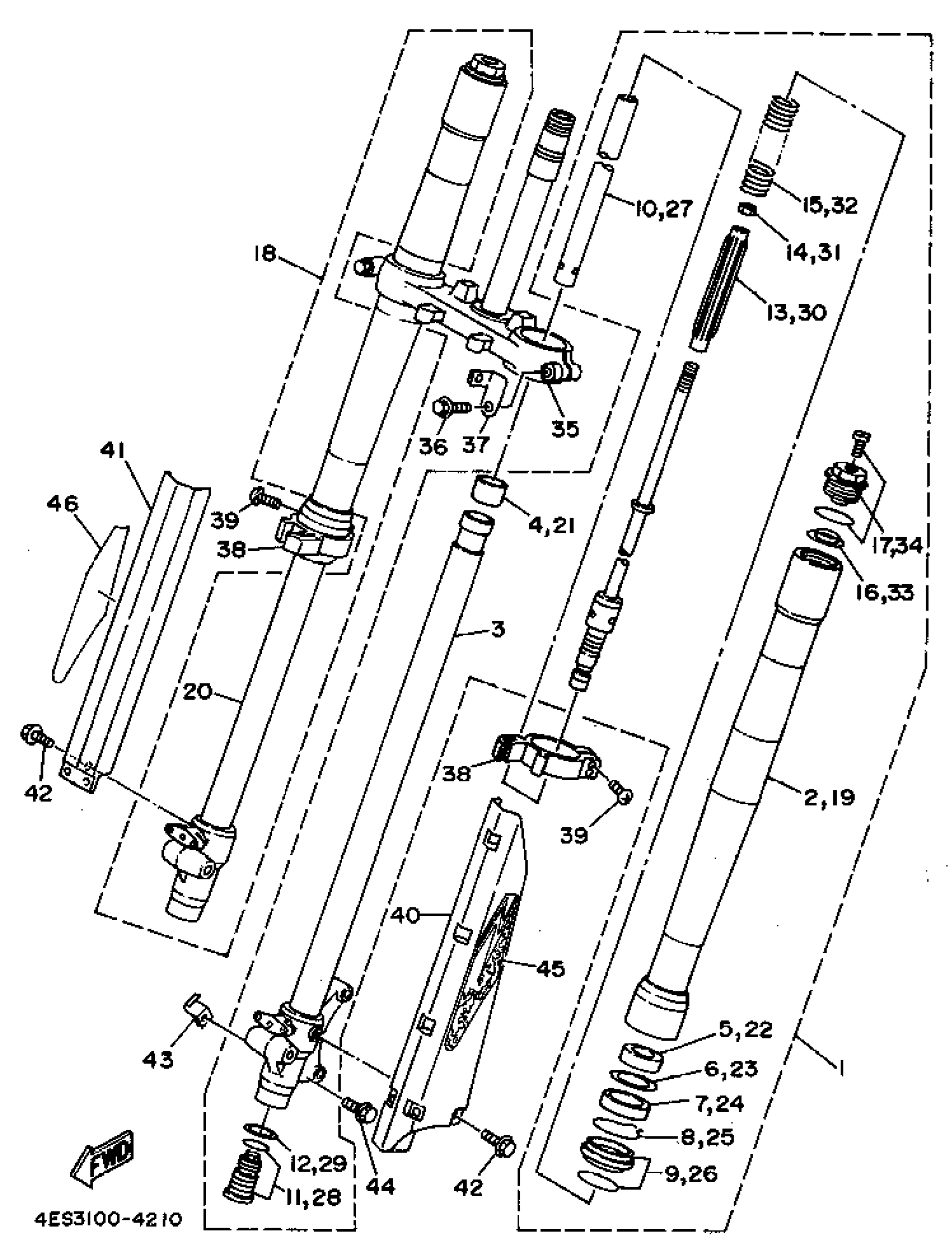

Yamaha YZ80F1 (YZ80F1) 1994 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

4ES-23102-00-00

Unavailable

2

. TUBE, OUTER (RIGHT)

4ES-23136-00-00

Unavailable

3

. INNER TUBE COMP 2

4ES-23120-00-00

Unavailable

4

. PISTON, FRONT FORK

4ES-23171-00-00

Unavailable

5

METAL, SLIDE 1

4ES-23125-00-00

$28.99

6

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

7

OIL SEAL

4ES-23145-00-00

$22.99

8

RING, SNAP

4A1-23156-00-00

$5.49

9

SEAL, DUST

4ES-23144-00-00

$24.99

10

. CYLINDER COMP, FRONT FORK

4ES-23170-00-00

Unavailable

11

. VALVE COMP

4ES-2316A-00-00

Unavailable

12

GASKET

2HH-23158-L0-00

$10.99

13

SEAT, SPRING UPPER

4ES-23142-00-00

Unavailable

14

NUT

3XJ-23357-L0-00

$1.04

15

SPRING, FRONT FORK

4ES-23141-80-00

Unavailable

16

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

17

. BOLT, CAP

4ES-23111-00-00

Unavailable

18

FRONT FORK ASSY (R.H)

4ES-23103-00-00

Unavailable

19

. TUBE, OUTER (RIGHT)

4ES-23136-00-00

Unavailable

20

. INNER TUBE COMP 1

4ES-23110-00-00

Unavailable

21

. PISTON, FRONT FORK

4ES-23171-00-00

Unavailable

22

METAL, SLIDE 1

4ES-23125-00-00

$28.99

23

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

24

OIL SEAL

4ES-23145-00-00

$22.99

25

RING, SNAP

4A1-23156-00-00

$5.49

26

SEAL, DUST

4ES-23144-00-00

$24.99

27

. CYLINDER COMP, FRONT FORK

4ES-23170-00-00

Unavailable

28

. VALVE COMP

4ES-2316A-00-00

Unavailable

29

GASKET

2HH-23158-L0-00

$10.99

30

SEAT, SPRING UPPER

4ES-23142-00-00

Unavailable

31

NUT

3XJ-23357-L0-00

$1.04

32

SPRING, FRONT FORK

4ES-23141-80-00

Unavailable

33

SEAT, SPRING UPPER

4V4-23142-L0-00

Unavailable

34

. BOLT, CAP

4ES-23111-00-00

Unavailable

35

UNDER BRACKET COMP.

4ES-23340-00-00

Unavailable

36

BOLT, SMALL FLANGE

95024-10040-00

Unavailable

37

GUIDE, CABLE

4ES-2331E-00-00

Unavailable

38

PROTECTER GUIDE COMP., 1

4ES-2314F-00-00

Unavailable

39

SCREW, PAN HEAD

98517-04025-00

Unavailable

40

PROTECTER COMP., 1

5PA-2314H-L0-00

Unavailable

41

PROTECTER COMP., 2

5PA-2314J-L0-00

Unavailable

42

BOLT, FLANGE(3BM)

95024-06008-00

Unavailable

43

HOLDER, CABLE 1

4ES-23318-00-00

Unavailable

44

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

45

EMBLEM 1

4ES-2313B-11-00

Unavailable

46

EMBLEM 2

4ES-2313C-11-00

Unavailable
