1993 Yamaha YZ80E (YZ80E1) Starter Diagram

← All diagrams

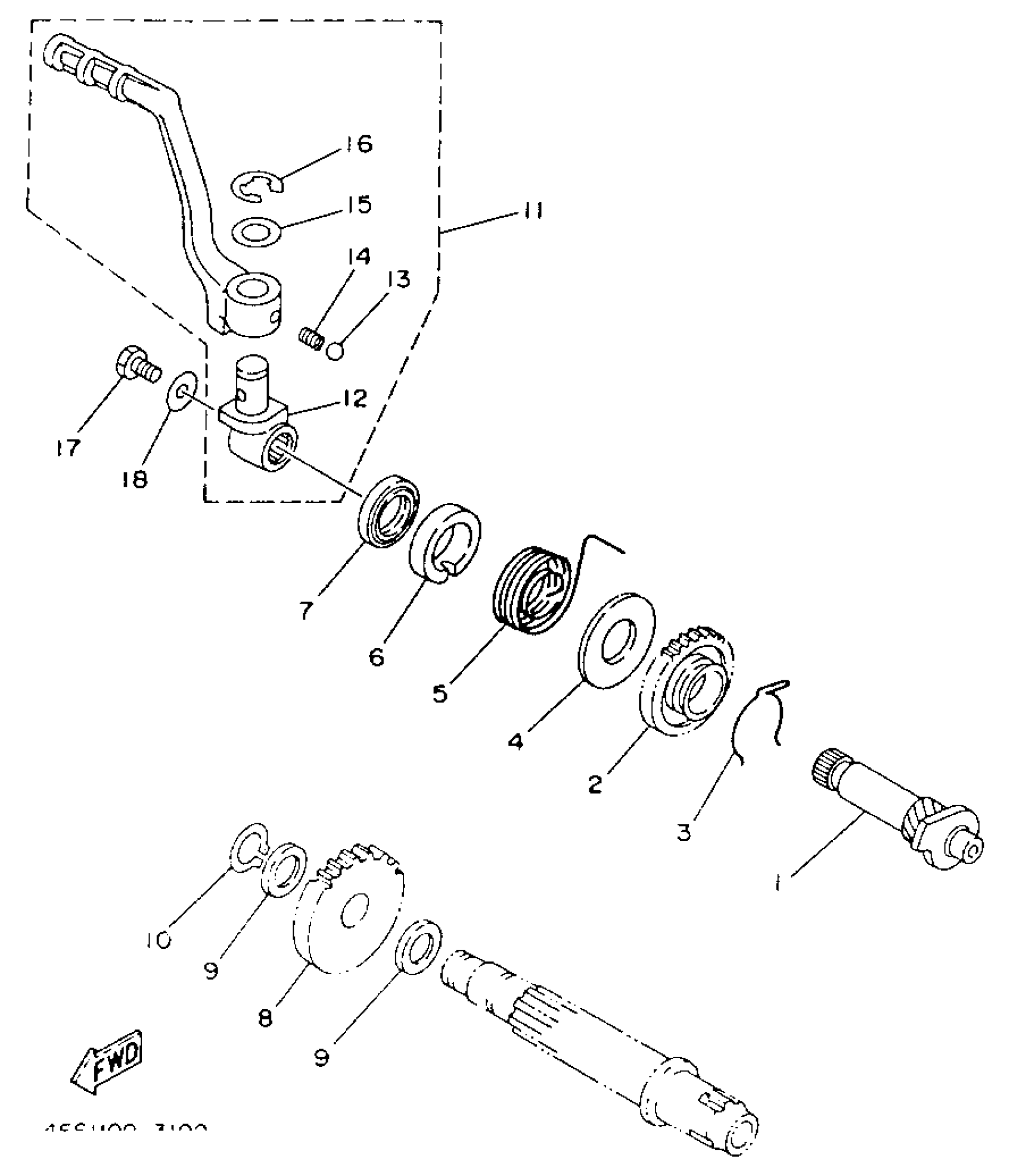

Find the part on the Starter diagram for your 1993 Yamaha YZ80E (YZ80E1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha YZ80E (YZ80E1) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY

4ES-15660-00-00

1
Out of stock

2

GEAR, KICK

4ES-15641-00-00

1
Out of stock

3

CLIP(4ES)

90468-23194-00

1

$7.91

In stock

4

WASHER, PLATE(2UV)

90201-176L4-00

1

$7.69

In stock

5

SPRING, TORSION(2UV)

90508-26750-00

1

$10.57

In stock

6

GUIDE, SPRING

4ES-15664-00-00

1

$26.75

In stock

7

OIL SEAL (15A)

93102-17263-00

1

$8.91

In stock

8

GEAR, KICK IDLE

4ES-15651-00-00

1
Out of stock

9

WASHER, PLATE (10X)

90201-124F8-00

1

$6.29

In stock

10

CIRCLIP(10Y)

99009-12400-00

1

$3.08

In stock

11

KICK CRANK ASSY

4ES-15620-00-00

—
Out of stock

12

. BOSS, KICK CRANK

4ES-15621-00-00

1
Out of stock

13

BALL (12R)

93507-32031-00

1
Out of stock

14

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

15

WASHER, PLATE (583)

90201-12631-00

1
Out of stock

16

CIRCLIP (137)

93430-08007-00

—

$6.17

In stock

17

BOLT, FLANGE(2UJ)

95024-06012-00

—
Out of stock

18

WASHER, PLATE

90201-06020-00

—

$6.28

In stock
