1993 Yamaha YZ80E (YZ80E1) Generator Diagram

← All diagrams

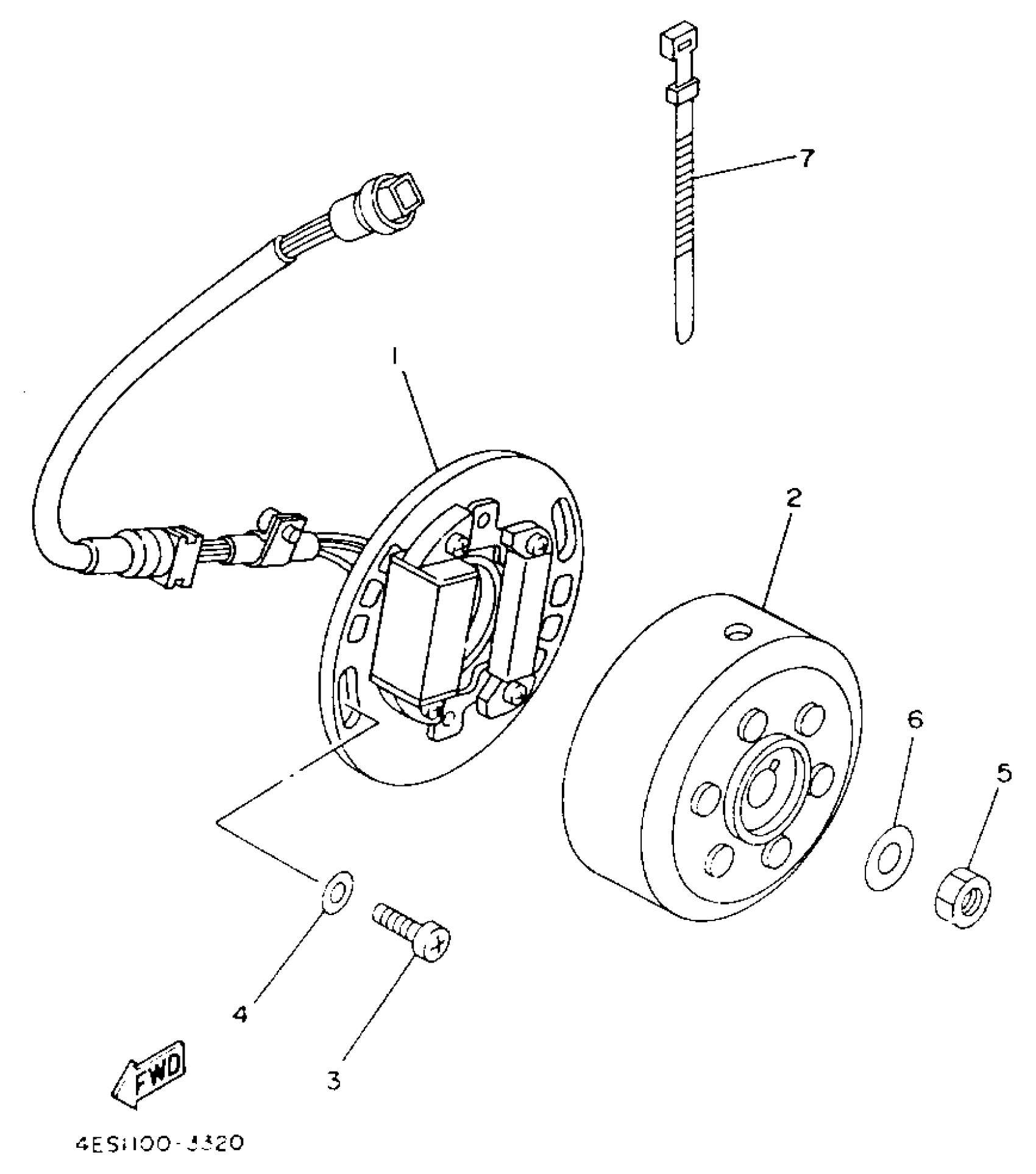

Find the part on the Generator diagram for your 1993 Yamaha YZ80E (YZ80E1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha YZ80E (YZ80E1) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

4ES-85510-00-00

1
Out of stock

2

ROTOR ASSEMBLY

4ES-85550-00-00

1
Out of stock

3

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

NUT(3BM)

95314-10600-00

1

$1.74

In stock

6

WASHER, PLATE (3L6)

90201-10774-00

1

$6.25

In stock

7

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock
