Partiron

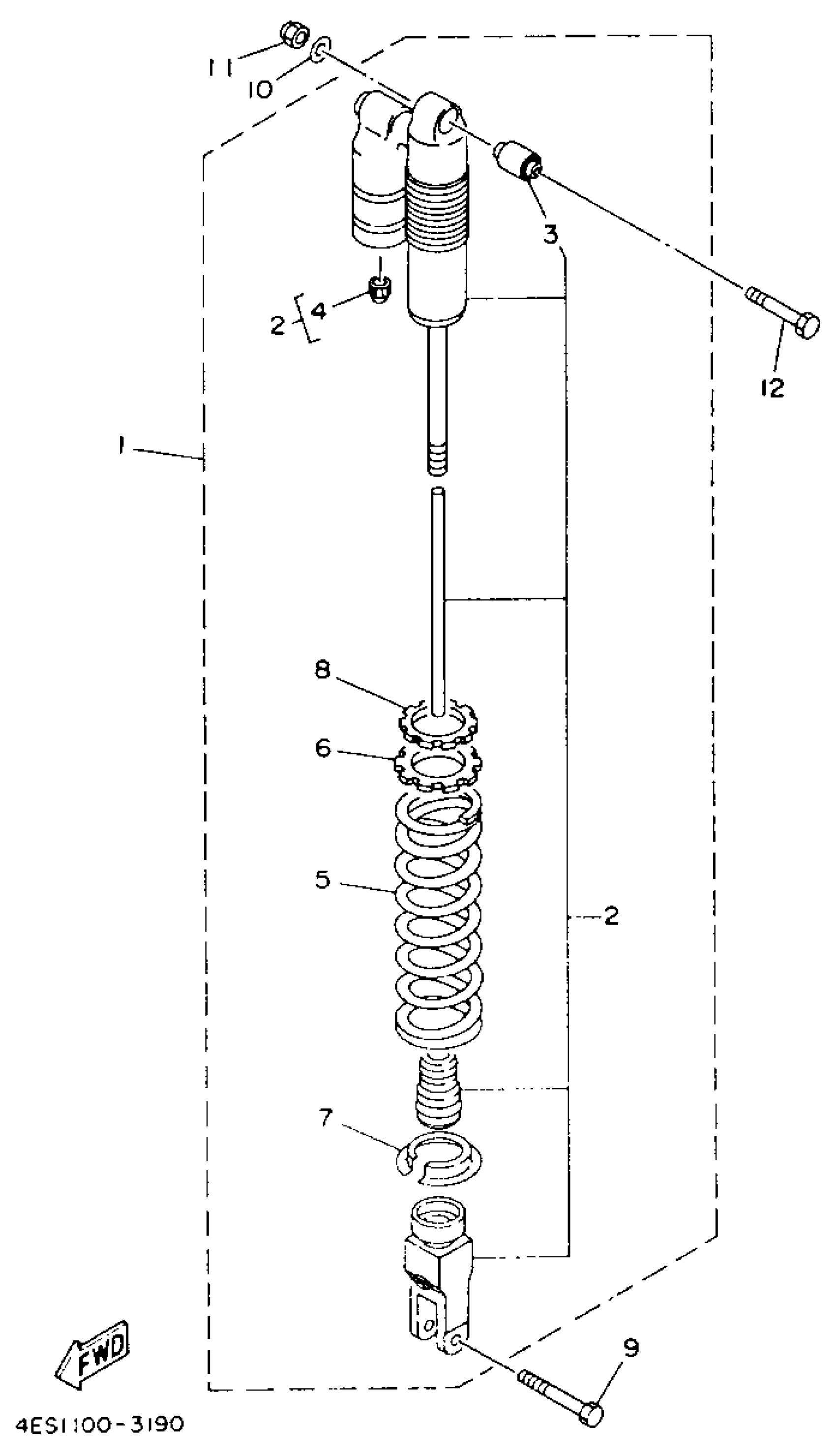

Yamaha YZ80E1 (YZ80E) 1993 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABSASY, RR

4ES-22210-40-00

Unavailable

2

DAMPER SUB ASSY

4ES-22201-50-00

Unavailable

3

BUSH, REAR SHOCK ABSORBER

4ES-22216-00-00

$33.06

4

CAP, AIR VALVE

58T-23184-L0-00

$3.80

5

. SPRING (K=46) (K=50)

4ES-22212-00-00

Unavailable

6

GUIDE, SPRING 1

4ES-22214-00-00

Unavailable

7

GUIDE, SPRING 1

3JD-22214-00-00

$14.88

8

NUT 1

4ES-22251-00-00

Unavailable

9

BOLT (22W)

90109-10729-00

$5.61

10

WASHER, PLATE

92990-10600-00

$2.57

11

NUT, SELF LOCKING (23X)

90185-10120-00

$4.57

12

BOLT, WASHER BASED(3XJ)

90105-10614-00

$8.69
