1993 Yamaha YZ80E (YZ80E1) Front Fork Diagram

← All diagrams

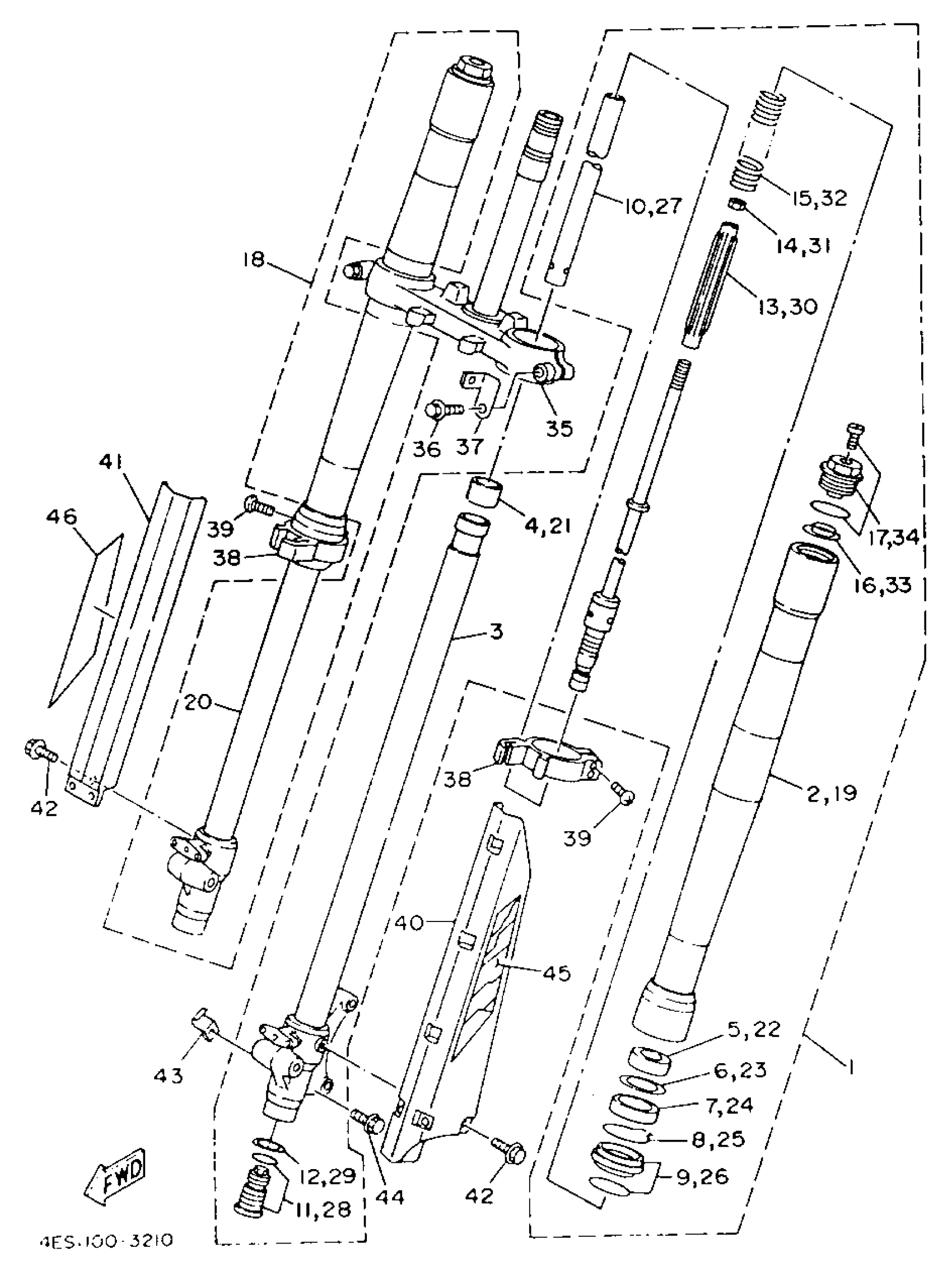

Find the part on the Front Fork diagram for your 1993 Yamaha YZ80E (YZ80E1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha YZ80E (YZ80E1) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

4ES-23102-00-00

—

$503.99

In stock

2

. TUBE, OUTER (RIGHT)

4ES-23136-00-00

1
Out of stock

3

. INNER TUBE COMP 2

4ES-23120-00-00

1
Out of stock

4

. PISTON, FRONT FORK

4ES-23171-00-00

1
Out of stock

5

METAL, SLIDE 1

4ES-23125-00-00

1
Out of stock

6

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

7

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

8

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

9

SEAL, DUST

4ES-23144-00-00

1

$19.51

In stock

10

. CYLINDER COMP, FRONT FORK

4ES-23170-00-00

1
Out of stock

11

. VALVE COMP

4ES-2316A-00-00

1
Out of stock

12

GASKET

2HH-23158-L0-00

1

$9.49

In stock

13

SEAT, SPRING UPPER

4ES-23142-00-00

—
Out of stock

14

NUT

3XJ-23357-L0-00

1

$0.72

In stock

15

SPRING, FRONT FORK

4ES-23141-80-00

—

$47.95

In stock

16

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

17

. BOLT, CAP

4ES-23111-00-00

1
Out of stock

18

FRONT FORK ASSY (R.H)

4ES-23103-00-00

—

$503.99

In stock

19

. TUBE, OUTER (RIGHT)

4ES-23136-00-00

1
Out of stock

20

. INNER TUBE COMP 1

4ES-23110-00-00

1
Out of stock

21

. PISTON, FRONT FORK

4ES-23171-00-00

1
Out of stock

22

METAL, SLIDE 1

4ES-23125-00-00

1
Out of stock

23

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

24

OIL SEAL

4ES-23145-00-00

1

$18.57

In stock

25

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

26

SEAL, DUST

4ES-23144-00-00

1

$19.51

In stock

27

. CYLINDER COMP, FRONT FORK

4ES-23170-00-00

1
Out of stock

28

. VALVE COMP

4ES-2316A-00-00

1
Out of stock

29

GASKET

2HH-23158-L0-00

1

$9.49

In stock

30

SEAT, SPRING UPPER

4ES-23142-00-00

—
Out of stock

31

NUT

3XJ-23357-L0-00

1

$0.72

In stock

32

SPRING, FRONT FORK

4ES-23141-80-00

—

$47.95

In stock

33

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

34

. BOLT, CAP

4ES-23111-00-00

1
Out of stock

35

UNDER BRACKET COMP.

4ES-23340-00-00

1
Out of stock

36

BOLT, SMALL FLANGE

95024-10040-00

—

$3.38

In stock

37

GUIDE, CABLE

4ES-2331E-00-00

1
Out of stock

38

PROTECTER GUIDE COMP., 1

4ES-2314F-00-00

—
Out of stock

39

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

40

PROTECTER COMP., 1

5PA-2314H-L0-00

—
Out of stock

41

PROTECTER COMP., 2

5PA-2314J-L0-00

—
Out of stock

42

BOLT, FLANGE(3BM)

95024-06008-00

—
Out of stock

43

HOLDER, CABLE 1

4ES-23318-00-00

—
Out of stock

44

BOLT, FLANGE(2UJ)

95024-06016-00

—

$6.68

In stock

45

EMBLEM 1

4ES-2313B-01-00

1
Out of stock

46

EMBLEM 2

4ES-2313C-01-00

1
Out of stock
