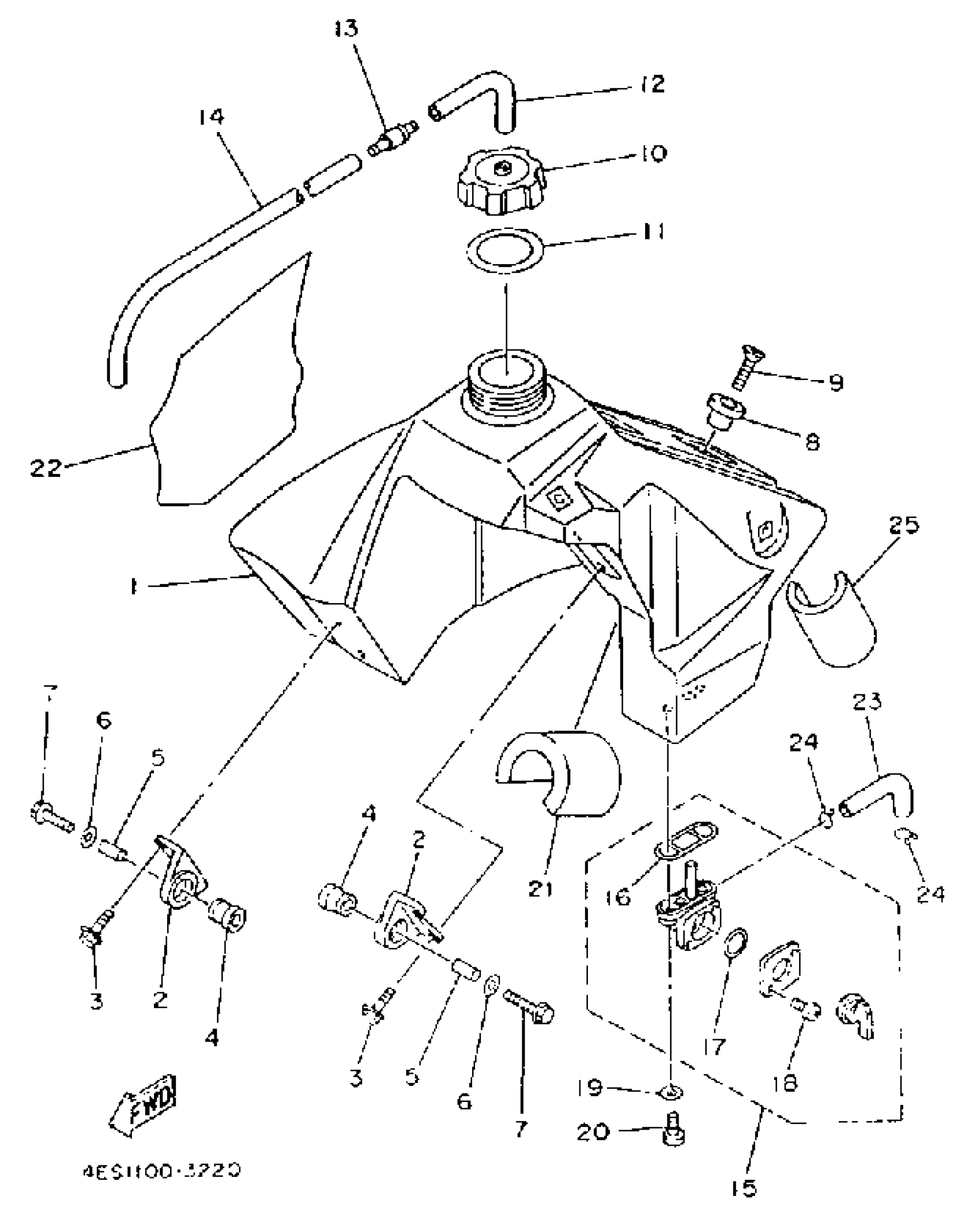

Yamaha YZ80E1 (YZ80E) 1993 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

4ES-24110-02-00

Unavailable

2

HOLDER, DAMPER

5XE-24144-00-00

$18.59

3

BOLT, FLANGE(2UJ)

95024-06016-00

$6.22

4

GROMMET(4AA)

90480-18549-00

$8.23

5

COLLAR 849833160000

90387-06027-00

$5.29

6

WASHER, PLATE (J10)

90201-06697-00

$5.75

7

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

8

BRACKET, SEAT

4EW-2412F-00-00

$11.85

9

SCREW, FLAT

98707-06025-00

$5.76

10

BODY, CAP

5X7-24611-01-00

Unavailable

11

PACKING, CAP

5X7-24612-00-00

Unavailable

12

HOSE (L420)

90445-092K1-00

$10.47

13

PIPE JOINT ASSY

3XJ-24380-00-00

$29.16

14

HOSE (L420)

90445-092K1-00

$10.47

15

FUEL COCK ASSY 1

2VN-24500-02-00

$33.36

16

O-RING

4X8-24512-00-00

Unavailable

17

SEAL, COCK

3AJ-24534-01-00

Unavailable

18

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

SCREW 256241430000

90149-06011-00

Unavailable

21

DAMPER, LOCATING 3

3Y0-24183-00-00

Unavailable

22

EMBLEM 1

4ES-24161-00-00

Unavailable

23

PIPE, FUEL 1

4ES-24311-10-00

Unavailable

24

CLIP

90467-100A1-00

Unavailable

25

DAMPER

51L-28371-00-00

$7.49
