1993 Yamaha YZ80E (YZ80E1) Crankcase Diagram

← All diagrams

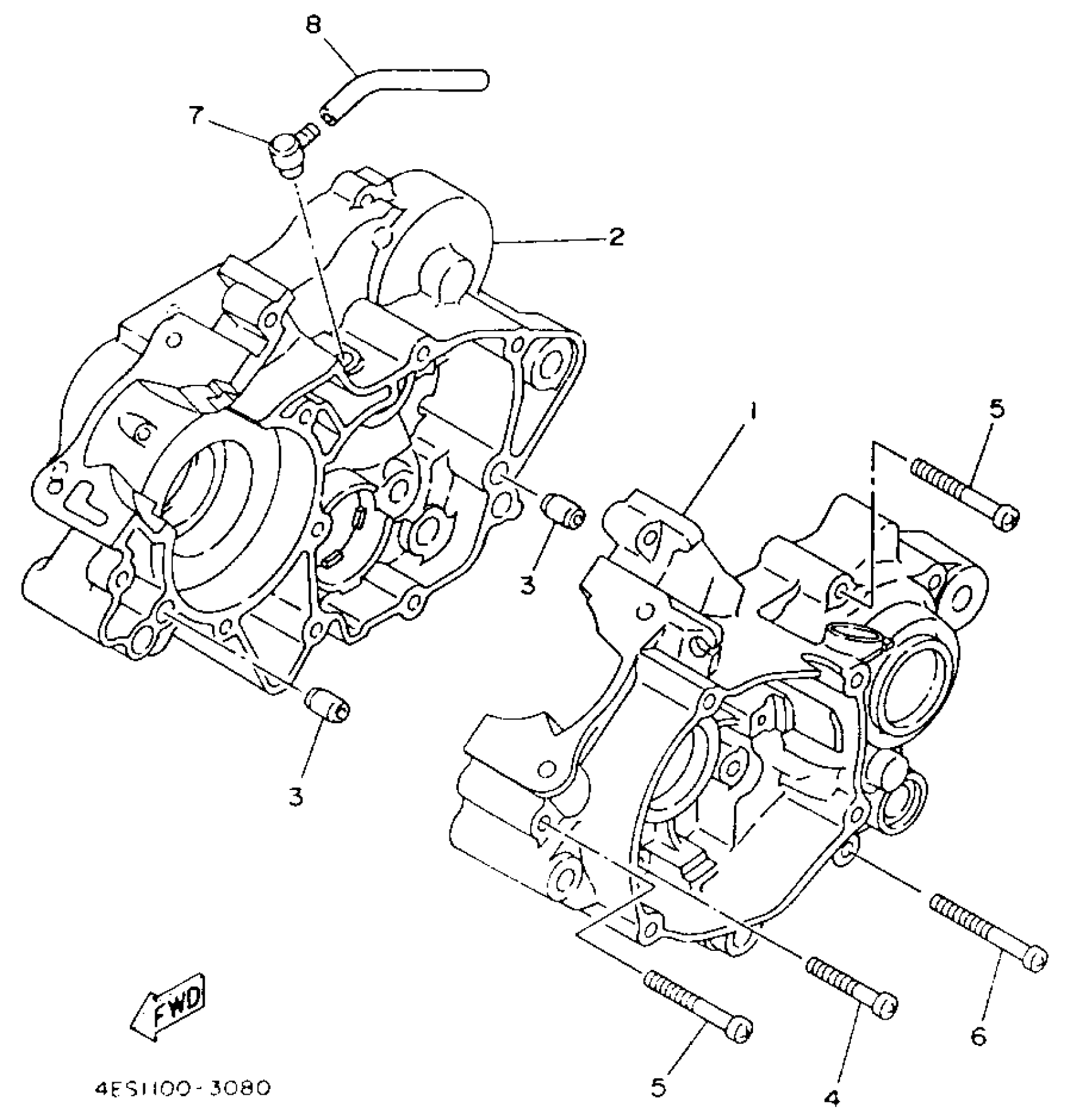

Find the part on the Crankcase diagram for your 1993 Yamaha YZ80E (YZ80E1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha YZ80E (YZ80E1) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

99999-03277-00

1
Out of stock

2

CRANKCASE 2

4ES-15121-02-00

1
Out of stock

3

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

4

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

5

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

6

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

7

BREATHER

583-15371-00-00

1
Out of stock

8

HOSE(3XP)

90446-07349-00

—
Out of stock
