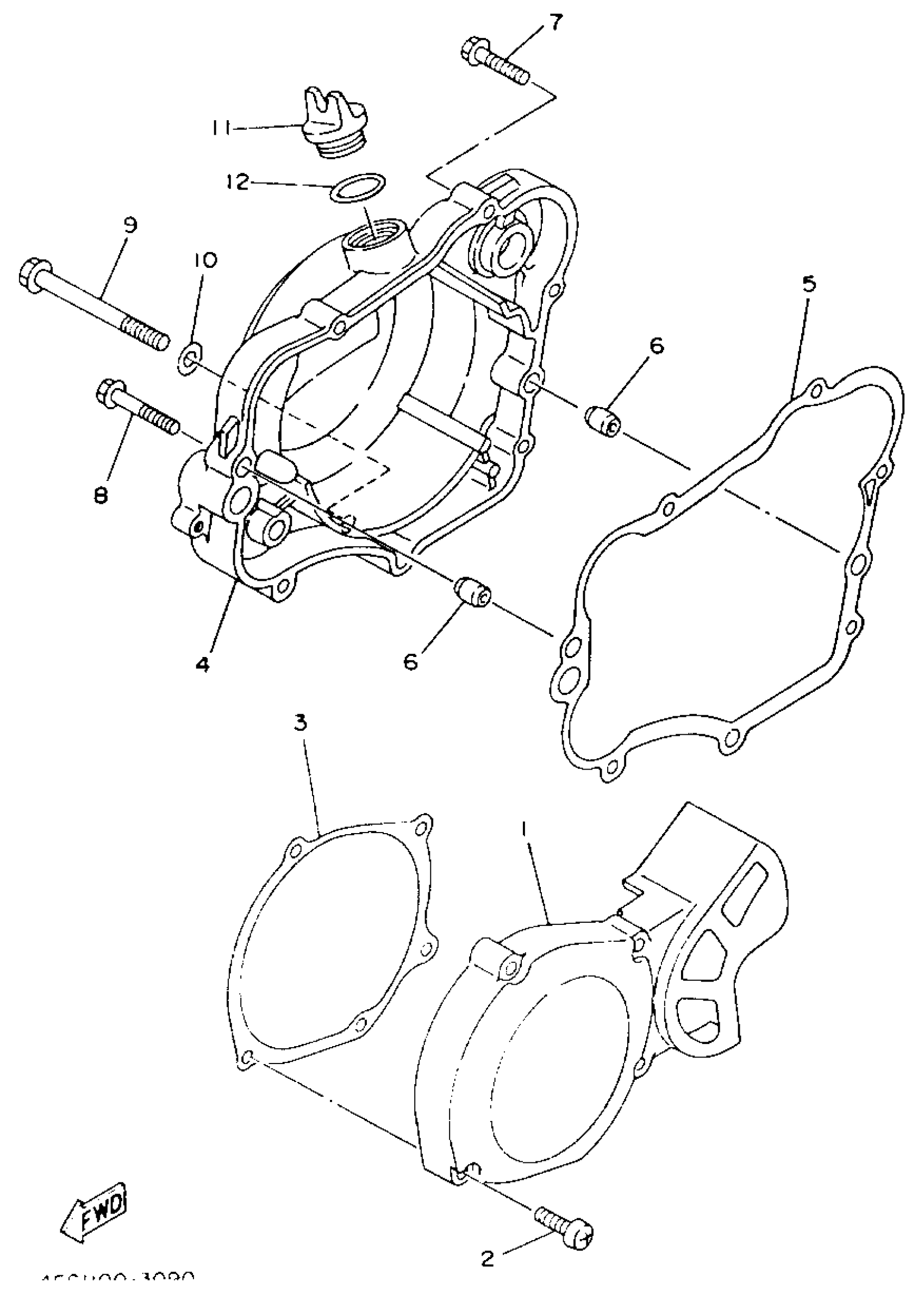

Yamaha YZ80E1 (YZ80E) 1993 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4ES-15411-02-00

$12.08

2

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

3

GASKET, CRANKCASE COVER 1

4ES-15451-00-00

Unavailable

4

COVER,CRANKCASE R

4ES-15421-01-00

Unavailable

5

GASKET, CRANKCASE COVER 2

4ES-15461-00-00

$23.48

6

PIN, DOWEL(3VD)

99530-10114-00

$2.13

7

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

8

BOLT, FLANGE(4KM)

95024-06040-00

$6.80

9

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

10

WASHER, PLATE 3411117500

90201-08087-00

$2.93

11

PLUG, OIL

3Y1-15363-10-00

$15.94

12

O-RING (646)

93210-19123-00

Unavailable
