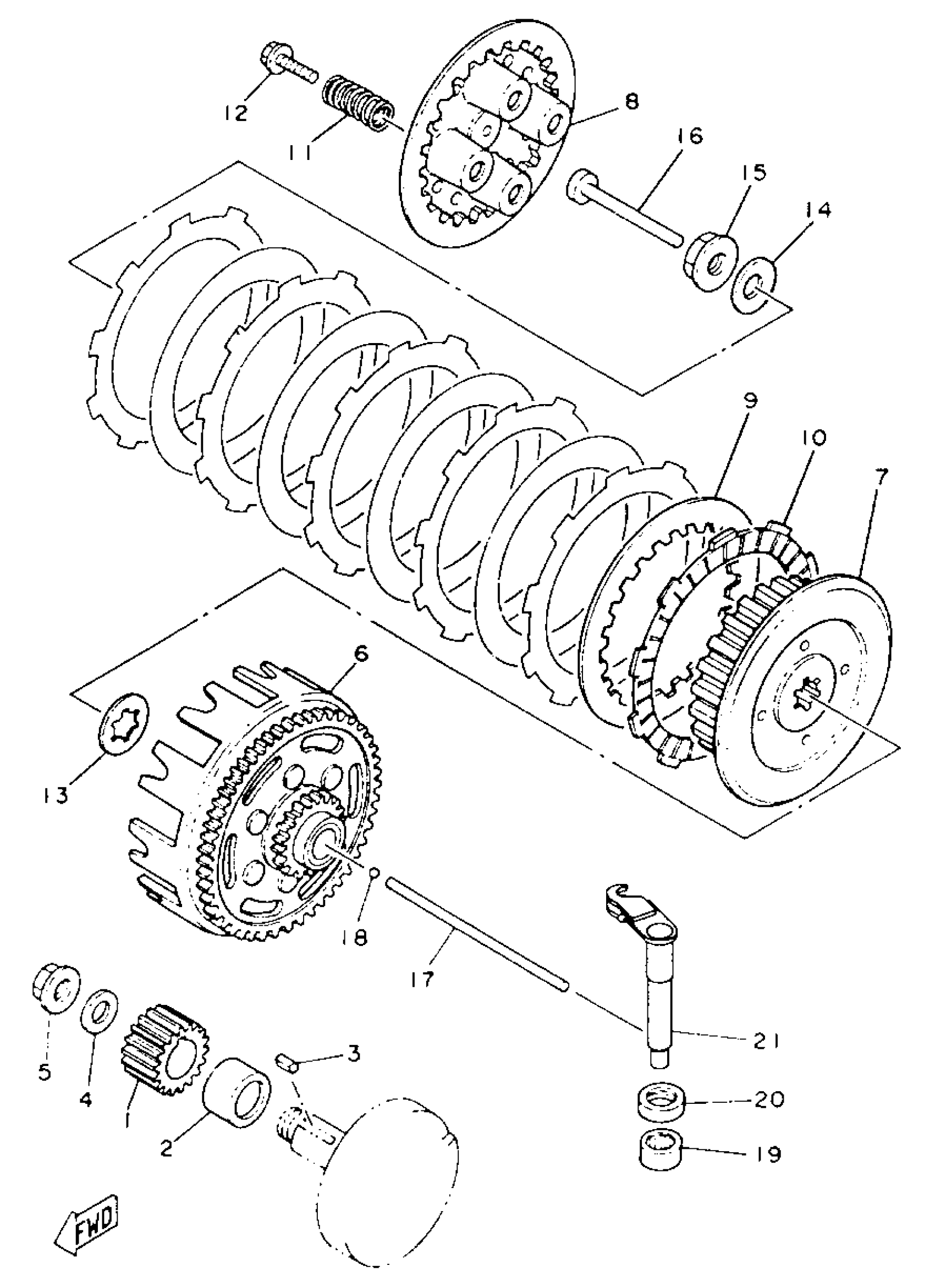

Yamaha YZ80E1 (YZ80E) 1993 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE
4ES-16111-00-00
Unavailable
4
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
6
PRI DRVN GEAR
4ES-16150-01-00
Unavailable
7
BOSS, CLUTCH
1LR-16371-00-00
Unavailable
8
PLATE, PRESSURE 1
1LR-16351-00-00
Unavailable
9
PLATE, CLUTCH 1
257-16324-10-00
Unavailable
14
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
16
ROD, PUSH 1
4ES-16356-00-00
Unavailable
17
ROD, PUSH 2
2X3-16357-00-00
Unavailable
18
BALL
93503-16003-00
Unavailable
19
BRG,CYL-CAL ROLLER 6G TM
93315-11206-00
Unavailable
20
OIL SEAL (4G0)
93102-12224-00
Unavailable
21
PUSH LEVER COMP.
4ES-16381-00-00
Unavailable
