Description

Price

1

GEAR, IMPELLER SHAF

1LR-12459-00-00

Unavailable

2

IMPELLER SHAFT ASSEMBLY

22W-12450-00-00

Unavailable

3

OIL SEAL

93103-10011-00

$46.99

4

BUSH (214-17843-00)

90381-08002-00

$11.49

5

WASHER, PLATE (2W5)

90201-10614-00

$8.49

6

PIN,DOWEL (137)

93603-22028-00

$3.76

7

CIRCLIP

99080-07600-00

Unavailable

8

WASHER PLATE 141181390000

90201-08085-00

$9.49

9

COVER, HOUSING

2VE-12422-00-00

Unavailable

10

GASKET, HSNG COVER 2

5X2-12428-10-00

Unavailable

11

PIN,DOWEL (603)

93604-10011-00

$8.49

12

GASKET (4V2)

90430-06166-00

$3.76

13

BOLT, FLANGE

95817-06020-00

$3.81

14

SCREW, PAN

98507-06060-00

$7.99

15

SCREW, PAN

98517-06020-00

$8.49

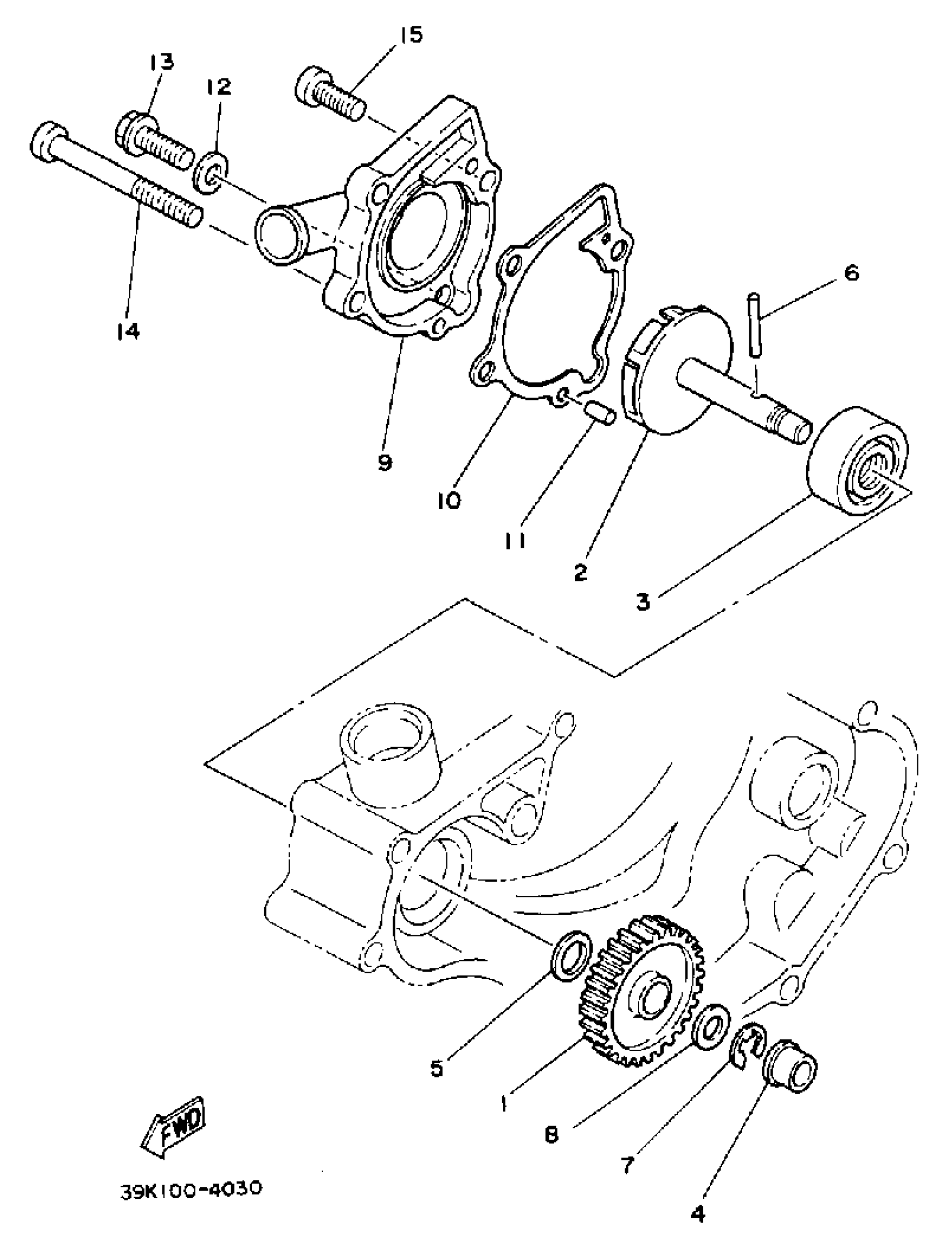

Yamaha YZ80D (YZ80D_E_F) 1977 WATER PUMP Diagram

GEAR, IMPELLER SHAF

IMPELLER SHAFT ASSEMBLY

OIL SEAL

BUSH (214-17843-00)

WASHER, PLATE (2W5)

PIN,DOWEL (137)

CIRCLIP

WASHER PLATE 141181390000

COVER, HOUSING

GASKET, HSNG COVER 2

PIN,DOWEL (603)

GASKET (4V2)

BOLT, FLANGE

SCREW, PAN

SCREW, PAN
