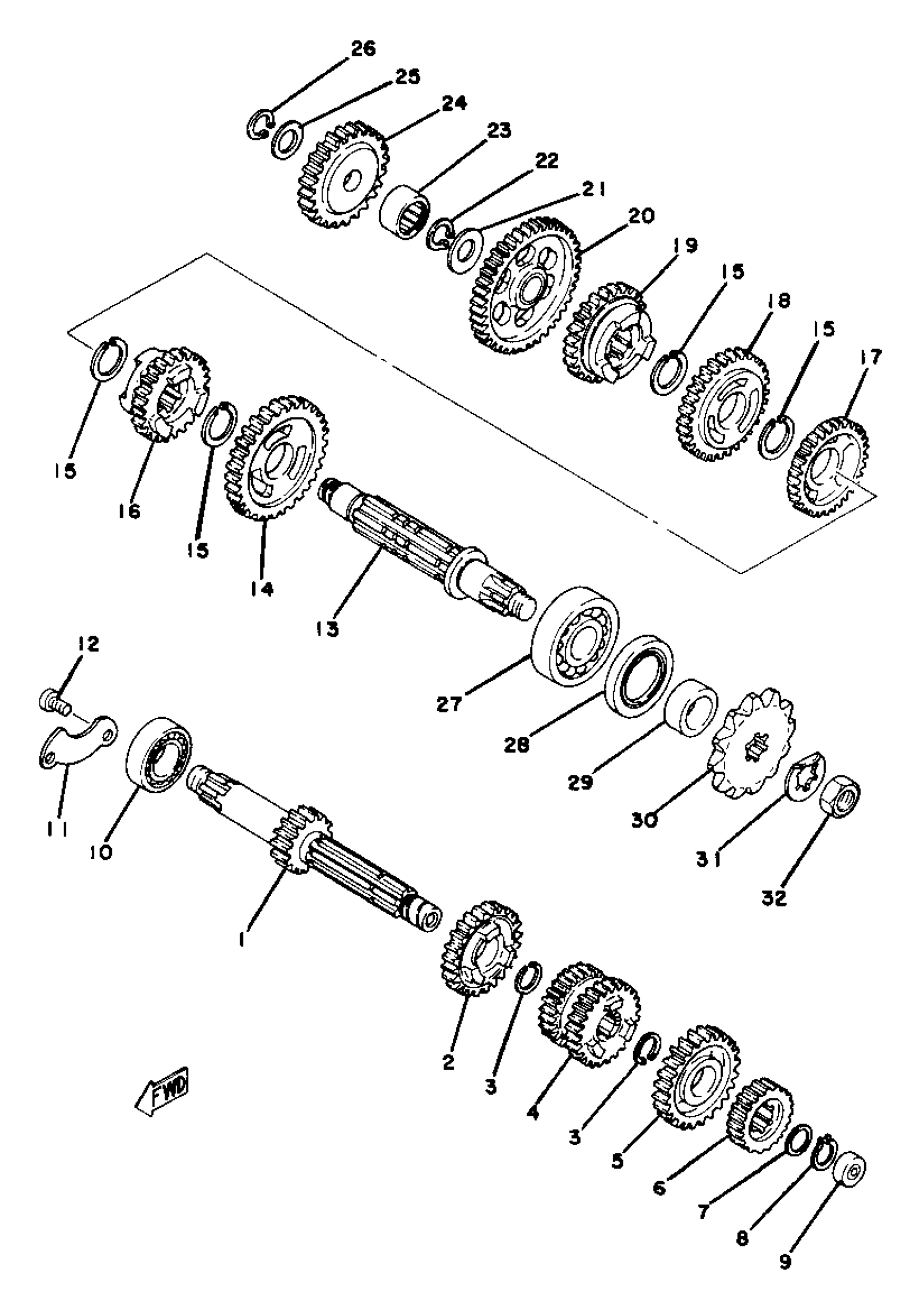

Yamaha YZ80D (YZ80D_E_F) 1977 TRANSMISSION YZ80F Diagram

#

Description
Price

1

AXLE, MAIN (15T)

2X6-17411-00-00

Unavailable

2

GEAR, 5TH PINION (25T)

2X6-17151-01-00

Unavailable

3

CIRCLIP (4V0)

93440-16089-00

$7.49

4

GEAR, 3RD PINION (21T/23T)

2X6-17131-00-00

Unavailable

5

GEAR, 6TH PINION (27T)

2X6-17161-01-00

Unavailable

6

GEAR, 2ND PINION

2X6-17121-00-00

Unavailable

7

WASHER, PLATE(55K)

90201-127J6-00

$8.49

8

CIRCLIP(10Y)

99009-12400-00

$3.59

9

OIL SEAL(1JY)

93102-04382-00

$14.99

10

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

11

PLATE, COVER

353-17471-00-00

Unavailable

12

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

13

AXLE, DRIVE

2X6-17421-00-00

Unavailable

14

GEAR, 2ND WHEEL (33T)

2X6-17221-00-00

Unavailable

15

CIRCLIP (525)

93410-20038-00

$3.76

16

GEAR, 6TH WHEEL (25T)

2X6-17261-00-00

Unavailable

17

GEAR, 4TH WHEEL (28T)

2X6-17241-00-00

Unavailable

18

GEAR, 3RD WHEEL (31T)

2X6-17231-00-00

Unavailable

19

GEAR, 5TH WHEEL (26T)

2X6-17251-00-00

Unavailable

20

GEAR, 1ST WHEEL (36T)

2J5-17211-00-00

Unavailable

21

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

22

CIRCLIP

93440-15012-00

Unavailable

23

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

24

GEAR, KICK IDLE

353-15651-00-00

Unavailable

25

WASHER (692)

90201-12M34-00

Unavailable

26

CIRCLIP(10Y)

99009-12400-00

$3.59

27

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

28

OIL SEAL (25X40X5-101)

93102-25017-00

Unavailable

29

COLLAR

90387-17137-00

Unavailable

30

SPROCKET, DRIVE (14T)

93821-14036-00

Unavailable

31

WASHER, LOCK

90215-13018-00

Unavailable

32

NUT LOCK (RD50)

90179-12181-00

Unavailable
