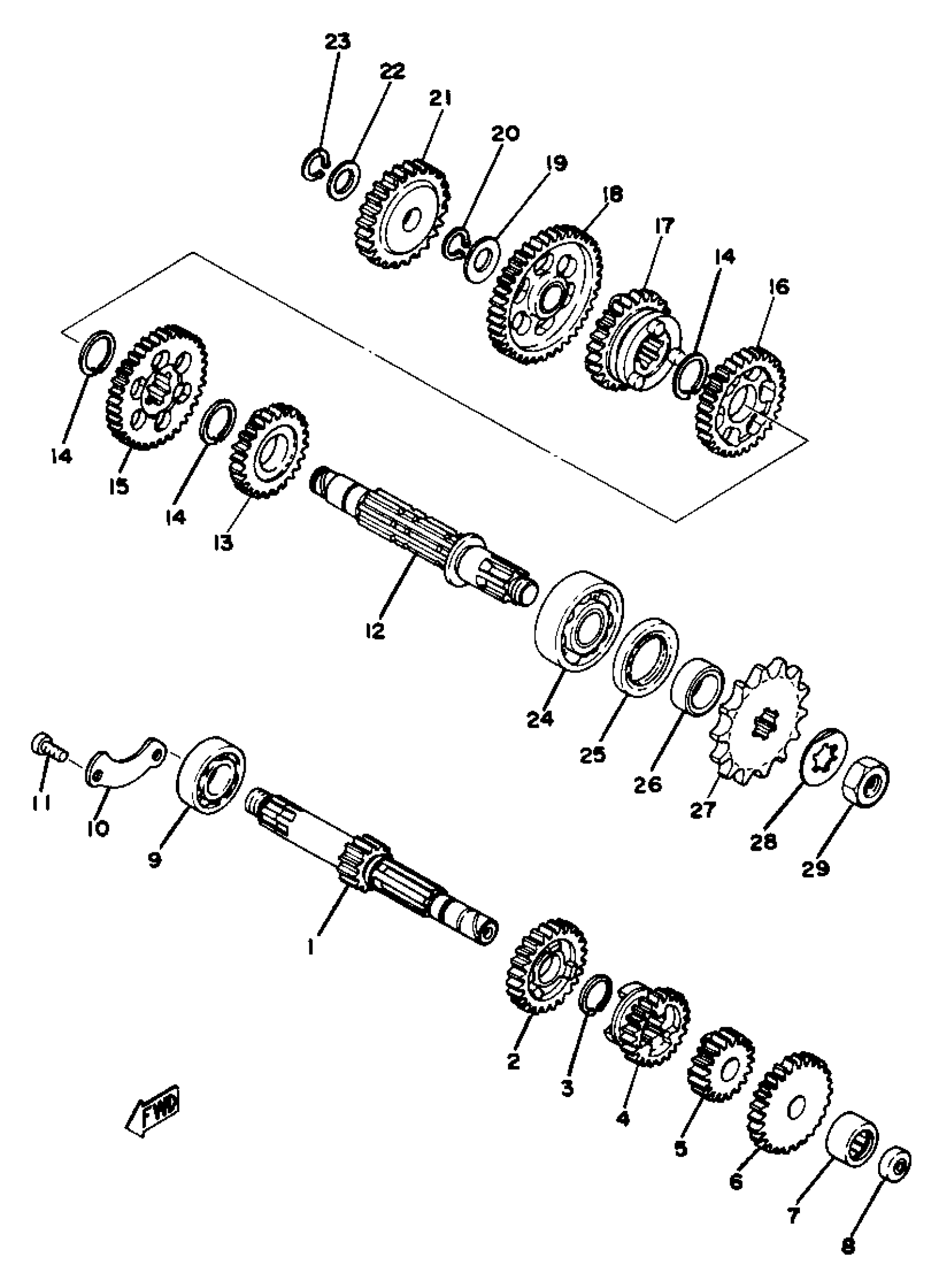

Yamaha YZ80D (YZ80D_E_F) 1977 TRANSMISSION YZ80E Diagram

AXLE, MAIN

353-17411-72-00

Unavailable

GEAR, 4TH PINION

(353-17141-72-00)

Unavailable

CIRCLIP (4V0)

93440-16089-00

$7.49

GEAR, 3RD PINION

353-17131-71-00

Unavailable

GEAR, 2ND PINION

353-17121-72-00

Unavailable

GEAR, 5TH PINION

2J5-17151-00-00

Unavailable

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

OIL SEAL(1JY)

93102-04382-00

$14.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

PLATE, COVER

353-17471-00-00

Unavailable

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

AXLE, DRIVE

2J5-17421-00-00

Unavailable

GEAR, 5TH WHEEL

2J5-17251-00-00

Unavailable

CIRCLIP (525)

93410-20038-00

$3.76

GEAR, 2ND WHEEL

2J5-17221-00-00

Unavailable

GEAR, 3RD WHEEL

2J5-17231-00-00

Unavailable

GEAR, 4TH WHEEL

(2J5-17241-00-00)

Unavailable

GEAR, 1ST WHEEL (36T)

2J5-17211-00-00

Unavailable

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

CIRCLIP

93440-15012-00

Unavailable

GEAR, KICK IDLE

353-15651-00-00

Unavailable

WASHER (692)

90201-12M34-00

Unavailable

CIRCLIP(10Y)

99009-12400-00

Unavailable

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

OIL SEAL (25X40X5-101)

93102-25017-00

Unavailable

COLLAR

90387-17137-00

Unavailable

SPROCKET, DRIVE (14T)

93821-14036-00

Unavailable

WASHER, LOCK

90215-13018-00

Unavailable

NUT LOCK (RD50)

90179-12181-00

Unavailable
