Description

Price

1

SEAL, DUST

164-23462-00-00

$7.99

2

RACE, BALL 1

B6E-23411-00-00

$8.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 2

B6E-23412-00-00

$13.49

5

RACE, BALL 2

BP2-23412-00-00

$7.49

6

BALL

93503-16003-00

$2.72

7

RACE, BALL 1

BP2-23411-00-00

$11.49

8

COVER, BALL RACE

122-23416-00-00

$7.99

9

NUT

90179-25004-00

$24.99

10

CROWN, HANDLE

(2X6-23435-00-33)

Unavailable

11

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

12

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

13

BOLT, FLANGE

95817-08035-00

$9.49

14

BOLT

97013-08045-00

Unavailable

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

NUT(6L2)

95333-08600-00

Unavailable

18

HOLDER, CABLE 2

(2X6-23319-01-00)

Unavailable

19

GUIDE, WIRE

1W1-23389-00-00

Unavailable

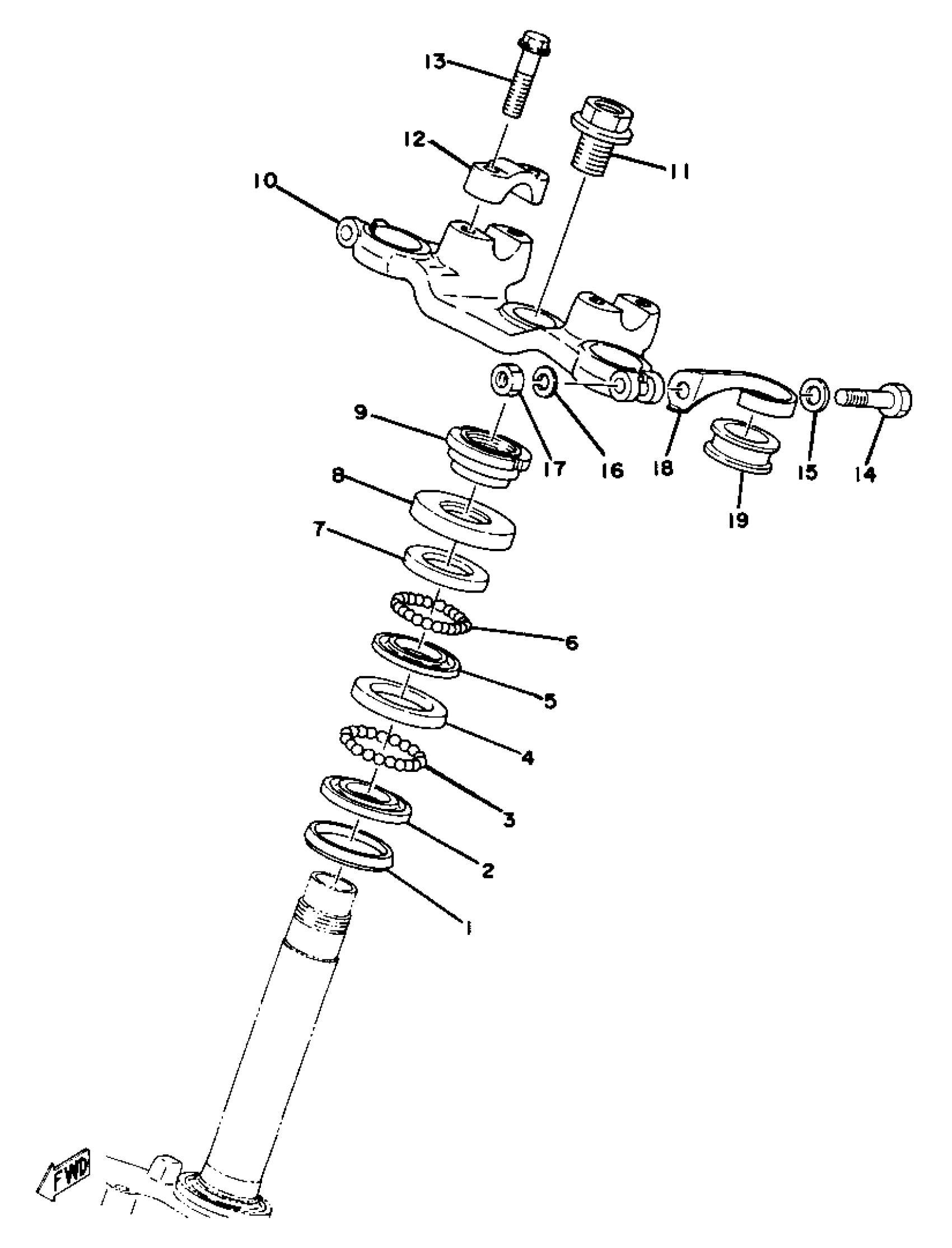

Yamaha YZ80D (YZ80D_E_F) 1977 STEERING YZ80F Diagram

SEAL, DUST

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER, BALL RACE

NUT

CROWN, HANDLE

BOLT, WASHER BASED HEAD (10V)

HOLDER, HANDLE UPPER

BOLT, FLANGE

BOLT

.. WASHER, PLATE

YBS67-8 WASHER, SPRING

NUT(6L2)

HOLDER, CABLE 2

GUIDE, WIRE
