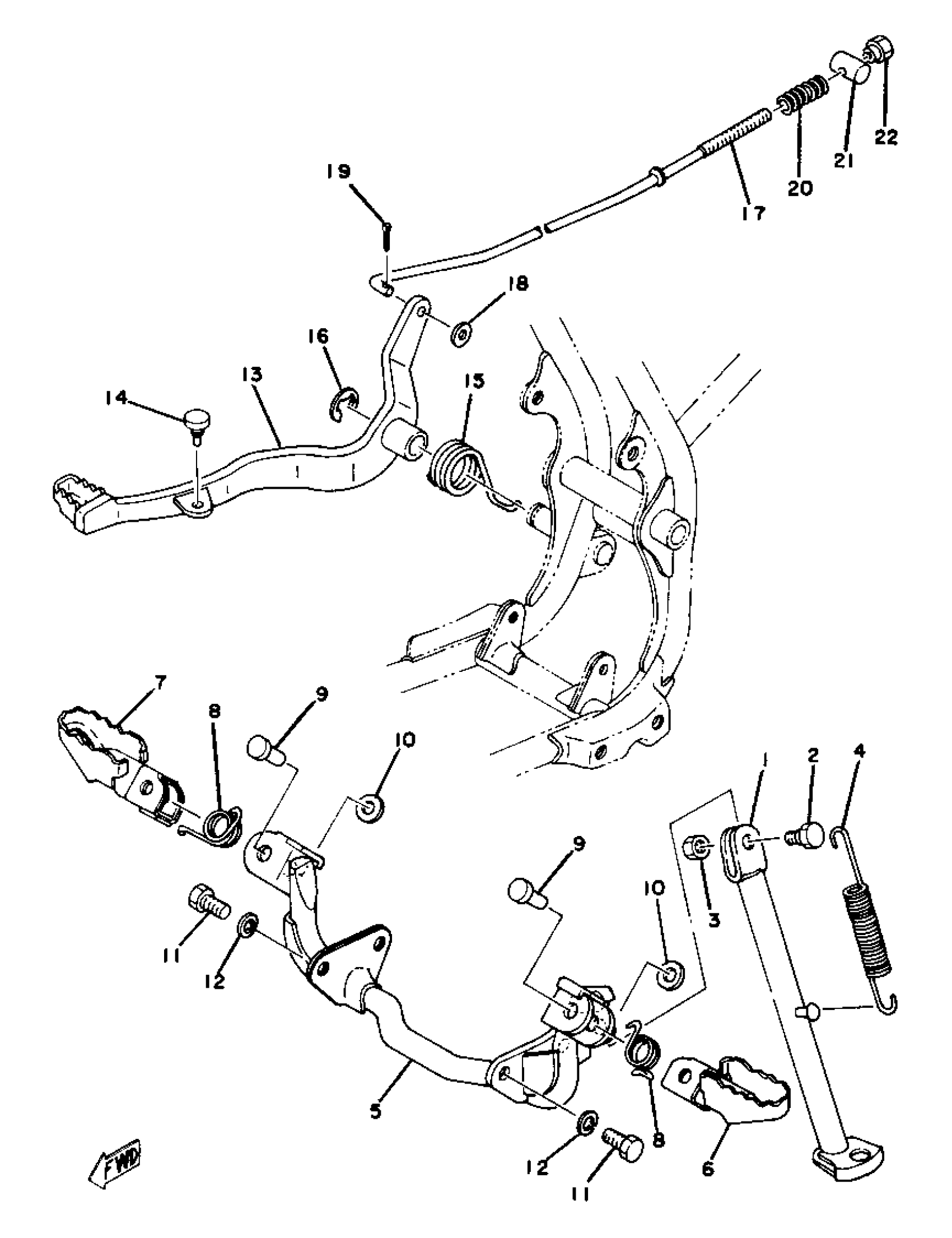

Yamaha YZ80D (YZ80D_E_F) 1977 STAND FOOTREST BRAKE PEDAL YZ80F Diagram

#

Description
Price

1

STAND, SIDE

2J5-27311-00-00

Unavailable

2

BOLT 1092537300

90109-08063-00

$10.49

3

. NUT

95380-08700-00

Unavailable

4

SPRING, TENSION (1L9)

90506-26270-00

$15.99

5

FOOTREST

(2X6-27451-03-00)

Unavailable

6

FOOTREST 1

(2J5-27411-00-00)

Unavailable

7

FOOTREST 2

(2J5-27421-00-00)

Unavailable

8

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

9

PIN (214-27418-00)

90243-08006-00

$12.49

10

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

11

BOLT(JA9)

90101-08691-00

$4.29

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

PEDAL, BRAKE

2X6-27211-03-R4

Unavailable

14

GROMMET

90480-15215-00

Unavailable

15

SPRING, TORSION

90508-32388-00

Unavailable

16

CIRCLIP (122)

93430-12008-00

Unavailable

17

ROD, BRAKE

2X6-27231-00-00

Unavailable

18

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

19

PIN, COTTER

91490-20025-00

Unavailable

20

SPRING, (180-27236-00)

90501-10245-00

Unavailable

21

PIN 1562723700

90249-12008-00

Unavailable

22

NUT (25K)

90179-06411-00

Unavailable
